Maintenance and Trouble Clearing
Replace RU Mounted on Wall
Bolt (M10x30)
Split Washer
Flat Washer
Flat Washer
Bolt (M10x40)
Insulating Bushing
Split Washer

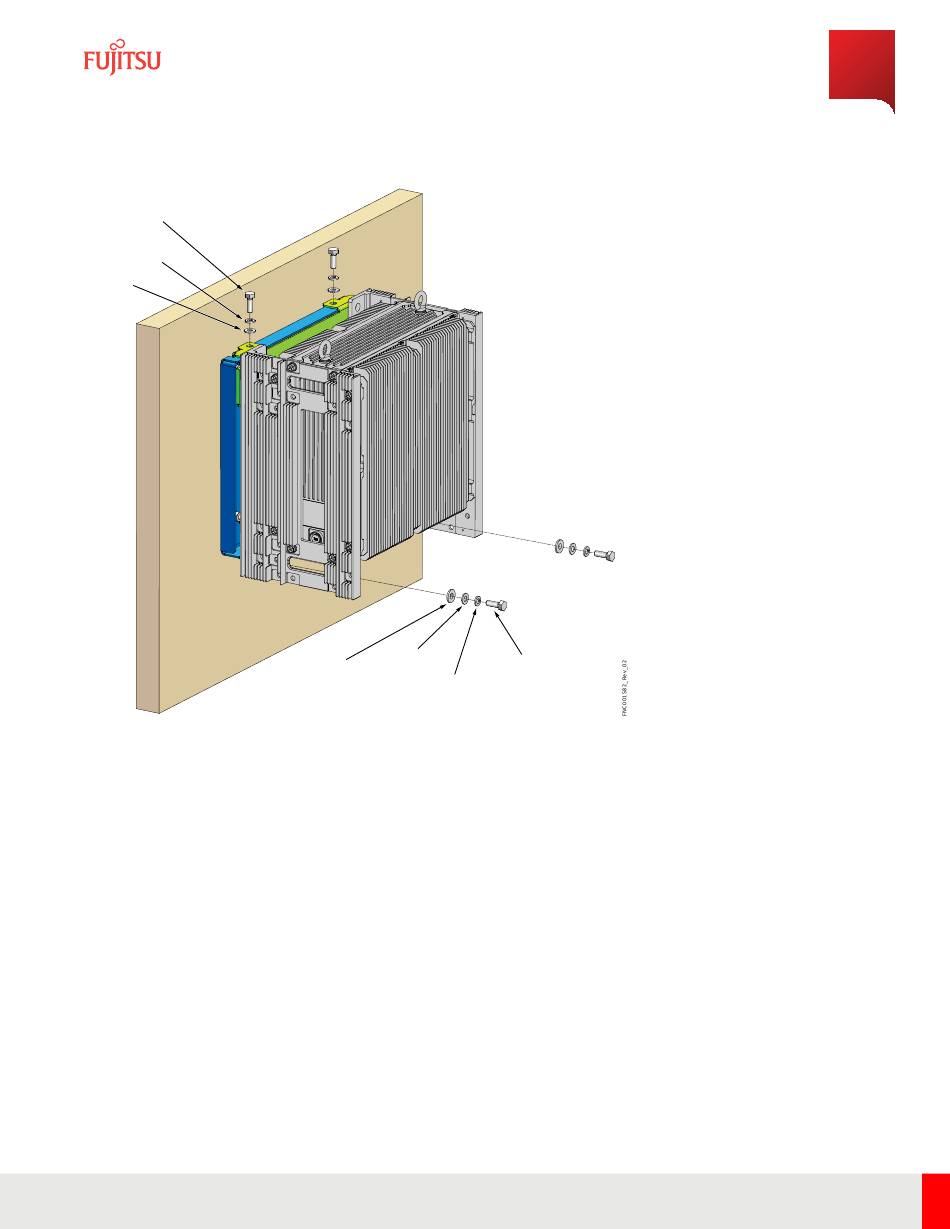

Figure 48
Remove M10 Bolts
Step 4
Unhook the RU from the Wall Mount Plate and place it somewhere safe.
Note: Use the eye bolts to hoist the RU.
