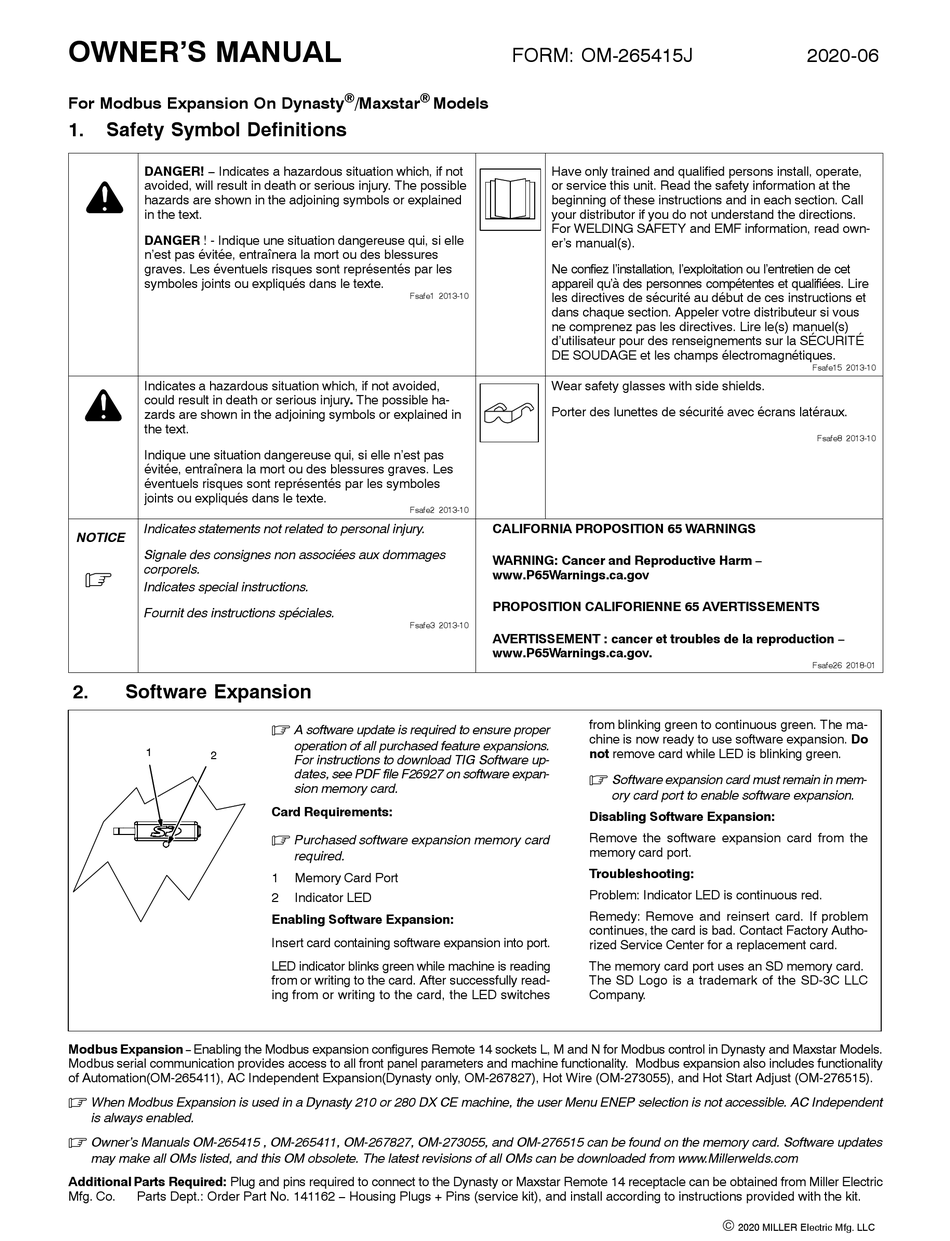

OWNER'S MANUAL
For Modbus Expansion On Dynasty
1.
Safety Symbol Definitions
DANGER! − Indicates a hazardous situation which, if not
avoided, will result in death or serious injury. The possible
hazards are shown in the adjoining symbols or explained
in the text.
DANGER ! - Indique une situation dangereuse qui, si elle
n'est pas évitée, entraînera la mort ou des blessures
graves. Les éventuels risques sont représentés par les
symboles joints ou expliqués dans le texte.
Indicates a hazardous situation which, if not avoided,
could result in death or serious injury. The possible ha-
zards are shown in the adjoining symbols or explained in
the text.
Indique une situation dangereuse qui, si elle n'est pas
évitée, entraînera la mort ou des blessures graves. Les
éventuels risques sont représentés par les symboles
joints ou expliqués dans le texte.
Indicates statements not related to personal injury.
NOTICE
Signale des consignes non associées aux dommages
corporels.
Indicates special instructions.
Fournit des instructions spéciales.
2.
Software Expansion
1
2
Modbus Expansion
Enabling the Modbus expansion configures Remote 14 sockets L, M and N for Modbus control in Dynasty and Maxstar Models.
Modbus serial communication provides access to all front panel parameters and machine functionality. Modbus expansion also includes functionality
of Automation(OM-265411), AC Independent Expansion(Dynasty only, OM-267827), Hot Wire (OM-273055), and Hot Start Adjust (OM-276515).
.
When Modbus Expansion is used in a Dynasty 210 or 280 DX CE machine, the user Menu ENEP selection is not accessible. AC Independent
is always enabled.
.
Owner's Manuals OM-265415 , OM-265411, OM-267827, OM-273055, and OM-276515 can be found on the memory card. Software updates
may make all OMs listed, and this OM obsolete. The latest revisions of all OMs can be downloaded from www.Millerwelds.com
Additional Parts Required: Plug and pins required to connect to the Dynasty or Maxstar Remote 14 receptacle can be obtained from Miller Electric
Mfg. Co.
Parts Dept.: Order Part No. 141162 − Housing Plugs + Pins (service kit), and install according to instructions provided with the kit.
)
)
/Maxstar
Models
Fsafe1 2013-10
Fsafe2 2013-10
Fsafe3 2013-10
.
A software update is required to ensure proper
operation of all purchased feature expansions.
For instructions to download TIG Software up-
dates, see PDF file F26927 on software expan-
sion memory card.
Card Requirements:
.
Purchased software expansion memory card
required.
1
Memory Card Port
2
Indicator LED
Enabling Software Expansion:
Insert card containing software expansion into port.
LED indicator blinks green while machine is reading
from or writing to the card. After successfully read-
ing from or writing to the card, the LED switches
FORM: OM-265415J
Have only trained and qualified persons install, operate,
or service this unit. Read the safety information at the
beginning of these instructions and in each section. Call
your distributor if you do not understand the directions.
For WELDING SAFETY and EMF information, read own-
er's manual(s).
Ne confiez l'installation, l'exploitation ou l'entretien de cet
appareil qu'à des personnes compétentes et qualifiées. Lire
les directives de sécurité au début de ces instructions et
dans chaque section. Appeler votre distributeur si vous
ne comprenez pas les directives. Lire le(s) manuel(s)
d'utilisateur pour des renseignements sur la SÉCURITÉ
DE SOUDAGE et les champs électromagnétiques.
Wear safety glasses with side shields.
Porter des lunettes de sécurité avec écrans latéraux.
CALIFORNIA PROPOSITION 65 WARNINGS
WARNING: Cancer and Reproductive Harm −
www.P65Warnings.ca.gov
PROPOSITION CALIFORIENNE 65 AVERTISSEMENTS
AVERTISSEMENT : cancer et troubles de la reproduction −
www.P65Warnings.ca.gov.
from blinking green to continuous green. The ma-
chine is now ready to use software expansion. Do
not remove card while LED is blinking green.
.
Software expansion card must remain in mem-
ory card port to enable software expansion.
Disabling Software Expansion:
Remove the software expansion card from the
memory card port.
Troubleshooting:
Problem: Indicator LED is continuous red.
Remedy: Remove and reinsert card. If problem
continues, the card is bad. Contact Factory Autho-
rized Service Center for a replacement card.
The memory card port uses an SD memory card.
The SD Logo is a trademark of the SD-3C LLC
Company.
2020-06
Fsafe15 2013-10
Fsafe8 2013-10
Fsafe26 2018-01
©
2020 MILLER Electric Mfg. LLC
