Miller Electric Deltaweld Series Specification Sheet

Miller Electric Deltaweld Series Specification Sheet

Mig welding power source

Advertisement

Quick Links

Delta-Fab
Industrial Applications
Heavy-to-Light Fabrication
Processes
Quick
MIG (GMAW)
Specs
with mild steel, flux cored,
stainless steel, and
aluminum wires
The Power of Blue
Run-in standard on 24A for better
arc-starting performance on a variety
of wires.
Material specific output studs
provide the flexibility to produce the
optimal arc characteristics for
aluminum, stainless steel and all
other materials.
Line voltage compensation keeps
welding parameters constant even
when input voltages change ±10%.
Eliminates need to change welding
parameters throughout the day.
Remote voltage control is standard.
Parameter adjustments can be made
in weld cell or at a remote location.
Solid-state weld contactor provides
longevity to match the ultra-durable
and reliable reputation of the Delta-Fab.
Large output voltage range provides
more flexibility on a variety of wire
diameters. Also aids operator with
voltage losses that occur when operating
long distances from power source.
115 VAC duplex receptacle provides
15 amps of auxiliary power.
System
Delta-Fab
Input Power
3-Phase, 230/460/575 V
Rated Output
375 A at 100% Duty Cycle
450 A at 60% Duty Cycle
Voltage
10 – 45 V
Weight
374 lb (170 kg)
.
®
Welder is warranted for 3 years, parts and labor.
Original main power rectified parts are warranted for 5 years.
Miller Electric Mfg. Co.
Equipment Sales US and Canada
An Illinois Tool Works Company
Phone: 866-931-9730
1635 West Spencer Street
FAX: 800-637-2315
Appleton, WI 54914 USA
International Phone: 920-735-4554
International FAX: 920-735-4125

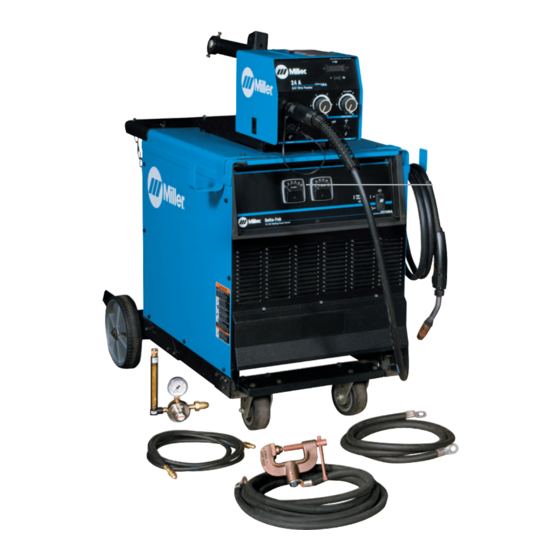

24A Wire Feeder
Input Power
Electrode Wire Diameter Capacity
.023– 3/32 in (0.08 – 2.4 mm)
Wire Speed
Remote Voltage Control
Weight
NEW! MIG Power Source Solutions
See option and package
descriptions on page 3.
Delta-Fab
MIGRunner
Issued Nov. 2009 • Index No. DC/15
MIG Welding

Power Source

24 VAC / 7 A
75 – 750 IPM (1.9 – 19 m/min)
Standard
40 lb (18 kg)
Four-Drive-Roll feeding system with
independent tension control handles
small and large diameter wires. (Drive
rolls and guides ordered separately.)
Large analog volt and ammeters for
easy viewing.
14-pin receptacle provides quick,
direct connection to wire feeders and
accessories.
Auto Remote Sense
automatically
selects remote control requirements
through the 14-pin receptacle.
Eliminates switches and confusion
for the operator.
14-pin select is easy to set up with
no external switches to put in the
wrong position.
Thermal overload protection
auto matically shuts down the system
to prevent high repair costs.
System
®
Package shown
Web Site
www.MillerWelds.com

Advertisement
