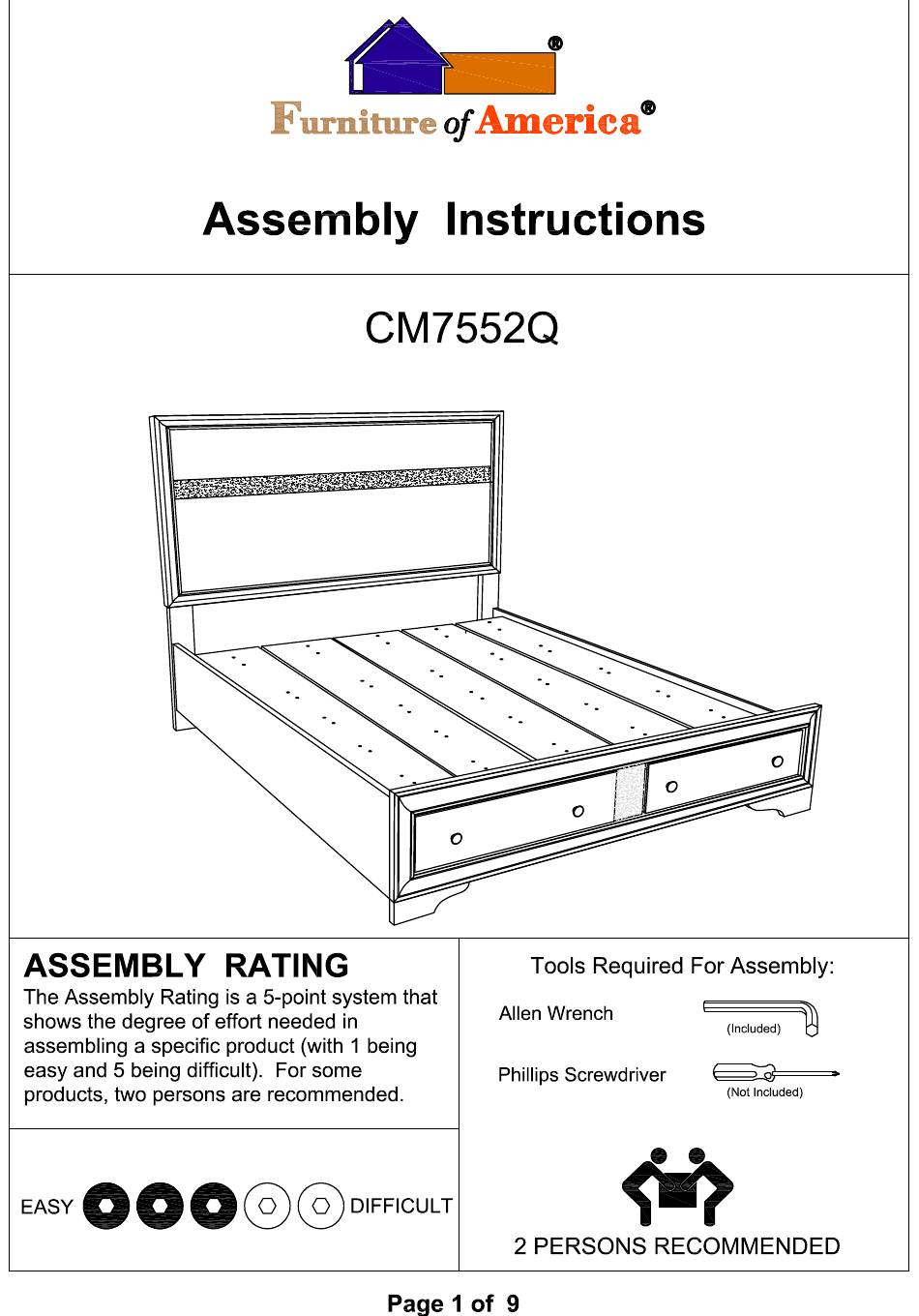

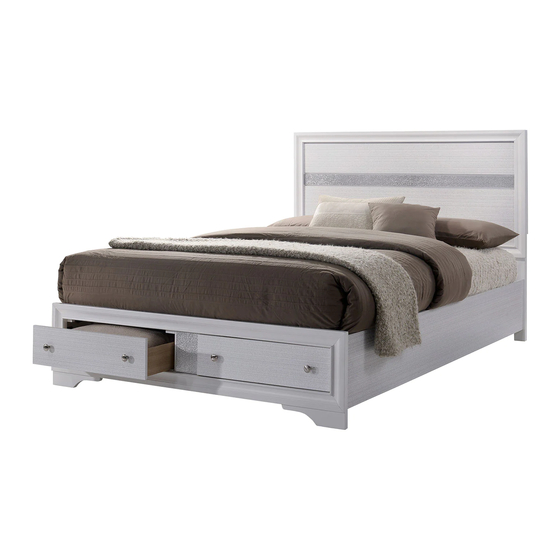

- Page 1 For more information contact our team: service.ec@foagroup.com Rev: 18-04-16...
- Page 4 Prepare 6 bolts assembly by inserting lock washer (#B), then flat washer (#C) onto bolts (#A). Align HB legs (#3R/L) to the holes of the headboard (#1). Secure by using bolts (#A). 1) Loosen the bolts attached to headboard (#1) and footboard (#2), then hook the side rails (#4) to the loosed bolts on the headboard (#1) and footboard (#2).
- Page 5 Align center slat drawer (#5) to the side rails (#4), then secure by using screws (#K). Align support leg (#9) to the hole of the center slat drawer (#5), then adjust leveler of the support leg (#9) according to ground level.
- Page 6 Prepare 2 bolts assembly by inserting lock washer (#G), then flat washer (#H) onto bolts (#E). Align drawer support rail (#10) to the holes of the footboard (#2) and center slat (#5). Secure drawer rail (#10) to center slat (#5) by using bolts (#E), then secure drawer rail (#10) to footboard (#2) by using screws (#K).
- Page 7 Align slat support (#8) to the hole of the bed slat without marking (#6). Secure by using bolts (#F). Align slat support (#8) to the holes of the bed slat with marking (#7). Secure by using bolts (#F). Align slats (#6,7) to the side rails (#4).
- Page 8 Secure slats (#6,7) by using screws (#K). Align concealed panel (#11) to the slats (#6,7). Secure by using screws (#L). Please see diagram in steps 10.
- Page 9 ASSEMBLY COMPLETED...
- Page 10 For more information contact our team: service.ec@foagroup.com Rev: 18-04-16...
- Page 13 Prepare 6 bolts assembly by inserting lock washer (#B), then flat washer (#C) onto bolts (#A). Align HB legs (#3R/L) to the holes of the headboard (#1). Secure by using bolts (#A). 1) Loosen the bolts attached to headboard (#1) and footboard (#2), then hook the side rails (#4) to the loosed bolts on the headboard (#1) and footboard (#2).
- Page 14 Align center slat drawer (#5) to the side rails (#4), then secure by using screws (#K). Align support leg (#9) to the hole of the center slat drawer (#5), then adjust leveler of the support leg (#9) according to ground level.
- Page 15 Prepare 2 bolts assembly by inserting lock washer (#G), then flat washer (#H) onto bolts (#E). Align drawer support rail (#10) to the holes of the footboard (#2) and center slat (#5). Secure drawer rail (#10) to center slat (#5) by using bolts (#E), then secure drawer rail (#10) to footboard (#2) by using screws (#K).
- Page 16 Align slat support (#8) to the hole of the bed slat without marking (#6). Secure by using bolts (#F). Align slat support (#8) to the holes of the bed slat with marking (#7). Secure by using bolts (#F). Align slats (#6,7) to the side rails (#4).
- Page 17 Secure slats (#6,7) by using screws (#K). Align concealed panel (#11) to the slats (#6,7). Secure by using screws (#L). Please see diagram in steps 10.
- Page 18 ASSEMBLY COMPLETED...
