BUILT-IN MICROWAVE OVEN INSTALLATION MANUAL

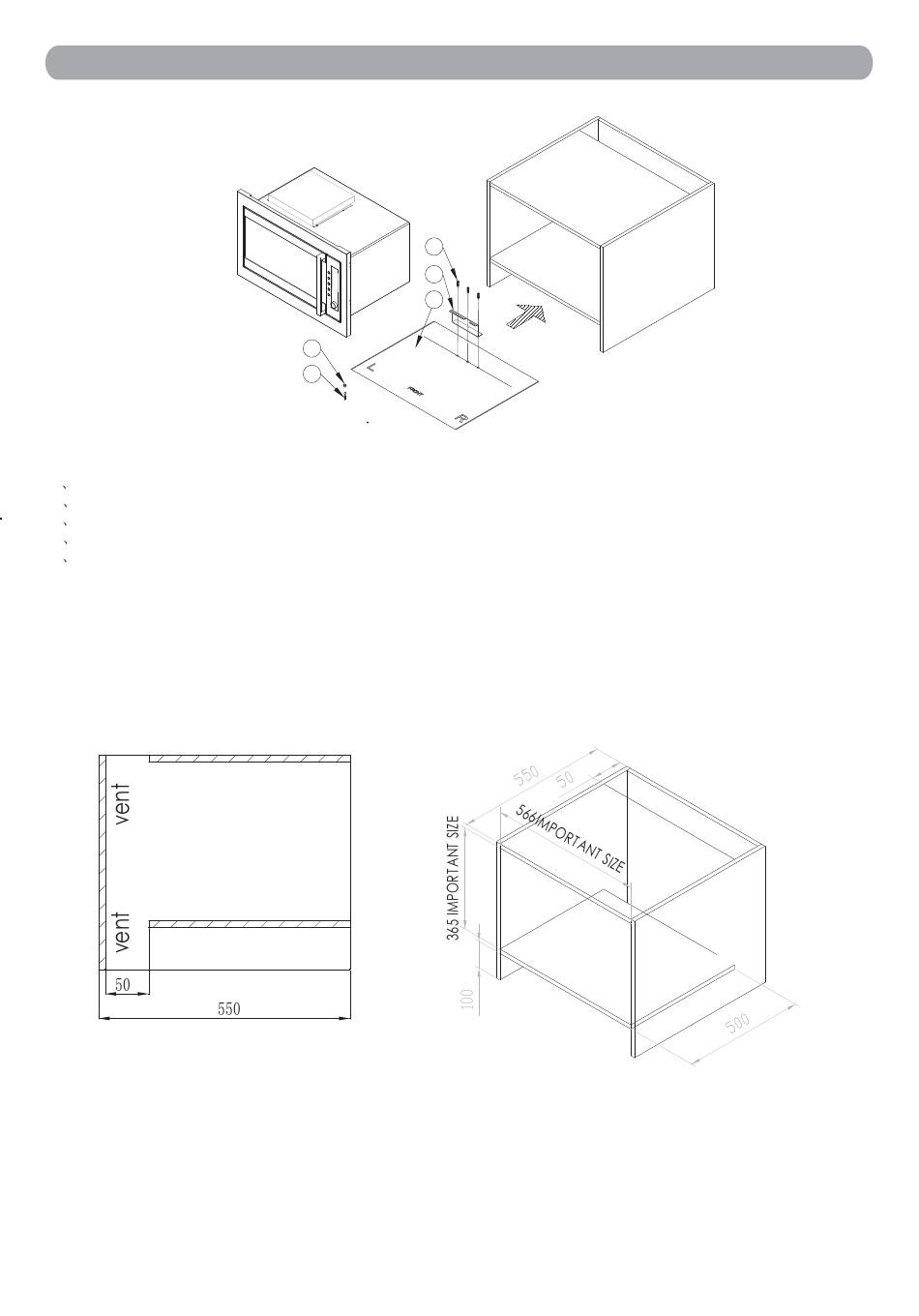

COMPONENTS
1 Plastic buckle setting pape r
2 orientation
3 bolt Ø4X10
4 screw cover
5 bolt Ø4X35
TRIM KIT SPECIFICA TIONS
Cavity dimensions
Width 566mm
Height 365mm
Depth 550mm
MICROWAVE OVEN CABINETRY
v e n t
MIROWAVE LOCATION
Cabinet measurement Requirements(illustrated above):
1. Cabinet's inner dimension in transverse direction is 566mm.
This is the minimum distance from the left batten to right batten. Do not alter
2. Cabinet's inner dimension in longitudinal direction is 365mm.
This is the minimum distance from the left batten to right batten. Do not alter
3. Cabinet's depth should be no less than 550mm.
4. Outside dimension of cabinet should be no less than 596mm,
as the frame length is 592mm.
5. Cabinet's board less than 15mm or 20mm thick.
3
2
1
4
5
1PCS
1PCS
3PCS
1PCS
1PCS
FRAME dimensions
Width 592mm
Height 376mm
Depth 20mm
.
.
