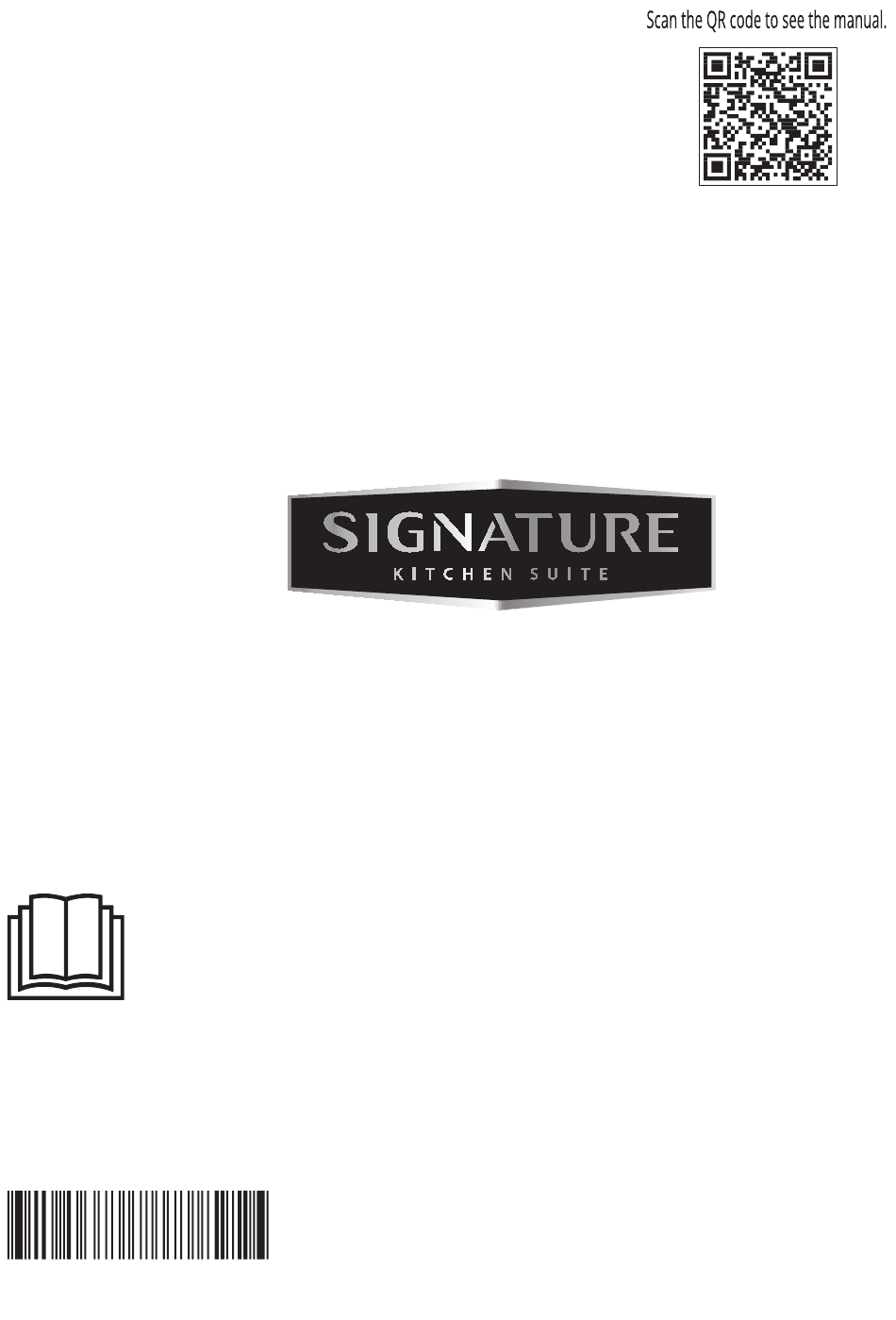

OWNER'S MANUAL
MICROWAVE OVEN
Before beginning installation, read these instructions carefully. This
will simplify installation and ensure that the product is installed
correctly and safely. Leave these instructions near the product after
installation for future reference.
ENGLISH
MFL72024201
Rev.00_103123
www.signaturekitchensuite.com/it
Copyright © 2023 Signature Kitchen Suite. All Rights Reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SKSLV2401S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Signature SKSLV2401S

Summary of Contents for Signature SKSLV2401S

  • Page 1 Before beginning installation, read these instructions carefully. This will simplify installation and ensure that the product is installed correctly and safely. Leave these instructions near the product after installation for future reference. ENGLISH www.signaturekitchensuite.com/it MFL72024201 Rev.00_103123 Copyright © 2023 Signature Kitchen Suite. All Rights Reserved.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS This manual may contain images or content that may be different from the model you purchased. This manual is subject to revision by the manufacturer. IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.........3 WARNING ......................3 CAUTION ......................8 CARING FOR THE ENVIRONMENT ..............12 INSTALLATION...

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE The following safety guidelines are intended to prevent unforeseen risks or damage from unsafe or incorrect operation of the appliance. The guidelines are separated into ‘WARNING’ and ‘CAUTION’ as described below.
  • Page 4 IMPORTANT SAFETY INSTRUCTIONS or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. • This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person...
  • Page 5 IMPORTANT SAFETY INSTRUCTIONS food before cooking or defrosting. Note though that in some cases food should be covered with plastic film, for heating or cooking. • Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
  • Page 6 IMPORTANT SAFETY INSTRUCTIONS sponges, damp cloth and similar may lead to risk of injury, ignition or fire. • If smoke is observed (or emitted), switch off or unplug the appliance and keep the door closed in order to stifle any flame. •...
  • Page 7 IMPORTANT SAFETY INSTRUCTIONS Installation • Ensure that the outlet socket is properly grounded, and that the earth pin on the power cord is not damaged or removed from the power plug. For more details on grounding, inquire at an LG Electronics customer information centre.

  • Page 8: Caution

    IMPORTANT SAFETY INSTRUCTIONS Operation • Children should not allow to play with accessories or hang down from the door or any part of the appliance. • When the appliance is operated in the combination mode, children should only use the appliance under adult supervision due to the temperatures generated.
  • Page 9 IMPORTANT SAFETY INSTRUCTIONS • According to the installation requirements set, otherwise the impact of heating, prone to danger. • Install or locate this oven in accordance with the installation instructions provided. • Allow at least 8 cm from the front of the oven door to avoid accidental tipping of the appliance.
  • Page 10 IMPORTANT SAFETY INSTRUCTIONS • Do not cook food wrapped in paper towels or newspaper, unless your cook book contains instructions for the food you are cooking. • Do not use newspaper in place of paper towels for cooking. • Do not use the appliance to dry newspapers or clothes. They may catch fire.
  • Page 11 IMPORTANT SAFETY INSTRUCTIONS Maintenance • If it is necessary to take precautions during user maintenance, appropriate details shall be given. • Do not rinse containers, tray and rack by placing them in water immediately after cooking. • Unplug the power plug and allow it to cool before cleaning. •...

  • Page 12: Caring For The Environment

    IMPORTANT SAFETY INSTRUCTIONS CARING FOR THE ENVIRONMENT Disposal of Your Old Appliance • This crossed-out wheeled bin symbol indicates that waste electrical and electronic products (WEEE) should be disposed of separately from the municipal waste stream. • Old electrical products can contain hazardous substances so correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health.

  • Page 13: Installation Product Overview

    INSTALLATION INSTALLATION Product Overview The appearance or components of the appliance may differ from model to model. Front View Oven (SKSLV2401S) Drawer (SKSWD2401S) Water Tank Tray Level Cavity Mood Light Built in speed oven can be used with drawer. Oven levels are numbered from the bottom up. The 4th level is used for grill functions. The cooking tables throughout these operating instructions give you suggested oven settings, however, you can change these to suit yourself.
  • Page 14 • The manufacturer is not responsible for any product malfunction or accidents caused by the use of separately purchased, unauthorized components or parts. Specifications Oven Model SKSLV2401S Mains connection 230 V~ 50 Hz Max power consumption 3 150 Watts (3,15 KW) / 13,7 A Microwave output power Max.

  • Page 15: Installation Requirements

    INSTALLATION *1 IEC 60705 RATING STANDARD. Specifications are subject to change without prior notice. *2 Microwave Frequency: 2 450 MHz +/- 50 MHz (Group 2 / Class B) Group 2 equipment: group 2 contains all ISM RF equipment in which radio-frequency energy in the frequency range 9 kHz to 400GHz is intentionally generated and used or only used, in the form of electromagnetic radiation, inductive and /or capacitive coupling, for the treatment of material or inspection/analysis purposes.
  • Page 16 INSTALLATION Parts / Tools CAUTION Tools Needed • The appliance must be installed by a qualified professional electrician, in accordance with the corresponding regulations and standards. • The oven is a heavy appliance and must be transported with great care. •...
  • Page 17 • A gap must be minimum 10 mm between the rear of the installed oven and the connecting wall. • Kitchen cabinets in contact with the oven must be heat resistant up to 90 ℃, and fronts of nearby units to at least 70 ℃. Installation Drawings (with Drawer) SKSLV2401S, SKSLV2401S, Dimension/Clearance Dimension/Clearance...
  • Page 18 INSTALLATION SKSLV2401S, SKSLV2401S, Dimension/Clearance Dimension/Clearance SKSWD2401S SKSWD2401S Ventilation cutout width Drawer width 594 mm 550 mm Drawer height 139 mm Remove the back wall of the installation cabinet. If it is difficult to remove the back wall, make a hole at least 100 mm in diameter that the drawer power cord can protrude on the back wall.
  • Page 19 INSTALLATION Installation Drawings (without Drawer) Dimension/Clearance SKSLV2401S Dimension/Clearance SKSLV2401S Cutout depth Ventilation cutout width 556 mm 550 mm Cutout width Oven depth 471 mm 560 mm Cutout height Oven width 594 mm 458 mm Ventilation cutout depth Oven height 460 mm 50 mm Remove the back wall of the installation cabinet.
  • Page 20 INSTALLATION Product Display Ventilation Installing the Appliance For correct ventilation, a ventilation opening of 50 Clean the cabinet before installing the product as it mm should be required between the back wall and may be dusty. Dust inside the cabinet may seep the floor of the installation cabinet, and a into the product and cause a breakdown.
  • Page 21 INSTALLATION Open the product's door and tighten the screws on the two holes on the left and right sides of the trim bracket...

  • Page 22: Maintenance Cleaning

    MAINTENANCE MAINTENANCE Cleaning • Unplug your oven from the electrical socket when you clean the control panel with a wet cloth or spray water on the control glass to clean. Keep the oven clean inside and outside. Take If it's not, this product can be operated by special care to keep the inner door panel and the touching microwave quick start button.
  • Page 23 MAINTENANCE • It would be convenient to use the steam cleaning • Do not clean in a dishwasher. function after cooking greasy food like fried chicken or fried fish. Hard Water Scale If hard water is used in the water tank, the steam generator may become clogged with hard water scale.
  • Page 24 MAINTENANCE Insert the tank and start the rinsing function. Once the rinsing function is complete, dry the inside of the oven with a soft cloth. NOTE • The rinsing function must be completed even if the descaling function is canceled. Drying The drying function removes residual water inside the steam generator.

  • Page 25: Operation

    OPERATION OPERATION Control Panel Control Panel Features Power On/Off Arrow keys Press this button for 1 second to turn power on Press these keys to move to the next screen or and off. the previous screen. LCD Touchscreen for Oven Lock This icon appears when the lockout feature is Door Open...

  • Page 26: Using The Oven

    OPERATION Using the Oven Swipe the screen or touch the <> arrow keys to navigate through the settings screens. Getting Started After turning on the oven for the first time, adjust the settings to suit your preferences. Press Power On/Off. After the start-up animation, select the desired Location of Settings language and press NEXT.
  • Page 27 OPERATION Remote On The lock icon disappears from the top of the Remotely sets the cook mode of the appliance. display. The appliance must be registered on a home Wi-Fi network to use Remote On. Time Setting Remote On Setting time of day Press Settings at the bottom centre of the Press Time on the settings screen.
  • Page 28 OPERATION Setting Auto Wake Up Setting the volume Press Settings at the bottom centre of the Press Settings at the bottom centre of the main screen, then press Auto Wake Up in the main screen, swipe to the second settings first settings screen.
  • Page 29 Press UPDATE to download and Those products identified by the product type and install the new version. model oven above from SIGNATURE KITCHEN SUITE contain the open source soft detailed function. Please refer to the indicated open source Demo Mode licenses (as are included following this notice) for Demo mode for showroom use only.
  • Page 30 OPERATION Oven Cooling Once the time runs out, the oven chimes and "Timer finished" appears in the display. The oven cooling icon appears in the display if the temperature inside the oven is high during or after Setting the timer operation.
  • Page 31 OPERATION Press Start. If you want to start, press Start in the display. To pause cooking To stop cooking Press Pause in the display. Press Stop in the display, then select Yes. Power level Accessory 1 000 W • Boiling water. Rack •...
  • Page 32 OPERATION Hot Air Combi./Roast Combi./Auto Scroll through the numbers to select a cooking Roast Combi./Grill Combi. temperature or press the number pad icon < to enter the numbers directly and press OK. Example: Hot air combi. Setting the hot air combi. function If desired, set the cook time and delayed start Select the desired oven in the display, then time using the same method.
  • Page 33 OPERATION Press Start. The remaining time appears in the display. To stop cooking After The BEEP, turn the food over and press Press Stop in the display, then select Yes. Start to continue cooking. Defrost A chime sounds at the end of the cook time and Setting the Defrost Function a notification appears in the display.
  • Page 34 OPERATION Category Grilling Pizza Grilling sausages Pizza (frozen, thick) Hamburgers Pizza (frozen, thin) Pork fillet Salmon fillets Toast Baking tables Hor air Menu Accessory Temperature in Cooking time in Tray position minutes Baguette 20-30 Baguette tray the metal tray Steam-assist Menu Accessory Temperature in...
  • Page 35 OPERATION Top bottom heat Menu Accessory Temperature in Cooking time in Tray position minutes Biscuits Metal tray 180-190 15-30 Bread (rye 180-190 15-40 Loaf pan on the bread) metal tray Lasagne Metal tray 180-190 50-80 Bottom 180-190 20-40 Pie pan on the rack Small cake...
  • Page 36 OPERATION Roasting Menu Cooking time in Tray position Temperature in minutes Leg of lamb (approx. 1 180-190 70-90 Pork (approx. 1 kg) 180-190 110-130 Poultry (approx. 1.5 190-200 70-90 Whole fish (approx. 170-180 30-50 1.0 kg) Steam-assist Menu Cooking time in Tray position Temperature in minutes...
  • Page 37 OPERATION NOTE • Let the oven preheat for approximately five minutes before cooking food. Pizza tables Accessory: Metal tray Tray position: 2 Hot air Pizza mode Menu Temperature in Temperature in Cooking time in Cooking time in minutes minutes Pizza (home- 190-200 10-30 190-200...
  • Page 38 OPERATION Editing my recipe Setting gourmet chef function The edit function cannot add or remove cooking stages to a recipe. Only the oven temperature, Select the desired oven and press Gourmet level, and cook time can be changed. Chef in the cooking mode screen. Press My Recipe in the cooking modes screen.
  • Page 39 OPERATION metal tray. Choose the menu, and press start. • 2 eggs, lightly beaten After cooking, stand covered for 2 minutes. • 1 cup finely ground breadcrumbs • Salt and pepper to taste 4 Frozen Pizza (Thick) (0,5 kg) Instructions •...
  • Page 40 OPERATION 6 Wedge Potatoes (0,2 - 0,4 kg, step 0,1 kg) • 0,5 onion, sliced • Food Temperature: Room • 2 fresh mushrooms, sliced • Accessory: Crisp tray • 0,5 fresh pepper • Tray position: 4 • 100 g shredded mozzarella cheese •...
  • Page 41 OPERATION • Accessory: Rack on the metal tray • Tray position: 1 • Tray position: 1 • On a lightly floured surface, roll out the pastry into a circle and put in the tart pan. Trim edges, • Brush pork with melted butter or oil and season leaving a little overhang.
  • Page 42 OPERATION • Cook lasagne sheets according to package remaining potatoes and season as desired. Then directions and drain. Spread about 125 g pour cream and cheese over the top. Place the spaghetti sauce in a 26 x 17 cm baking dish. baking dish on the rack on the metal tray.
  • Page 43 OPERATION • After the BEEP, stir and press start to continue Do not exceed the max line cooking. After cooking, Rinse pasta with cold water. *1 Use these cooking containers in your own. Steam Cook Steam cooking uses the moist heat of steam to cook food.
  • Page 44 OPERATION NOTE NOTE • To avoid damage and extend product life, • Remember to drain the water tank after use. descale the steam feeder after every 8 hours of use, or more often if needed. Changing the steam-assist settings • After the steam mode is used for 8 hours, a reminder to descale the product appears in the Press Edit in the display to bring up the cook display the next time the steam mode is...
  • Page 45 OPERATION Changing the steam combi. settings Once cooking is finished, allow oven to cool completely, then wipe up any water left on Press Edit in the display to bring up the cook oven interior. settings screen. NOTE • It is normal to hear the sound of boiling water Adjust the settings as desired.
  • Page 46 OPERATION 4 Fish Fillets (0,2 - 0,6 kg, step 0,1 kg) 6 Prawns (0,2 - 0,6 kg, step 0,1 kg) • Food Temperature: Refrigerated • Food Temperature: Refrigerated • Accessory: Rack on the metal tray • Accessory: Rack on the metal tray •...
  • Page 47 OPERATION Microw Cooking Temper Cook Accesso Preheat time ature Menu Position mode power ries (minute Pastry Stripes Top/ Rack on 20-25 bottom metal heat tray Pastry Stripes Hot air Rack on 20-25 metal tray Toast Grill High Rack on Yes (5 metal minutes) tray...

  • Page 48: Utensils Guide

    OPERATION Microw Cooking Temper Cook Accesso Preheat time ature Menu Position mode power ries (minute Hor air Rack on 15-20/ Chicken combi. metal 15-20 tray *1 Turn after half time. oven, provided that the cooking time is short and foods to be cooked are low in fat and moisture. Paper towels are also very useful for wrapping foods and for lining baking trays in which greasy Utensils Guide...

  • Page 49: Cooking Guide

    OPERATION microwave use. Follow the steps below to find out develop. Foods are often allowed to stand for 3 if utensils can be used in the microwave. to 10 minutes after being removed from the oven. Place the container in question and a glass •...

  • Page 50: Smart Functions

    SMART FUNCTIONS SMART FUNCTIONS LG ThinQ Application • The application is subject to change for appliance improvement purposes without notice to users. This feature is only available on models with Wi-Fi. The LG ThinQ application allows you to • Functions may vary by model. communicate with the appliance using a smartphone.
  • Page 51 SMART FUNCTIONS Remote On NOTE If the appliance is registered on a home Wi-Fi • To verify the Wi-Fi connection, check that the Wi- network, You can download the oven settings Fi indicator on the control panel is lit. using the LG ThinQ smart phone application. •...

  • Page 52: Smart Diagnosis

    Declaration of Conformity Should you experience any problems with the appliance, it has the capability of transmitting data via your telephone to the SIGNATURE KITCHEN Hereby, LG Electronics declares that the radio SUITE Customer Information Center. NFC or Wi-Fi equipment type Built-in Speed Oven is in equipped models can also transmit data to a compliance with Directive 2014/53/EU.
  • Page 53 • If the agent is not able to get an accurate recording of the data, you may be asked to try again. SIGNATURE KITCHEN SUITE Smart Diagnosis Use the Smart Diagnosis feature in the LG ThinQ application for help diagnosing issues with the...

  • Page 54: Troubleshooting Faqs

    TROUBLESHOOTING TROUBLESHOOTING FAQs Frequently Asked Questions Operation Q: Will the microwave oven be damaged if it operates empty? A: Yes. Never operate the oven empty. Q: Does microwave energy pass through the viewing screen in the door? A: No. The metal screen bounces the energy back to the oven cavity. The holes (or ports) allow only light to pass through.

  • Page 55: Before Calling For Service

    TROUBLESHOOTING A: Make sure that the oven is not in Child Lock mode. The lock will show in the display if Child Lock is activated. To deactivate Child Lock, tap display to see the unlock popup. Press UNLOCK for 3 seconds to cancel the child lock function.
  • Page 56 TROUBLESHOOTING Symptoms Possible Cause & Solution Steam is exhausted Cooking foods with high moisture produces steam. through the oven vent. • This is normal. Appliance does not Power cord is unplugged. operate. • Make sure power cord is plugged correctly into outlet. Check circuit breakers.
  • Page 57 TROUBLESHOOTING Symptoms Possible Cause & Solution White residue appears Using hard water in the tank can result in hard water scale on the oven on the oven bottom bottom. after steam cooking. • To remove mineral deposits that remain on the oven bottom. use a cloth or sponge soaked In vinegar or a weak citric acid solution.
  • Page 58 "Troubleshooting". There will be a charge for any inspection carried out by a technician if it should transpire that there is no mechanical or electrical fault present in the appliance. Customer Service For general queries on SIGNATURE KITCHEN SUITE, please contact our Customer Service Centre in writing or by telephone or visit our website at www.ignaturekitchensuite.com/it.
  • Page 59 Memo...
  • Page 60 Centro di assistenza clienti Customer Information Center 800-978-866 800-978-866...
