Page 1: Installation Guide

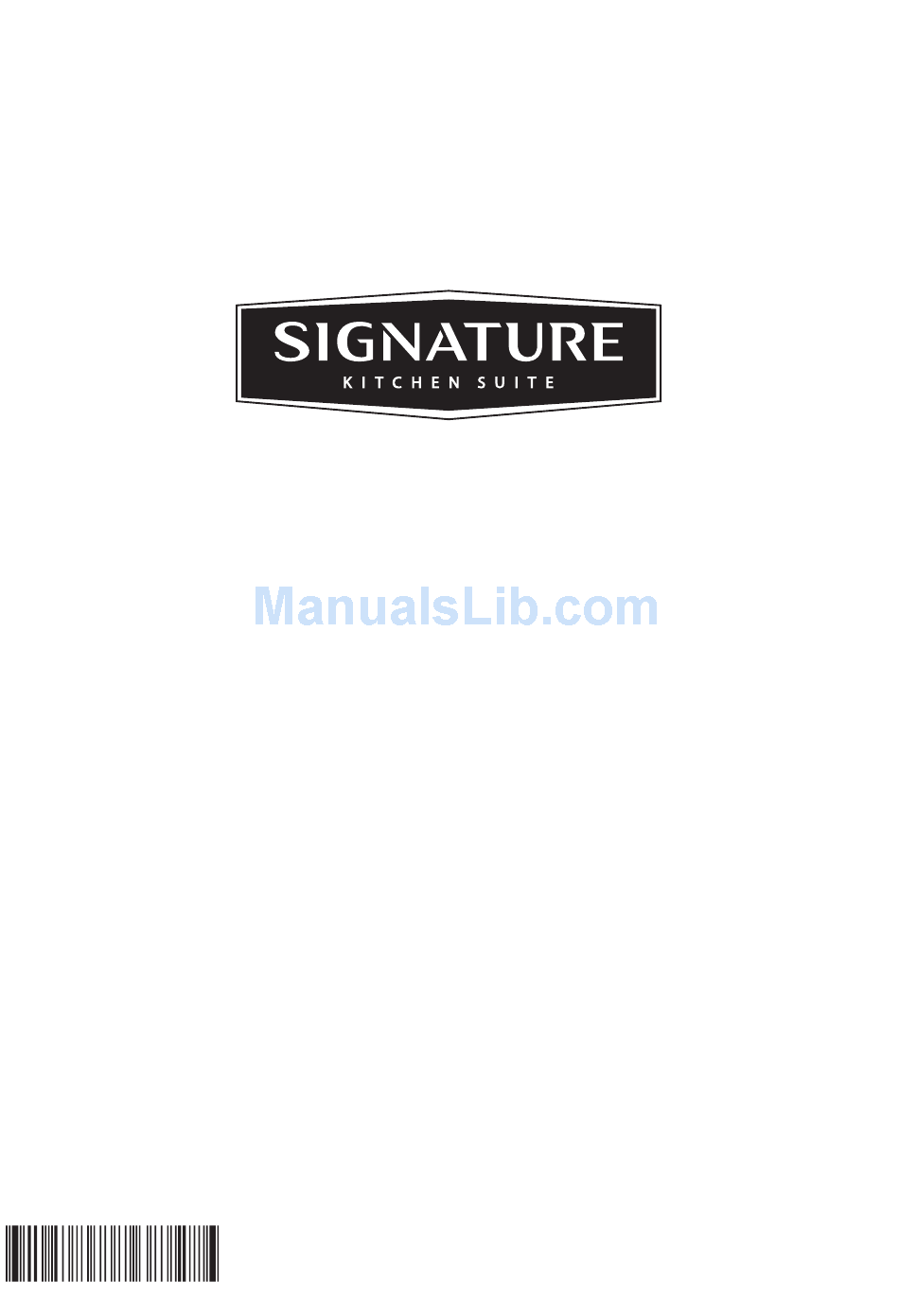

INSTALLATION GUIDE MICROWAVE OVEN UPMC3084ST www.thesignaturekitchen.com MFL06208710_00... -
Page 2: Your Safety First
YOUR SAFETY FIRST BEFORE YOU START • Proper installation is the installer's responsibility! Proper installation by a qualified technician or installer is recommended. – Read the entire manual before you begin. The model number label is located on the oven front. See Figure 1. - Page 3 YOUR SAFETY FIRST SAVE THESE INSTRUCTIONS FOR THE LOCAL ELECTRICAL INSPECTOR'S USE. • DO NOT EXPOSE YOURSELF TO EXCESSIVE MICROWAVE ENERGY! – DO NOT try to operate the microwave oven with the door open. – DO NOT tamper with or defeat the safety interlocks. –...
-
Page 4: Parts, Tools, Materials
PARTS, TOOLS, MATERIALS THE FOLLOWING PARTS ARE SUPPLIED WITH THE OVEN: NOTE: Depending on your ventilation requirements, you may not use all of these parts. Damper/duct connector One power cord clamp and One dark-colored mounting screw (for roof venting or wall venting installation) Not Actual Size (2 pieces must be assembled as (to hold the power cord) shown) - Page 5 PARTS, TOOLS, MATERIALS You will need the following tools and materials for the installation: Carton or other heavy material for covering the counter top. Clear Tape Stud Finder (for taping the templates to the wall) Keyhole Saw (for the power cord hole) Saber Saw (for cutting vent holes for roof or wall venting)
-
Page 6: Step 1: Prepare The Electrical Connections
STEP 1: PREPARE THE ELECTRICAL CONNECTIONS W A R N I N G AVOID ELECTRICAL SHOCK! THIS APPLIANCE MUST BE GROUNDED! 1. Locate the grounded electric outlet for this oven in the Upper cabinet above the oven, as shown in Figure 5. Cabinet NOTE: The outlet should be on a circuit dedicated to the microwave oven (120V, 60 Hz., AC only) with a 15 or 20A... -
Page 7: Step 2: Prepare The Venting System
STEP 2: PREPARE THE VENTING SYSTEM NOTE: The ductwork you need for outside ventilation is not included with your oven. The standard ductwork fittings and length are shown in Figure 10, page 8. W A R N I N G THIS OVEN MUST BE PROPERLY VENTED! You may vent your oven in one of three ways. - Page 8 Standard Fittings NOTE: If the existing duct is round, you must use a rectangular-to-round adapter, with a rectangular 3" extension duct installed between the damper assembly and the adapter to prevent the exhaust damper’s sticking. Duct Length The total length of the duct system, including straight duct, elbows, transitions, and wall or roof caps must not exceed the equivalent of 140 feet.
-
Page 9: Step 3: Prepare The Venting Blower
STEP 3: PREPARE THE VENTING BLOwER W A R N I N G ● To avoid risk of property damage, unplug the microwave oven or disconnect power at source by removing fuse or throwing circuit breaker. ● To avoid risk of personal injury, wear protective gloves when handling mounting plate. - Page 10 4. Reassemble the blower wire. See Figure 15. 5. Rotate the unit so that the exhaust ports face the rear of the cabinet. See Figure 17. When you insert blower unit, blower wire must be like figure 16. 6. Place blower unit back into cabinet. Check that the exhaust ports face towards the rear of the cabinet. See Figure 17.
- Page 11 STEP 4: PREPARE THE wALL & UPPER CABINET W A R N I N G To avoid personal injury or property damage, do not attempt to install this microwave oven if you cannot find a wall stud. Measure And Track/Tape Up The Templates 1.
- Page 12 W A R N I N G To avoid risk of personal injury, electrical shock or death: • Note where electrical outlets and electrical wires are before you drill into the wall. • Locate and disconnect power to any electrical circuits that could be affected by installing this oven.
-
Page 13: Step 5: Install The Mounting Plate
STEP 5: INSTALL THE MOUNTING PLATE The Oven Must Be Connected To At Least One 3/16 Hole on Studs 5/8 Hole on Drywall Only Wall Stud. Minimum 66 From the Floor For Wall - 1. Center the rear wall template in the space by lining up Venting Only the plumb line on wall with centerline on template.Then securely tape or tack the rear wall template in place.Make... -
Page 14: Step 6: Attach The Oven To The Wall
STEP 6: ATTACH THE OVEN TO THE wALL W A R N I N G To avoid risk of personal injury or property damage, use will need two people to install this microwave oven. 1. Carefully lift microwave oven and hang it on support tabs power cord (See Figure 28) at the bottom of the mounting plate.Reaching through upper cabinet, thread power supply cord through the... - Page 15 MEMO – 15 –...
