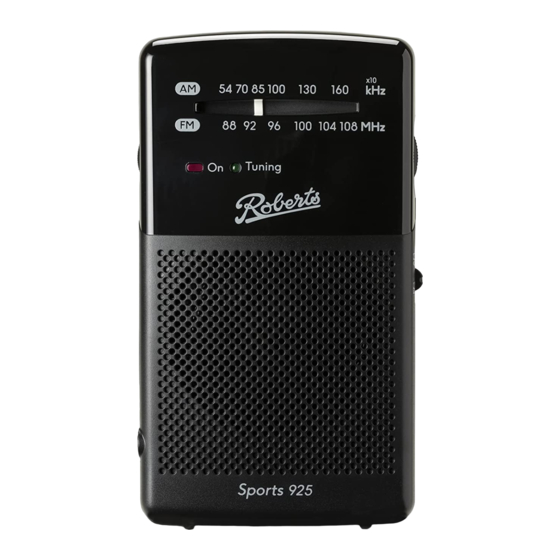

Roberts Sports 925 Quick Start Manual

W h a t i s i n t h e B ox ?
Radio, quick start guide and safety/warranty leaflet.
Features
• MW (AM) / FM wavebands
• Dial tuning system
• Power on indicator
• LED tuning indicator
• Carrying strap
• Headphone socket
• Batteries 2 x LR6 / AA size (not included)
Controls
4
2 3
1
5
1 Loudspeaker
2 Power indicator
3 Tuning indicator
4 Tuning scale
5 Battery compartment
8
9
10
6
7
6 Telescopic aerial
7 Headphone socket
8 Volume / On/Off control
9 Tuning control
10 Waveband switch
S TE P 1 - P owe r your radi o
Battery operation
Open the battery cover on the rear of your radio by sliding
1
the cover in the direction of the arrow.
2 Insert two LR6 (AA size) batteries into the spaces in the
compartment. Take care to ensure all batteries are inserted with
the correct polarity as shown. Close the battery cover.
3 Reduced power, distortion and a stuttering sound are all signs
that the batteries may need replacing.
4 If the radio is not to be used for an extended period of time it is
recommended that the batteries are removed from the radio.
Important: The batteries should not be exposed to excessive heat
such as sunshine, fire or the like. After use, disposable batteries
should if possible be taken to a suitable recycling centre. On no
account should batteries be disposed of by incineration.
Caution: Replace batteries only with the same or equivalent type.
Danger of explosion if the batteries are incorrectly replaced.
S T E P 2 - Ope ratin g your radi o
1 Switch on your radio by rotating the Volume
control clockwise until a click is heard. The
Power indicator will appear.
2 Set the Waveband switch to the required
waveband.
3 Adjust the Volume control until a hissing sound
is heard.
4 Rotate the Tuning control to select the desired
station. The Tuning indicator will light when the
station is correctly tuned. On MW (AM) the tuning
scale is marked in kilohertz (kHz). On FM the tuning
scale is marked in Megahertz (MHz).
5 For MW (AM) reception rotate your radio to the
position giving best reception.
6 For FM reception fully extend the Telescopic
aerial and then angle and rotate for best
reception.
Adjust the Volume control to the required sound
7
level.
8 To switch off your radio rotate the Volume control
fully anti-clockwise until a click is heard.
Note: The telescopic aerial is inoperative on
MW (AM).
Frequency Range READ
FM: 87.5-108 MHz SAFETY
AM: 520 - 1710 kHz GUIDE
Battery: 2x 1.5V AA
Roberts Radio Ltd, Stoney Lane,
Whiston, Prescot, L35 2XW, UK
Glen Dimplex Europe Ltd,
Airport Road, Cloghran,
Co. Dublin, K67 VE08, Ireland
Designed & Engineered in the UK,
Made in China
continued overleaf...
