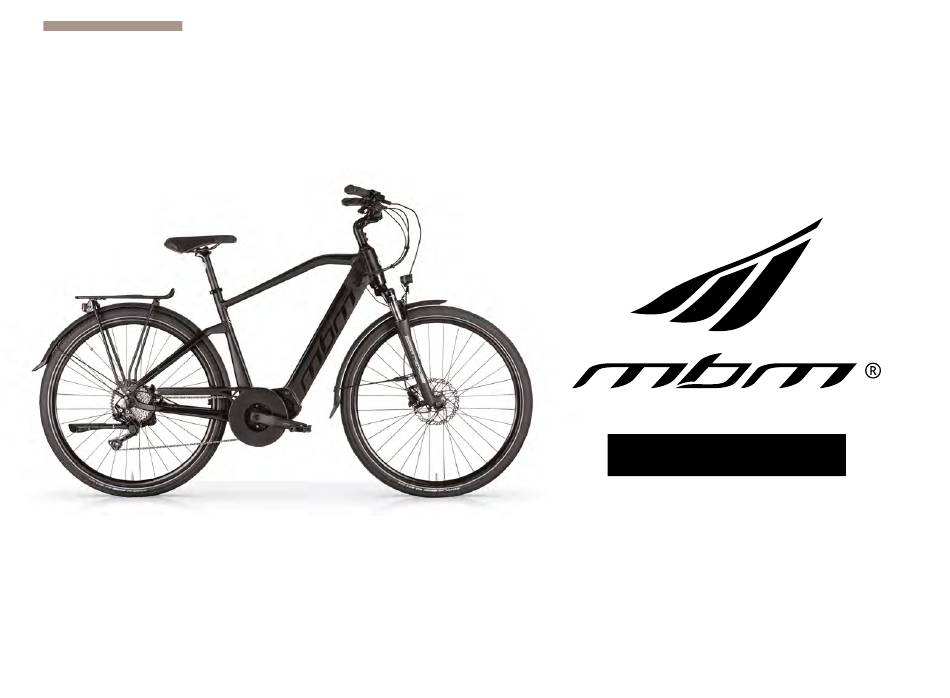

E R E B U S
U S E R M A N U A L
E R E B U S 2 8 "

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EREBUS 28 and is the answer not in the manual?

Questions and answers

Related Manuals for MBM EREBUS 28

Summary of Contents for MBM EREBUS 28

  • Page 1 E R E B U S U S E R M A N U A L E R E B U S 2 8 ”...

  • Page 2: Table Of Contents

    I N D E X 1. FOREWORDE 3.10 Error code 1.1 General 3.10.1 Troubleshooting 1.2 Assistance 3.11 Battery 1.3 Graphic form of security warnings 3.11.1 Charge status 3.11.2 Battery installation/removal 2. SAFETY WARNINGS 3.11.3 Battery charging 2.1 General safety rules 3.11.4 Troubleshooting 2.2 Responsabilites 3.12 Front and rear headlight...
  • Page 3 8. MAINTENANCE 8.1 General 8.2 Daily maintenance and checks 8.2.1 Control of nameplates and pictograms 8.2.2 Wheel control 8.2.3 Brake operation control 8.3 Weekly maintenance and checks 8.3.1 Washing and cleaning 8.3.2 Lubrification and chain tension control 8.3.4 Frame and bolt control 8.4 Monthly maintenance and checks 8.4.1 Derailleur control and adjustment 9.

  • Page 4: Foreworde

    1. FOREWORD 1.1 General This manual is an integral and essential part of the pedal assisted bicycle model E - EREBUS 28”. Prior to commissioning, it is imperative that users read, understand, and strictly follow the following dispositions. The manufacturer shall not be liable for damage to persons and/or property or for damage to the pedal cycles if they are used in a manner not in accordance with the instructions.

  • Page 5: Safety Warnings

    2. SAFETY WARNINGS USING THE PEDAL-ASSISTED BICYCLE Every user must first read the instruction manual, especially the chapter on safety instructions. ATTENZI- HAZARDS OF PEDELEC USE • Despite the application of safety devices, for safe use of your pedal assist bicycle, please take note of all accident preven- tion requirements in this manual.

  • Page 6: Warning For Users

    UNAUTHORIZED MODIFICATIONS If you hear unusual noises or feel anything strange, stop your pedal assisted bicycle immediately. Check it later and, if nec- essary, contact your authorized dealer. ATTENTION For any information that is not included or cannot be deduced from this manual, please consult your authorized dealer directly.

  • Page 7: Other Provisions

    2.5 Other provisions The first thing to do when starting use is to check the presence and integrity of the protections and the operation of the safety devices. If you find any defects, do not use the pedal assisted bicycle! FENDERS It is therefore strictly forbidden to modify or remove the guards, controls, la- bels and information plates.

  • Page 8: Pedal Mounting

    2.6.2 Montage Pedals Right Pedal: it is identified by the letter R marked on its pin. For pedal mounting, screw by turning the pin clockwise. (Figure 2) Left Pedal: it is identified by the letter L marked on its pin. For pedal mounting, screw by turning the pin counterclock- wise.

  • Page 9: Bicycle Description

    3. DESCRIPTION OF BICYCLE 3.1 General description The pedal-assisted bicycle is designed and built to be used outdoors, on roads and private or public environments. In par- ticular, the components and the type of pedal-assisted bicycle, allow you to face paths with asphalted and dirt surfaces without particular roughness.

  • Page 10: Data Sheet

    3.2 Technical sheet 1. MOTOR AND CONTROLS CODE E809 MAN 2. MOTOR FRAME ALUMINIUM HYDROFORMED 3. SADDLE 4. BATTERY FORK SUSPENSION WITH ADJUSTMENT 5. PEDALS 6. FORK CRANKSET 38 TEETH 7. FRONT LIGHT DEORE REAR DERAILLEUR 8. REAR LIGHT 9. REAR DERAILLEUR 10 SPEEDS SHIFTER BRAKES...

  • Page 11: Brake Levers

    3.3 Brake levers The brake levers (Ref.C - Figure 3) are placed on the handlebars of the pedal-assisted bicycle, near the knobs (Ref. D- Figure 3). These systems make it possible to control the calipers of the brake discs, located near the wheel hubs. The right lever controls the rear brake, the left one the front brake;...

  • Page 12: Service System Management

    3.5 Assistance system management 3.5.1 Service management commands The pedal-assisted bicycle has, in the center of the handle- bar, a display that allows you to manage the operation of the electric motor, in addition to other basic functions illus- trated below. (Figure 4) Near the left knob of the handlebar are 3 buttons, which can be used with a short or long press, thanks to these you can control the functionality of the display.

  • Page 13: Support Activation

    3.5.3 Activate support The engine is activated, and is deactivated immediately if the pedaling ceases. The power of the engine depends on the force imprinted on the pedals, according to a multiplicative factor depending on the level of assistance selected. 3.5.4 Setting the level of assistance From any screen of the home section, you can change the level of assistance by pressing the "UP"...

  • Page 14: Display Graphic Interface

    3.6 Graphic Display interface After powering on, the first Distance screen of the home section appears. The Home section consists of 6 screens. To scroll through the screens, you need to press the "POWER" button. From any screen in the home section, you can: ›...

  • Page 15: On-Board Computer Mode

    3.7 On-board computer modality The on-board computer is able to adapt to different use scenarios, from switching to sports use. To move between the available display modes, briefly press the "POWER" button (Ref. H - Figure 5). 3.7.1 "RACE" modality" It is the fifth screen in the home section.

  • Page 16: Summary Mode

    3.7.2 Summary mode It is the sixth screen of the home section. This screen summarizes the variable parameters of the previous screens. (Figure 4.3) Indicates the distance traveled in kilometers (km) from the last reset. Indicates the time spent in motion since the last reset. The value is expressed in hours:minutes:seconds.

  • Page 17: Walking Assistance Mode

    3.8 Walking assistance mode The system is equipped with a walking assistance function, which allows you to activate the engine up to a maximum speed of 6km/h to allow you to tackle more easily short stretches pushing the e-bike. To activate the walk assistance function, press and hold the "DOWN" button (Ref. G in Figure 5). The engine will activate, and the appropriate warning will be displayed on the display.

  • Page 18: Menu

    3.9 Menu By simultaneously pressing the “UP"+"DOWN" buttons (Ref. F - G - Figure 5) for two seconds you can open the menu screen. From any screen, by holding down the "POWER" button for 2", you can return to the last Screen - ta Home displayed. Once inside you can move in the menu with the "UP"...

  • Page 19: Screen Brightness

    3.9.1 Screen brightness From this screen you can adjust the brightness of the screen. Use the "UP" and "DOWN" keys to scroll through the values from 1 to 10. The selected value is high- lighted in the center in the white row. (Figure 4.6) FIG.

  • Page 20: Weight

    3.9.4 Weight From this screen you can set your body weight by setting a value between 50 and 150 kg. Setting this data is not necessary for the proper functioning of the eBike. The value has the sole purpose of making the cal- culation of calories consumed reliable.
  • Page 21 ANOMALY CODE DESCRIPTION PROBLEM COMMUNICATING WITH BATTERY. BATTERY STATUS DATA MAY BE DISPLAYED INACCURATELY. CHECK THAT THE WIRING AND CONTACTS OF THE 0001 BATTERY ARE CONNECTED CORRECTLY AND INTACT. 0101 COMMUNICATION PROBLEM BETWEEN DRIVE AND HMI. CHECK THAT THE WIRING IS CONNECTED CORRECTLY AND INTACT. SPEED SENSOR NOT DETECTED.

  • Page 22: Troubleshooting

    3.10 Troubleshooting PROBLEM CAUSE/SOLUTION THE SYSTEM DOES NOT TURN ON CHECK THAT THE BATTERY IS PROPERLY INSERTED IN PLACE, AND THAT IT IS CHARGED. CHECK THAT THE SELECTED LEVEL OF ASSISTANCE IS GREATER THAN 0, AND THAT THE LEVEL OF CARI- SUPPORT DOES NOT ACTIVATE BATTERY APPROX IS SUFFICIENT.

  • Page 23: Battery

    3.11 Battery The bicycle provides pedaling assistance by means of an elec- tric motor powered by the battery placed in the down tube of the frame structure (Figure 6) 3.11.1 Battery charge status You can view the battery charge status directly on the assistance system management display.
  • Page 24 For install the battery proceed What Follows: 1- This procedure should be done without the unlock key, remove it if inserted. 2- Align the battery above the oblique pipe of the frame by first matching the electrical connector (Ref. O - Figure 8). 3- Carefully insert the battery into the frame until you hear the closing click of the lock.

  • Page 25: Battery Charging

    3.11.3 Battery charging The battery of the pedal-assisted bicycle can only be recharged by removing the bat- teria. To charge the battery proceed as follows: 1- Turn off the assistance system of the pedal-assisted bicycle using the appropriate "MODE" button (Rif. H in Figure 5); 2- Remove the battery;...

  • Page 26: Front And Rear Headlight

    3.12 Front and rear headlight To ensure visibility both during the day and at night, two headlights are installed, one front and one rear. These devices are operated by means of the control device of the assistance system during the use of the pedal-assisted bicycle. FIG.

  • Page 27: Conditions Of Use And Intended Environment

    4. CONDITIONS OF USE AND INTENDED ENVIRONMENTS 4.1 Intended use The pedal-assisted bicycle is designed and built to be used outdoors, on roads and private or public environments. In particular, the components and the type of pedal-assisted bicycle, allow you to face routes with asphalt surfaces or with similar characteristics without particular roughness.

  • Page 28: Environment Of Use

    4.3 Improper uses and contraindications The actions described below, which obviously cannot cover the entire range of potential possibilities of "misuse" of the pedal-assisted bicycle, are to be considered absolutely Prohibited. PROHIBITED OPERATIONS • The execution of prohibited operations invalidates the warranty. •...

  • Page 29: Lifting And Transport

    5. LIFTING AND TRANSPORT 5.1 Lifting The weight of the pedal-assisted bicycle model E-EREBUS is such that it can be lifted and transported by a person, also because of the overall dimensions. The optimal solution to perform the movement is to grab a handlebar knob and the back of the saddle. CRUSHING AND IMPACT •...

  • Page 30: Commissioning

    6. COMMISSIONING 6.1 Battery charge Before using the bike for the first time you must charge the battery for at least 8 hours, using the appropriate battery charger, supplied. The pedal-assisted bicycle, model E-EREBUS, is equipped with an electric motor powered by a 36 V lithium-ion battery. The battery pack is housed in the central part of the frame, inside the lower tube.

  • Page 31: Preliminary Functional Checks

    6.2 Preliminary functional checks Before each use, the driver must ensure the safety status of the pedal-assisted bicycle. Therefore, perform the following inspections before riding the pedal-assisted bicycle. 6.2.1 Control devices Check the efficiency and state of charge of the battery. Use in a very cold environment quickly degrades battery efficien- cy.

  • Page 32: Frame, Handlebar And Saddle Position

    6.2.4 Frame and saddle position Check that the frame and saddle are fixed correctly and positioned in the most comfortable configuration for the rider for complete control of the bike. Otherwise, before departure, act on the positionand saddle adjustment systems. For more information on the regulation refer to section 2.6.

  • Page 33: Brake Adjustment

    6.2.5 Brake adjustment Before using the pedal-assisted bicycle, adjust the position of the brake levers on the handlebars to obtain a comfortable and firm grip of the lever and knob during braking. Loosen the screw (Ref. P - Fig- ure 13) and rotate the brake lever to the desid- erata position. Check that you have tightened the screw correctly before using the ped- al-assisted bicycle.

  • Page 34: Use Of The Bicycle

    7. USE OF THE BICYCLE The pedal-assisted bicycle has been designed and built for use in open places, with asphalt bottom or similar, for amateur use. • It is forbidden to load a passenger in addition to the driver. • Can only be used by experienced adults and children. •...

  • Page 35: Use Of The Bicycle

    7.1 USE OF THE BICYCLE Before using the pedal-assisted bicycle in places open to traffic, it is advisable to familiarize yourself with the behavior of the vehicle. The first uses must be made in private environments away from traffic, other cyclists or obstacles of any kind. The driver must adapt the driving speed of the pedal-assisted bicycle to the conditions of the route and the presence of other vehicles or pedestrians.

  • Page 36: Maintenance

    8. MAINTENANCE 8.1 General DANGER OF ACCIDENTS During all maintenance work, follow the appropriate safety measures. All maintenance operations must be carried out with the battery disconnected from the pedal-assisted bicycle and the battery charger and the bicycle resting in a stable manner, taking advantage of special support elements.

  • Page 37: Weekly Maintenance And Checks

    8.2.3 Brake functioning control The brakes must be adjusted in such a way as to ensure effective braking and at the same time the control levers must have an adequate stroke, in order to modulate the braking: in other words, the brakes must not be too slow or too pulled. Check that brake system discs and pads are not contaminated with oils or soaps.

  • Page 38: Monthly Maintenance And Checks

    8.4 Monthly maintenance and checks 8.4.1 Control of electrical circuits and components Check the condition and fixing of the battery cables: the sheaths of the electrical cables must be in good condition and the terminals must be tight, not corroded and covered with insulating grease. Check that all light bulbs and lights have been switched on correctly.

  • Page 39: Technical Assistance And Spare Parts

    9. TECHNICAL ASSISTANCE AND SPARE PARTS If you need technical assistance, please contact your authorized dealer. In case of assembly of non-original parts, the warranty loses its validity! ORIGINAL SPARE PARTS The manufacturer is exempt from any liability for damages of any kind, generated by the use of non-original spare parts.

  • Page 40: Disposal Components And Materials

    11. DISPOSAL OF COMPONENTS AND MATERIALS DISPOSAL OF MATERIALS The disposal of packaging, waste and vacuumed dust, of the replaced parts, of the pedal-assisted bicycle as a whole at the end of its expected life, must be carried out in respect of the environment; avoiding polluting soil, water and air respecting in any case the national and local legislation in force on the subject.

  • Page 41: Warranty Rules

    12. WARRANTY RULES MBM srl guarantees that its bicycles are free from any manufacturing defect or invoice. This guarantee covers the repair or replacement of any part recognized to be defective, subject to the following conditions: TERMS AND CONDITIONS • Warranty period: the pedal-assisted bicycle is guaranteed for 24 months on mechanical and electrical parts, except for batteries and all components subject to wear.

  • Page 42: Conformity

    • Transport costs. Except as provided in this warranty and subject to all other warranties, MBM and its employees and agents shall not be liable for any loss or damage of any kind (including incidental and consequential losses or damage caused by negligence or failure) arising out of or relating to any MBM bicycle.
  • Page 43 M.B.M S.r.l. Unipersonale Via Emilia Levante, 1671/73/75 | 47521 Cesena (FC) Tel.: + 39 0547 -300364 Fax: +39 0547-304326 Email: info@mbmbike.it...
