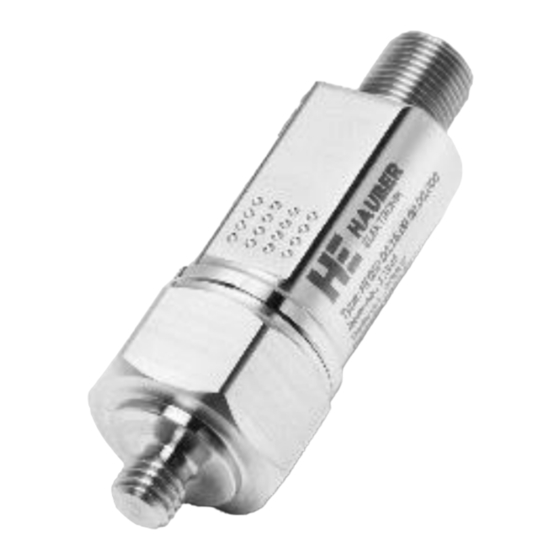

Vibration monitoring unit
Series HE050
•
Vibration velocity (mm/s, rms)
•
Vibration acceleration (g, rms)
•
Vibration acceleration (g, rms)
•
Temperature (°C)
•
Output 1: IO-Link or
Digital switching output
•
Output 2: Analogue current output 4...20 mA or
Digital switching output
•
Adjustable frequency range: 10 Hz ... 1000 Hz
Date of manufacture:
Type description:
Serial no.:
Doc ID: M001-HE050 Stand: 2021-06-09
Betriebsanleitung
englisch
Advertisement
Table of Contents
Related Manuals for Hauber HE050 Series
Summary of Contents for Hauber HE050 Series

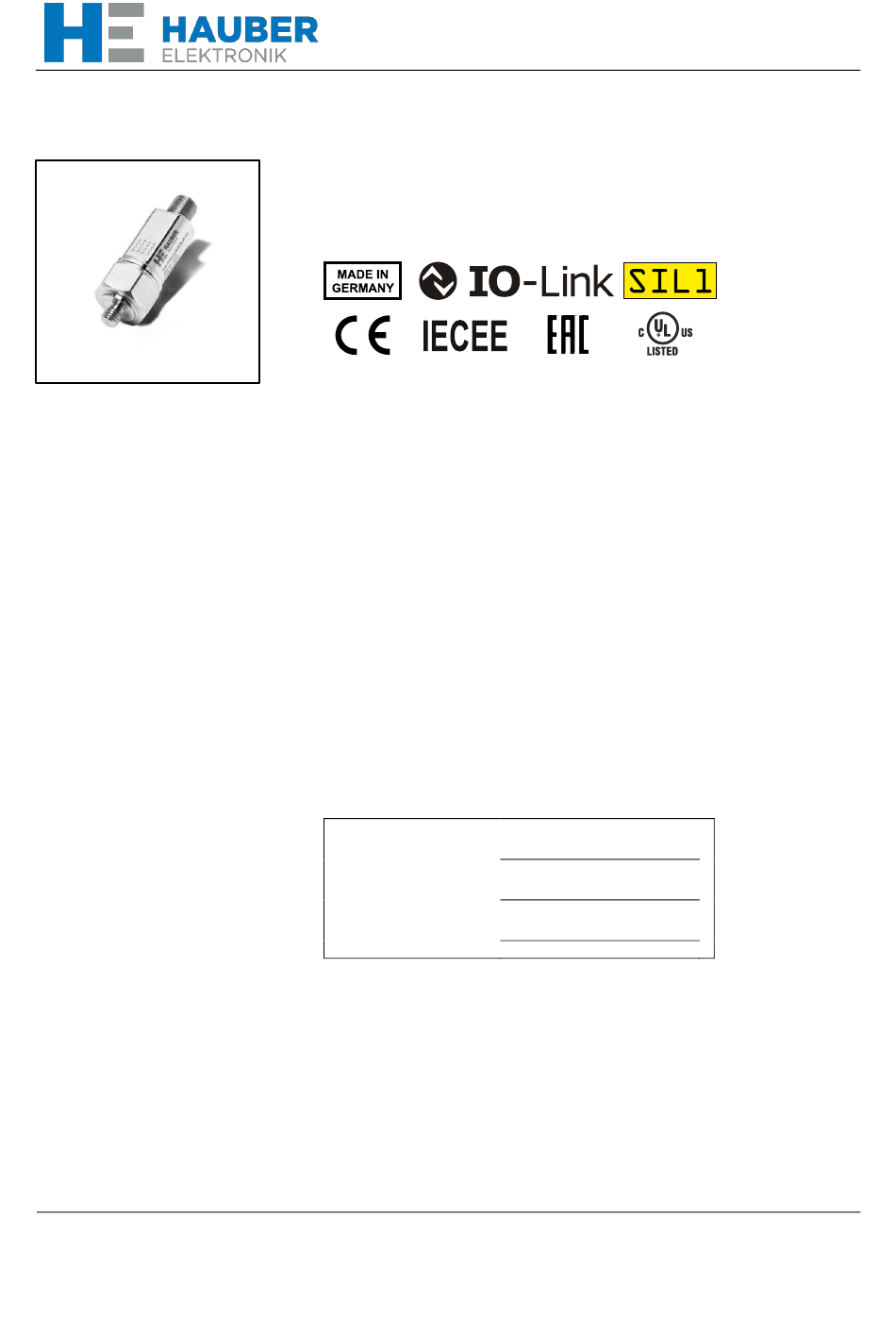

- Page 1 Vibration monitoring unit Series HE050 • Vibration velocity (mm/s, rms) • Vibration acceleration (g, rms) • Vibration acceleration (g, rms) • Temperature (°C) • Output 1: IO-Link or Digital switching output • Output 2: Analogue current output 4…20 mA or Digital switching output •...
- Page 2 HAUBER-Elektronik GmbH Operating instructions Vibration Monitoring Unit Type HE050 HE050 Version: 2021-06-09 Attention! Prior to commissioning the product, the instruction manual must be read and understood. All rights reserved, including rights to translation. Subject to modifications. Please contact the company with any questions: HAUBER-Elektronik GmbH Fabrikstraße 6...
-
Page 3: Table Of Contents
HAUBER-Elektronik GmbH Contents Contents ............................. 3 Safety information ..........................4 Scope of this instruction manual ......................4 Vibration monitoring unit type HE050 ....................5 Intended use............................5 Scope of supply ..........................5 Documents and certificates ......................... 5 Application areas and example labels ....................6 Information on the cULus validity range .................... -
Page 4: Safety Information
HAUBER-Elektronik GmbH Safety information General The safety instructions are intended to protect people and property from damage and hazards that could arise as the result of improper use, incorrect operation or other misuse or devices, especially in explosive areas. Therefore, please read the operating instructions carefully before working on the product or operating it. -
Page 5: Vibration Monitoring Unit Type He050
HAUBER-Elektronik GmbH Vibration monitoring unit type HE050 The HE050-type vibration monitoring unit is an IO-Link sensor for measuring of vibration velocity, vibration acceleration and temperature and is used to measure and monitor absolute bearing vibrations in machines in line with DIN ISO 10816. -
Page 6: Application Areas And Example Labels
HAUBER-Elektronik GmbH Application areas and example labels Coding HE050.0.x.xxx HE050.1.x.xxx E507077 E507077 Safety integrity level SIL 1 classification Example labels Standards applied You can find a list of standards, including the related issue dates, in the EU type examination certificate for the vibration monitoring unit. -
Page 7: Technical Data
HAUBER-Elektronik GmbH Technical data 10.1 General data Both the measuring range and the frequency range can be adjusted via IO- Link. Measurement accuracy: ±10% (as per DIN ISO 2954) ±0,5% at calibration point Calibration point 1 g (rms) @159.2 Hz Cross-sensitivity: <... -
Page 8: Operating Range Of The Vibration Monitoring Unit
HAUBER-Elektronik GmbH 10.3 Operating range of the vibration monitoring unit The operating range is independent of the measuring range. It is deduced from the maximum acceleration, which is 15 g across all frequencies. The maximum measurable vibration velocity is determined by the formula ��... -
Page 9: Typical Frequency Response
HAUBER-Elektronik GmbH 10.4 Typical frequency response 10 Hz to 1,000 Hz The frequency response is recorded using a reference sensor. • 4 Hz. . . 1,200 Hz acceleration sensor Fig. 2: Typical frequency response 10 Hz–1,000 Hz Frequency in Hz... -
Page 10: Mechanical Data
HAUBER-Elektronik GmbH 10.5 Mechanical data Additional materials and fixings can be found in section "Coding HE050" on page 17. Housing material: Stainless steel V2A, material no.: 1.4305 (standard) Fixing: Width A/F 24 (hex) M8 x 8 mm Incline: 1.25 mm (standard) -
Page 11: Housing Dimensions
HAUBER-Elektronik GmbH 10.6 Housing dimensions Fig. 3: Housing with M12 connector All dimensions in mm M12 connector Width A/F 24 Fixing Measuring direction along the fixing axis Connection Plug, M12, 4-pole Pin 1: 24 V DC 4…20 mA or switching output... -
Page 12: Io-Link Description Of Functionality
HAUBER-Elektronik GmbH IO-Link description of functionality 12.1 Introduction IO-Link is the first standardised IO technology worldwide (IEC 61131-9) for the communication with sensors and also actuators. The powerful point-to-point communication is based on the long established 3-wire sensor and actuator connection without additional requirements regarding the cable material. -
Page 13: Switching Signals
HAUBER-Elektronik GmbH 12.6 Switching signals There are two configurable switching signals (Pre- and main alarm) available for each measured value and each process value. The signals can be output via IO-Link or an as switching output configured output channel respectively. -
Page 14: Installation And Commissioning
HAUBER-Elektronik GmbH Installation and commissioning 13.1 General notes Installation and commissioning the vibration monitoring unit must be performed by an authorised specialist who is familiar with the safety regulations when handling electrical components. Protect the connection cable and any extension cables from electrical interference or mechanical damage. -
Page 15: Assembly And Disassembly
HAUBER-Elektronik GmbH Assembly and disassembly 14.1 General notes Assembly and disassembly work on and with the vibration monitoring unit may only be performed by an authorised specialist familiar with the safety regulations governing handling electrical components. The housing of the vibration monitoring unit must be earthed via the fixing –... -
Page 16: Maintenance And Repair
HAUBER-Elektronik GmbH Maintenance and repair 15.1 General notes Repair and cleaning work on vibration monitoring units may only be performed by an authorised specialist familiar with the safety regulations governing handling electrical components. Before repair and cleaning disconnect the monitoring unit from the power... -
Page 17: Transport, Storage And Disposal
HAUBER-Elektronik GmbH Transport, storage and disposal The sensor must be protected from damaging environmental factors and mechanical damage during transport with the use of adequate packing. The sensor may not be stored in ambient temperatures outside the permitted operating temperature. -
Page 18: Eu Declaration Of Conformity
HAUBER-Elektronik GmbH EU declaration of conformity Declaration of conformity Norms and directives HAUBER-Elektronik GmbH EU Directive Norms Fabrikstraße 6 2014/30/EU EN 61000-6-2:2005 D-72622 Nürtingen-Zizishausen EN 61000-6-3:2007 + declares under our sole responsibility that the A1:2011 products listed below that relate to this...
