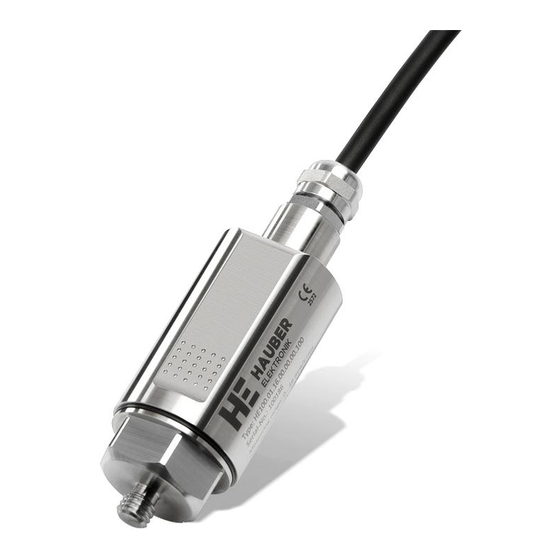

Vibration monitoring unit
HE102 series
•
Vibration acceleration (g, rms)
•
ATEX / IECEx / EACEx Zone 1 / 2 / 21 / 22
•
Analogue current output: 4–20 mA
•
Frequency ranges: 10 Hz–1,000 Hz
Manufacturing date:
Type designation:
Serial number:
Proc. Cont. Eq.
for Ord. Loc.
Proc. Cont. Eq.
for Haz. Loc.
1 Hz–1,000 Hz
Doc ID: M001-HE102 Stand: 2021-06-14
Betriebsanleitung
englisch
Advertisement
Table of Contents
Related Manuals for Hauber HE102 Series
Summary of Contents for Hauber HE102 Series

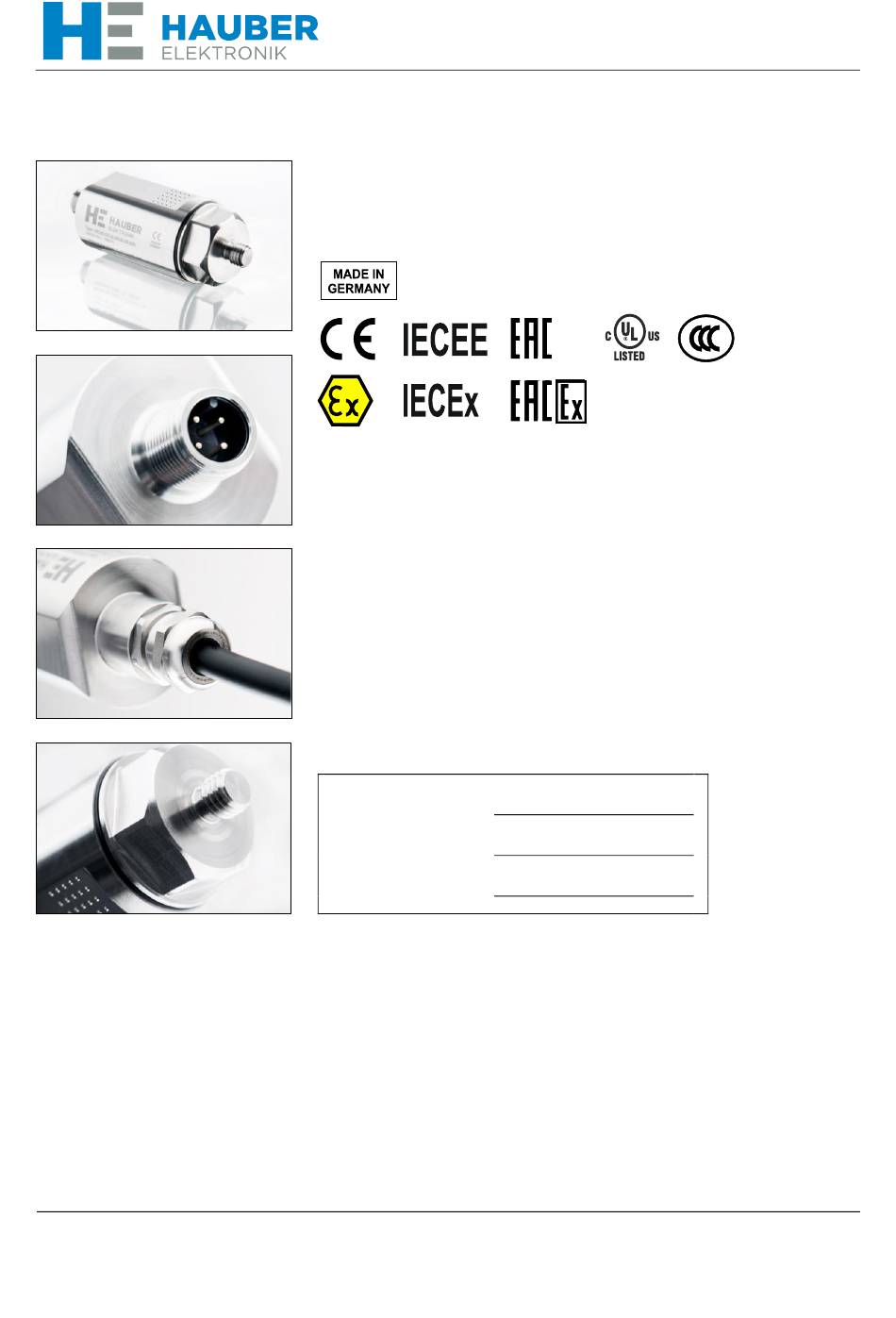

- Page 1 Vibration monitoring unit HE102 series Proc. Cont. Eq. for Ord. Loc. Proc. Cont. Eq. for Haz. Loc. • Vibration acceleration (g, rms) • ATEX / IECEx / EACEx Zone 1 / 2 / 21 / 22 • Analogue current output: 4–20 mA •...
- Page 2 HAUBER-Elektronik GmbH Operating instructions Vibration Monitoring Unit Type HE102 Standard and ATEX / IECEx / EACEx HE102 Version: 2021-06-14 Attention! Prior to commissioning the product, the instruction manual must be read and un- derstood. All rights reserved, including rights to translation.
-
Page 3: Table Of Contents
HAUBER-Elektronik GmbH Contents Contents ..............................3 Safety information ............................ 4 Scope of this instruction manual ......................4 The HE102-type vibration monitoring unit ....................5 Intended use ............................5 Scope of supply ............................5 Documents and Certificates ........................5 Transfer of liability when operating in potentially explosive atmospheres ..........5 Application areas and type plate examples ..................... -
Page 4: Safety Information
HAUBER-Elektronik GmbH Safety information General The safety instructions are intended to protect people and property from damage and hazards that could arise as the result of improper use, incorrect operation or other misuse or devices, especially in explosive areas. Therefore, please read the operating instructions carefully before working on the product or operating it. -
Page 5: The He102-Type Vibration Monitoring Unit
HAUBER-Elektronik GmbH The HE102-type vibration monitoring unit The HE102-type vibration monitoring unit is used for measuring and monitoring vibrations on machines. It has the following features: • Operating principle: The two-wire system. • Measurement value: The effective value (rms) of vibration acceleration in g. -
Page 6: Application Areas And Type Plate Examples
Proc. Cont. Eq. II 2D Ex tb IIIC T120 °C Db IECEx PTZ Ord. Loc. 18.0009 X Rev 2 Manufacturer: HAUBER-Elektronik GmbH Manufacturer: HAUBER-Elektronik GmbH Manufacturer: HAUBER-Elektronik GmbH Fabrikstraße 6 · 72622 Nürtingen GERMANY Fabrikstraße 6 · 72622 Nürtingen GERMANY Fabrikstraße 6 ·... -
Page 7: General Conditions For Safe Operation
HAUBER-Elektronik GmbH General Conditions for Safe Operation The following conditions must be met for safe operation in potentially explosive atmospheres. HE102.01 (protection ‘pressure resistant housing’) 10.1 Electrical data typ. max. Supply voltage 10 V DC 24 V DC 30 V DC... -
Page 8: Technical Data
HAUBER-Elektronik GmbH Technical data 11.1 General data Each sensor has one of the measuring and frequency ranges listed. Additional ranges upon request. Please specify the measuring and frequency range in your query. Measuring range: 0–2 g rms 0–6 g rms 0–4 g rms... -
Page 9: Permitted Operating Temperature Ranges
HAUBER-Elektronik GmbH 11.3 Permitted operating temperature ranges Version Ambient temperature Measuring head temperature (in the fixing area) Standard -40 °C to +60°C -40 °C to +125°C ATEX / IECEx / EAC -40 °C to +60 °C -40 °C to +125°C... -
Page 10: Operating Range Of The Vibration Monitoring Unit
HAUBER-Elektronik GmbH 11.4 Operating range of the vibration monitoring unit The operating range is independent of the measuring range. It is deduced from the maximum acceleration, which is 16.5 g across all frequencies. The maximum measurable vibration ve- locity is determined by the formula ��... -
Page 11: Typical Frequency Response
HAUBER-Elektronik GmbH 11.5 Typical frequency response 10 Hz–1,000 Hz (standard) The frequency response is recorded using a reference sensor. • 4 Hz. . . 1200 Hz acceleration sensor Fig. 2: Typical frequency response 10 Hz–1000 Hz Frequency in Hz Amplification in dB 1 Hz–1000 Hz... -
Page 12: Mechanical Data
HAUBER-Elektronik GmbH 11.6 Mechanical data Additional materials and fixings can be found in section "HE102 type code" on page 20. Housing material: Stainless steel V2A, material no.: 1.4305 (standard) Fixing: Width A/F 24 (hex) M8 x 8 mm Incline: 1.25 mm (standard) - Page 13 HAUBER-Elektronik GmbH 11.7.2 Version: ATEX / IECEx / EACEx Ex d Fig. 5: Housing with integrated cable All dimensions in mm Cable gland for integrated cable Width A/F 24 Fixing Measuring direction along the fixing axis...
-
Page 14: Connections
HAUBER-Elektronik GmbH Connections Version: Standard Plug, M12, 4-pole 10…30 V DC Pin 1: Pin 2: 4…20 mA Pin 3: Pin 4: Not Connected Version: ATEX / IECEx / EACEx pressure-resistant casing Ex d ATEX / IECEx / EACEx protection through housing, Ex tb integrated cable 10…30 V DC... -
Page 15: Assembly And Disassembly
HAUBER-Elektronik GmbH Assembly and disassembly 13.1 General notes Assembly and disassembly work on and with the vibration monitoring unit may only be perfor- med by an authorised specialist familiar with the safety regulations governing handling electrical components. The housing of the vibration monitoring unit must be earthed via the fixing –... -
Page 16: Installation And Commissioning
HAUBER-Elektronik GmbH Installation and commissioning 14.1 General notes Installation and commissioning the vibration monitoring unit must be performed by an authorised specialist who is familiar with the safety regulations when handling electrical components. Protect the connection cable and any extension cables from electrical interfe- rence or mechanical damage. - Page 17 Brown – 10–30 V DC Cable shield Evaluation unit earth potential EMC adapter (Hauber art. no. 10473) Please advise us if you are opting for the alternative earthing concept when enquiring. We will offer you the relevant sensor cable and the EMC adapter.
-
Page 18: Maintenance And Repair
HAUBER-Elektronik GmbH Maintenance and repair 15.1 General notes Repair and cleaning work on vibration monitoring units may only be performed by an authorised specialist familiar with the safety regulations governing hand- ling electrical components. Replace defective cables immediately! A defective vibration monitoring unit must be completely replaced. -
Page 19: Transport, Storage And Disposal
HAUBER-Elektronik GmbH Transport, storage and disposal The sensor must be protected from damaging environmental factors and mechanical damage during transport with the use of adequate packing. The sensor may not be stored in ambient temperatures outside the permitted operating tempe- rature. -
Page 20: He102 Type Code
HAUBER-Elektronik GmbH HE102 type code HE102. 00. 16. 01. 00. 00. 000 HE series 102 = transmitter 4–20 mA ~ g rms ATEX / IECEx / EACEx 00 = No ATEX / IECEx / EACEx 01 = ATEX / EACEx / IECEx Ex d and Ex tb (zones 1 / 2 / 21 / 22) 03 = UL Proc. -
Page 21: Eu-Declaration Of Conformity
HAUBER-Elektronik GmbH EU-Declaration of conformity Declaration of conformity Directives and Standards HAUBER-Elektronik GmbH EU-Directives Standards Fabrikstraße 6 2014/30/EU EN 61000-6-2:2005 D-72622 Nürtingen-Zizishausen EN 61000-6-3:2007 + hereby declare, bearing sole responsibility, A1:2011 that the products listed below to which this declaration refers, the essential health and...
