MEASUREMENT
To Turn on the Backlight
1) Push SETUP.
2) Push the POWER key. The first submenu
"AUTOOFF" appears.
3) Push the UP key. The submenu reads "LIGHT-
ING".
4) Push ENTER. The message shows the current
LIGHTING setting.
In this example, we'll change the lighting from "ON" to "AUTO".
5) Use the DOWN scroll key to change to "AUTO".
6) Push ENTER to set the LIGHTING mode and leave
the submenu.
7) Push EXIT to return to normal scale operation.

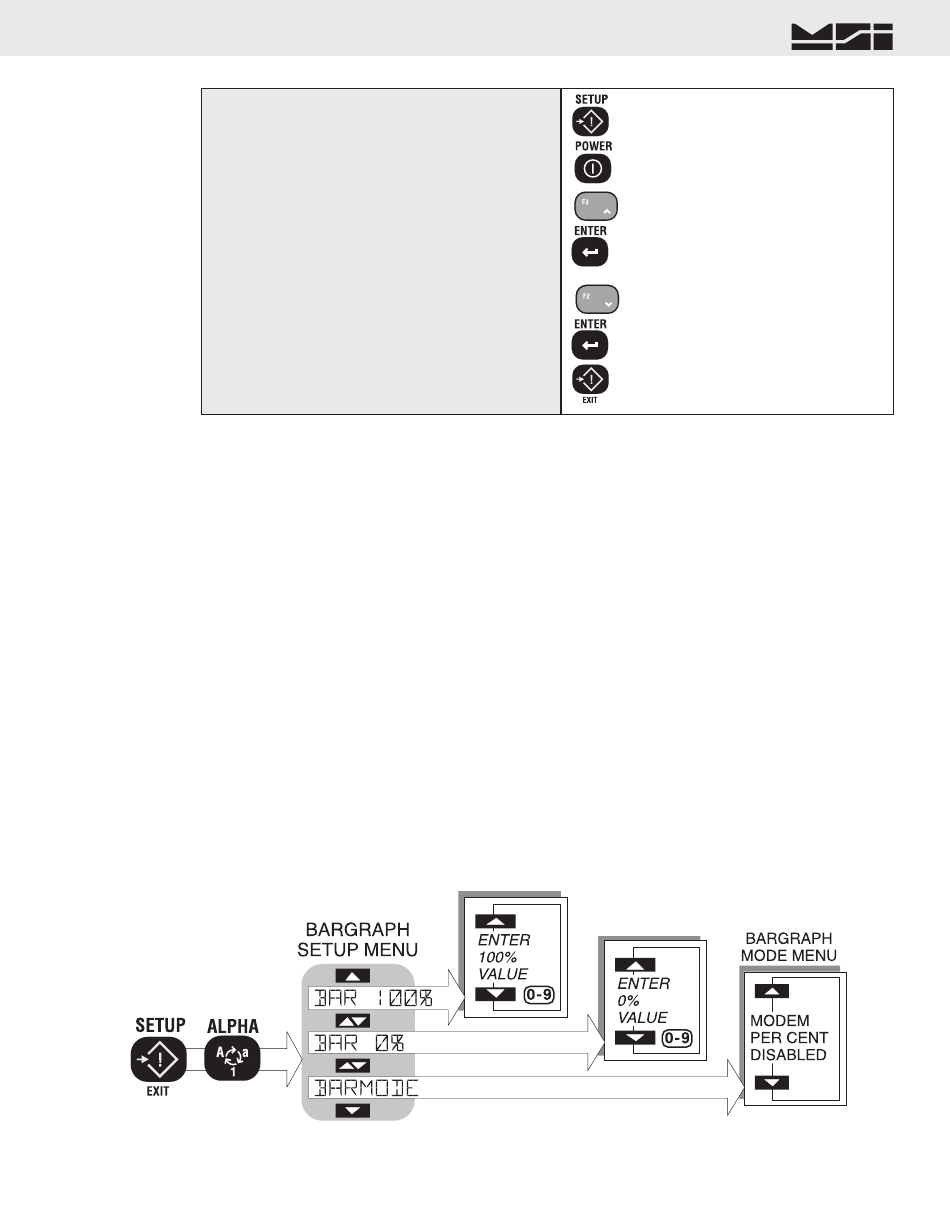

BAR GRAPH MENU
Controls the operation and calibration of the Bar graph. The Bar graph is used to monitor the RF network
activity, or the bar graph can indicate relative weight. In conjunction with the "NUM DISP" setup mode,
the BAR 0% and BAR 100% setting also control the numeric display PER CENT parameters. The 0% and
100% points of the bar graph can be set to any weight within the capacity of the scale. Normally a lower
weight is set for the 0% value. If desired, the 0% point can be set to a higher value than the 100% point if
pour down or similar applications dictate.
The BARMODE menu has three settings:
1) MODEM – Monitors the RF activity. Each segment represents successful packet transmissions. When
the Bar graph starts to shorten, multiple retries of packet transmissions are failing. This will happen when
the signal is blocked or nearly out of range.
2) PER CENT – The Bar graph represents a user programmed span of the weight reading. The 100% and 0%
settings are programmable anywhere within the capacity of the scale.
3) DISABLED – Turns off the Bar graph.
The 3750CS defaults to the MODEM setting of the Bar graph. The following procedure shows how to set up the Bar graph for PER CENT operation.
Software V1-15 to 1-20
SYSTEMS
INTERNATIONAL
SETUP
1
AUTOOFF
2
LIGHTING
3
ON
4
AUTO
5
LIGHTING
6
7
®
MSI-9000 CellScale
System • 3750CS User Guide
