Setup Total Menu - MSI CellScale 3750CS User Manual

3750CS
trucks, hoppers, etc., usually with a crane.
Mode 5, Onaccept: In conjunction with target weights set up in the set points menus, the Onaccept total mode
will automatically total settled readings that fall within the preselected accept weight window. See Section 8
"Set Points" for information on setting accept limits.
Auto Total Operation
1) Enable the desired Auto Total mode in the "SETUP TOTAL" menu (see "SETUP TOTAL"). Select either the
"AUTONORM" or the "AUTOPEAK" mode. Exit from the setup menu.
2) Use the TOTAL key to disable ("TOTALOFF") or enable ("TOTAL ON") Auto Total.
3) Place the weight to be totaled on the scale. The Total LED will flash three or more times when the weight
is settled. In high speed operations it is not necessary to wait for the three flashes. The total is accepted
when the first flash appears.
4) Remove the weight. The screen will read "x TOTAL" where x is the number of totaled weighments.
The total key is used as a Total On, Total Off, toggle key which is indicated briefly on the message display (i.e. "TOTAL ON" or "TOTAL OFF"). Auto Totaling
will only occur in the TOTAL ON mode. The Auto Total On mode is indicated by an "AUTO ∑" annunciator on the LCD. This feature allows the user to turn
off Auto Total for periods in which the scale needs to be used without adding to the total. Turning the Auto Total off does not erase the current total. See
"To Clear the Total Value" to learn how to erase the Total.
Rules for Auto Total:
1) Cannot be in motion. An auto total acceptable reading is indicated by three or more short flashes of
the Total LED.
2) Weight readings must be greater than the set Total Threshold.
3) Each reading added to total must be preceded by a return to zero (Net or Gross) or below the Total
Threshold.

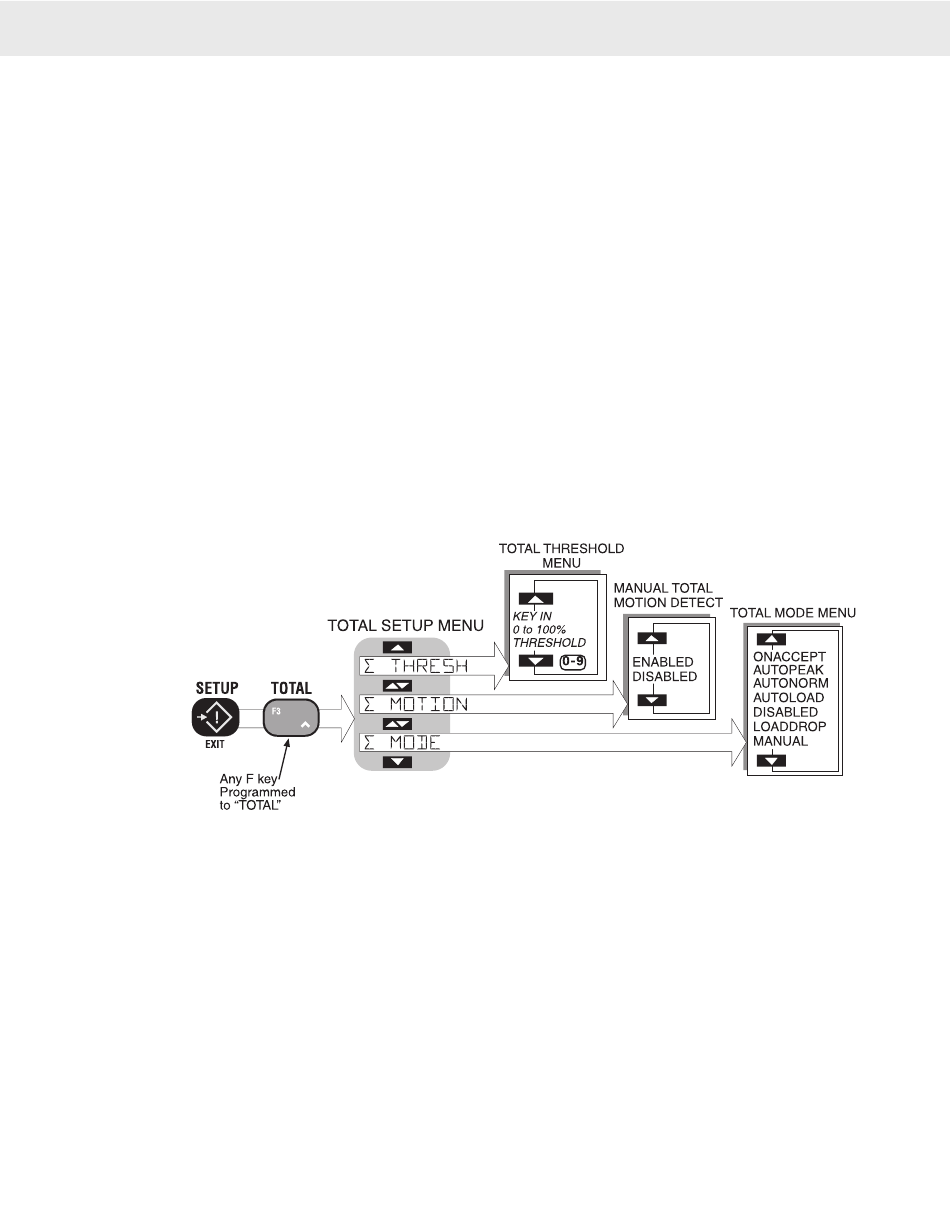

TOTAL MENU (SETUP TOTAL)
Allows Front Panel entry of Totalizing parameters.
∑ MODE
The Manual mode requires that the TOTAL key is pushed when the weight currently on the scale should be added
to the previously accumulated value. See description on previous page of the 7 total modes.
∑ MOTION
Enables or disables Motion Detection for Manual Total. Has no effect on AUTOTOTAL. This menu item
controls whether the scale has to be out of motion before it will total. In certain high vibration applications
it is sometimes desirable to turn off the motion detect so that Totalizing can occur. This feature is disabled
for legal-for-trade systems.
∑ THRESHOLD
Sets the weight value above which Totalizing is allowed. For example, setting the threshold to 10% on a
200 kg scale will set the threshold at 20 kg. Only weight above 20 kg will add to the Total. Once totaled,
the weight must return below the Total Threshold to enable the next totalizing. This prevents the same
weight from being totaled twice.
Another example: On a scale with a capacity of 1000 kg the user desires to Auto Total all weight that
exceeds 50 kg. Since 50 kg is 5% of 1000 kg, the Total Threshold is set to 5%. The Threshold is entered
in 1% increments.
