Harrod UK BWP-015 Quick Manual

Code:
BWP-015, BWP-016, BWP-017
1.75m Premier Fixed Boot Wiper, 1.75m Premier Free Standing Boot Wiper, 1.75m
Product:
Premier Socketed Boot Wiper
BWP-015: 1.75m Premier Fixed Boot Wiper
1. 1 x Premier Boot Wiper Frame - Black
2. 4 x BWP Large Brush 610x73x25mm
3. 2 x Boot Wiper Brush 152x73x25mm
4. 24 x 5.5x25 Hex Drill Screw Zinc cw g16 washer (BOL781)
BWP-016: 1.75m Premier Free Standing Boot Wiper
1. 1 x Premier Boot Wiper Frame - Black
2. 4 x BWP Large Brush 610x73x25mm
3. 2 x Boot Wiper Brush 152x73x25mm
4. 24 x 5.5x25 Hex Drill Screw Zinc c/w g16 washer (BOL781)
5.
1 x Premier F/S Boot Wiper Fittings
6. 3 x Premier Boot Wiper Free Standing Plate
.7. 6 x M10 C Form Washer
8. 6 x M10x30 Countersunk SS Screw
9. 6 x M10 Nut Protection Cap
10. 6 x M10 Nyloc Nut BZP
11. 1 x 6mm Allen Key
3
BWP-015
3
BWP-017

Pack Contents:

(PEP255)
(BSH005)
(BSH004)
(PEP255)
(BSH005)
(BSH004)
(contains)
(FPK315)
(PEQ363)
(BOL709)
(BOL334)
(CAP950)
(BOL202)
(BOL791)

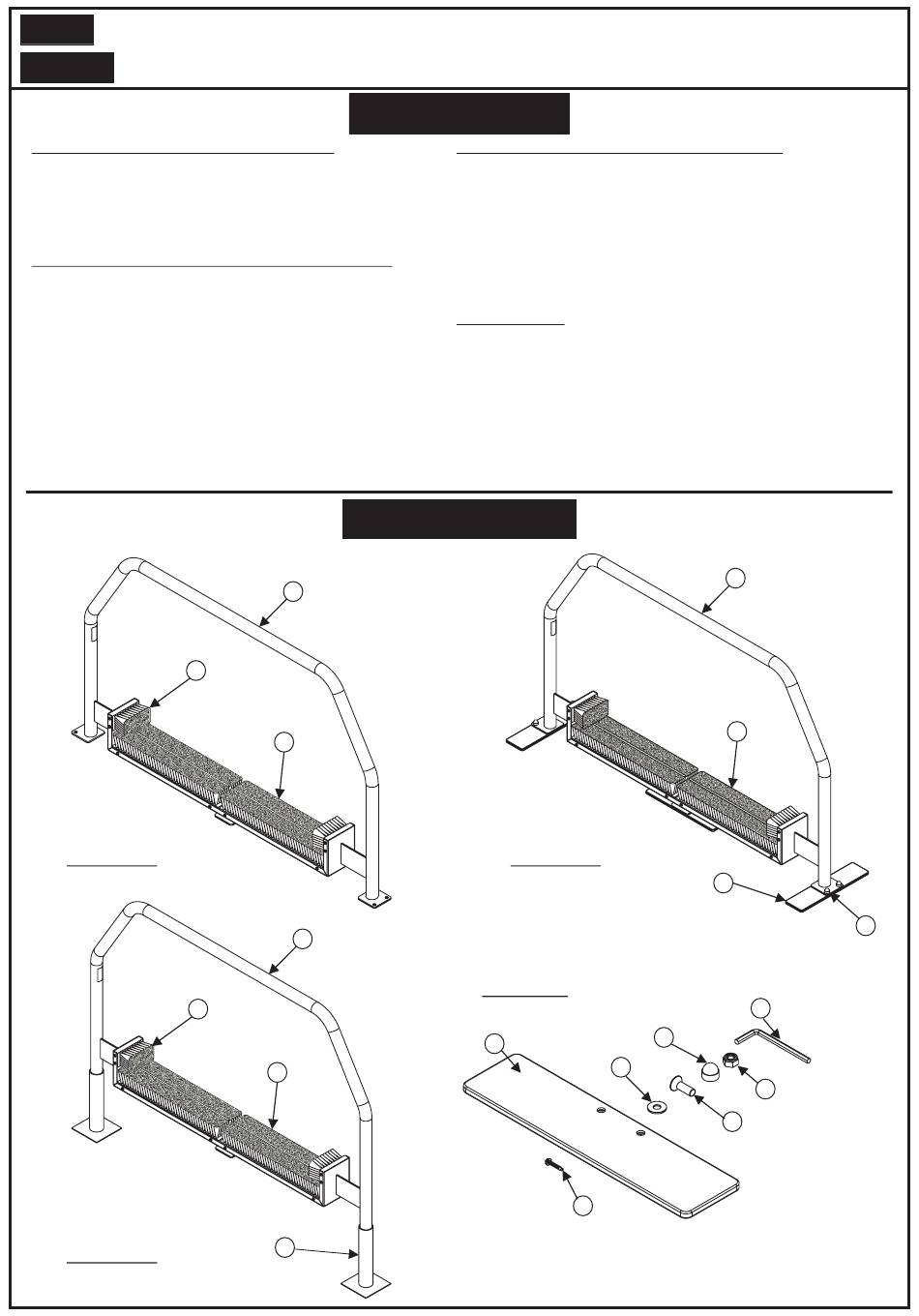

View of Product
1
2
12
2
13
BWP-017: 1.75m Premier Socketed Boot Wiper
12. 1 x Premier SKT Boot Wiper Frame - Black
13. 2 x Premier Boot Wiper Socket - Black
(Sockets are supplied with BWP-007)
2. 4 x BWP Large Brush 610x73x25mm
3. 2 x Boot Wiper Brush 152x73x25mm
4. 24 x 5.5 x 25mm Hex Drill Screw Zinc c/w g16 washer (BOL781)
Assembly Note:
Ground fixings are not supplied with
fittings, please contact your supplier and quote the following part
numbers;
For Grass Surfaces:
™
ANC-011: 6 Spirafix Anchor Kit
BOL135: M12 x 60 Hex Bolt BZP
For Concrete Surfaces:
ANC-025: Team Shelter Chem Bolt Set (12)
BOL102: M12 Nylock BZP
BWP-016
Fittings;
6
7
4
© Harrod UK Limited
BWP-015. For suitable
1
2
6
11
9
10
8
Fig.1
INS017
Revision 2
29/11/2016
(PEP098)
(PEP190)
(BSH005)
(BSH004)
9
