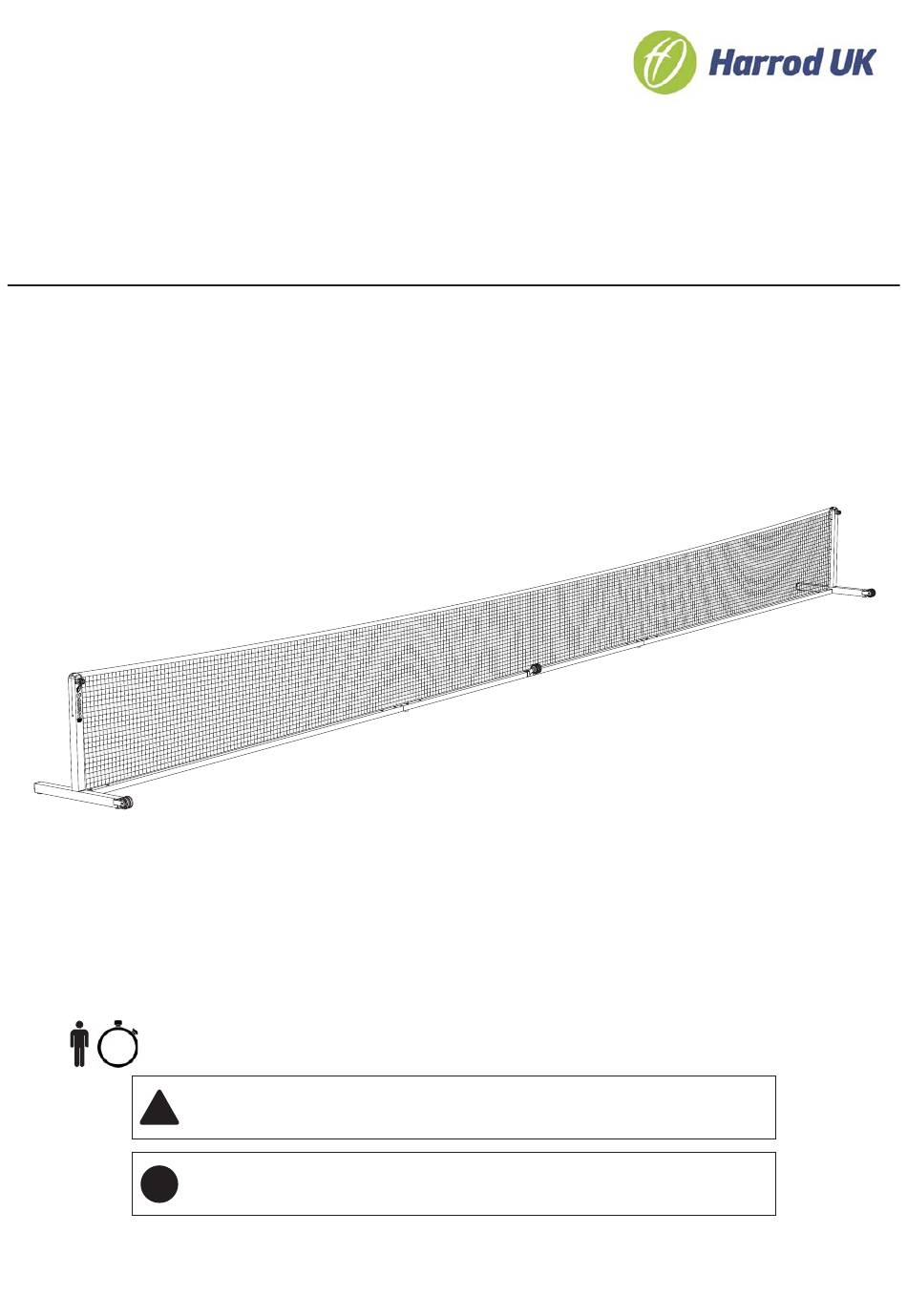

ASSEMBLY INSTRUCTIONS
TEN-109
Wheelaway Freestanding Tennis Posts
*net sold seperately
A minimum of 1 person is required for this assembly.
45
Estimated 45 minutes assembly time.
mins
WARNING:
!
damage to both the posts and court surface.
i
IMPORTANT: Please read these assembly instructions carefully before
starting to assemble your tennis posts.
Do
not
over tension tennis net. Doing so may cause
INS679
Revision 0
13/03/2017
Advertisement
Table of Contents
Related Manuals for Harrod UK Wheelaway TEN-109
Summary of Contents for Harrod UK Wheelaway TEN-109
- Page 1 ASSEMBLY INSTRUCTIONS INS679 Revision 0 TEN-109 13/03/2017 Wheelaway Freestanding Tennis Posts *net sold seperately A minimum of 1 person is required for this assembly. Estimated 45 minutes assembly time. mins WARNING: over tension tennis net. Doing so may cause damage to both the posts and court surface. IMPORTANT: Please read these assembly instructions carefully before starting to assemble your tennis posts.
- Page 2 Code TEN-109 Product Freestanding Tennis Posts Pack Contents Freestanding Tennis Posts Winder Post Dummy Post Centre Bar End Bar Connector Channel Optional Extras TEN-081 T4 Adjuster Set Tools Required 1x 5mm Allen Key (Supplied) 1x 6mm Allen Key (Supplied) 2x 13mm Spanners 13mm FEP680 FEP681...
- Page 3 Code TEN-109 Product Freestanding Tennis Posts Fittings Pack Contents FPK681: Freestanding Tennis Fittings 100mm Wheel L/H Wheel Bracket R/H Wheel Bracket M8x100mm Hex Bolt 10. M8x30mm Button Screw 11. M8 Nyloc Nut WHE025 PEP655 PEP656 12. M5 Post Hook 13. M6 Eyebolt 14.
- Page 4 Code TEN-109 Product Freestanding Tennis Posts Assembly Instructions Insert the Connector Channels (5) into the Centre Bar (3) and secure using two M10x25mm Button Screws (14) and two M10 Washers (15) each end. Slide the End Bars (4) over the Connector Channel and secure using two M10x25mm Button Screws and two M10 Washers.
- Page 5 Code TEN-109 Product Freestanding Tennis Posts Insert the M6 Eyebolt (13) into the centre rivnut in the Centre Bar. Fix the Wheel Brackets (7,8) to the Centre Bar Using an M8x30mm Button Screw (10) and M8 Nylon Washer. Ensure the brackets are on the same side as the wheels on the posts. Attach the 100mm Wheels (6) to the Brackets using the M8x100mm Hex Bolt (9), M8 Nyloc 13mm Nut (11) and three M8 Nylon Washers.
- Page 6 Code TEN-109 Product Freestanding Tennis Posts Attaching the Net TEN-002: P17 Polythene Tennis Net Sold Seperately. Thread the blank end of the headline Wrap the loop end of the net headline through the top of the Winder Post, around the stud on the Dummy Post. behind the brass pulley.
- Page 7 Code TEN-109 Product Freestanding Tennis Posts Operating Instructions WARNING: Minimum of two people required to move this tennis system. Wear appropriate footwear when moving posts. With one person at each end of the system, place one foot on the bottom wheel to anchor the posts and pull the top of the upright towards the wheel.
