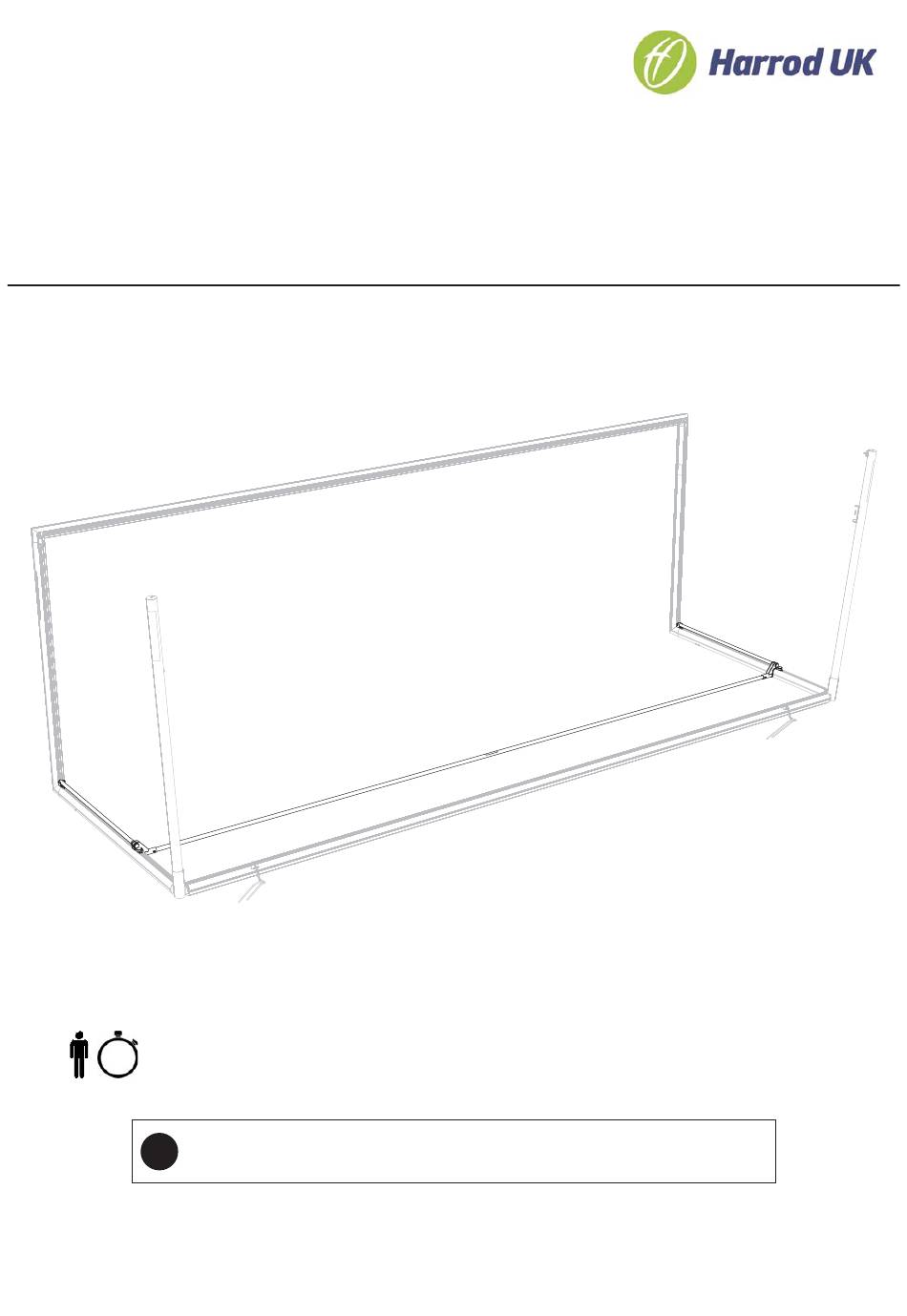

ASSEMBLY INSTRUCTIONS
FBL-698
Portagoal Bottom Hinged Net Support
goal shown for reference
One person alone can assemble this product
60
mins
Estimated 60 minutes assembly time
IMPORTANT: Please read these assembly instructions carefully
i
before starting to assemble your Net Support
INS698
Revision 0
17/10/2017
Advertisement
Related Manuals for Harrod UK FBL-698
Summary of Contents for Harrod UK FBL-698
- Page 1 ASSEMBLY INSTRUCTIONS INS698 Revision 0 FBL-698 17/10/2017 Portagoal Bottom Hinged Net Support goal shown for reference One person alone can assemble this product mins Estimated 60 minutes assembly time IMPORTANT: Please read these assembly instructions carefully before starting to assemble your Net Support...
-
Page 2: Pack Contents
Code FBL-698 Product Portagoal Bottom Hinged Net Support Pack Contents Bottom Hinged Net Support Backbar Sidebar Tools Required 1x 17mm Spanner 17mm PEP944 (FEP944) 2x 13mm Spanner 13mm 1x 4mm Allen Key (supplied) 1x 8mm Allen Key Required Net PEP943... - Page 3 Code FBL-698 Product Portagoal Bottom Hinged Net Support Fittings Pack Contents FPK698: Portagoal Bottom Hinged Net Support Fittings A. L/H Net Bar Bracket B. R/H Net Bar Bracket C. Folded Bracket D. Mount Plate Handwheel M10x25mm Square Screw G. M8x55mm Hex Bolt H.
- Page 4 Code FBL-698 Product Portagoal Bottom Hinged Net Support Fittings Pack Contents FPK698: Portagoal Bottom Hinged Net Support Fittings K. M8 Nutcap M8 Washer M. M8 Nylon Washer N. 4mm Hex Key O. Net Support Strap CAP951 BOL715 BOL722 BOL793 STR698...
- Page 5 Code FBL-698 Product Portagoal Bottom Hinged Net Support Assembly Instructions Remove the net tension and unclip the net from the sidebars before beginning assembly of your hinged net support. IMPORTANT: If retro fitting UEFA uprights and the Bottom Hinged Net Support to an existing Euro Portagoal (FBL- 683/674) please skip to step 2a overleaf.
- Page 6 Code FBL-698 Product Portagoal Bottom Hinged Net Support Replace the upright with the UEFA portagoal upright and re-fit the joining plate. Place the Folded Bracket (C) over the two front square screws and secure with two M10 Binx Nuts (I).
- Page 7 Code FBL-698 Product Portagoal Bottom Hinged Net Support Weave the Net Sidebar assembly through the bottom row of meshes in the side netting, repeat for both sides. Weave the Backbar (1) through the bottom row of meshes in the back netting.
- Page 8 Code FBL-698 Product Portagoal Bottom Hinged Net Support Locate the Net Bar Brackets in the channel of the Sidebars. Fix the Net Sidebars to the Folded Brackets using an M8x55mm Hex Bolt, Two M8 Washers (L), two M8 Nylon Washers, 13mm an M8 Nyloc Nut and an M8 Nutcap per Net Sidebar.
- Page 9 Code FBL-698 Product Portagoal Bottom Hinged Net Support To release the Net Support loosen off the handwheel and slide the Screw/Handwheel assembly back. Hinge the Net Support up at the Folded Bracket and secure in place using the Net Support Straps (O).
