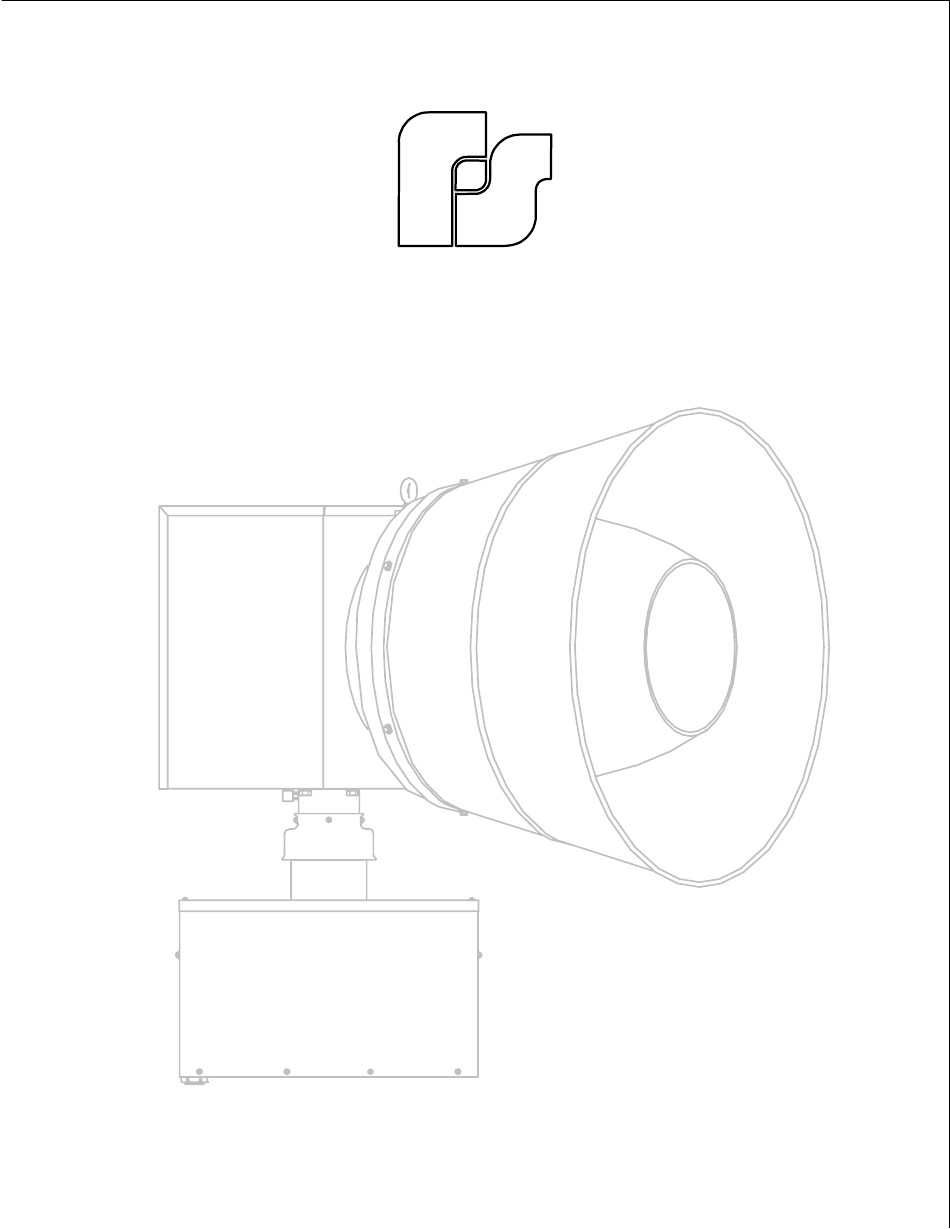

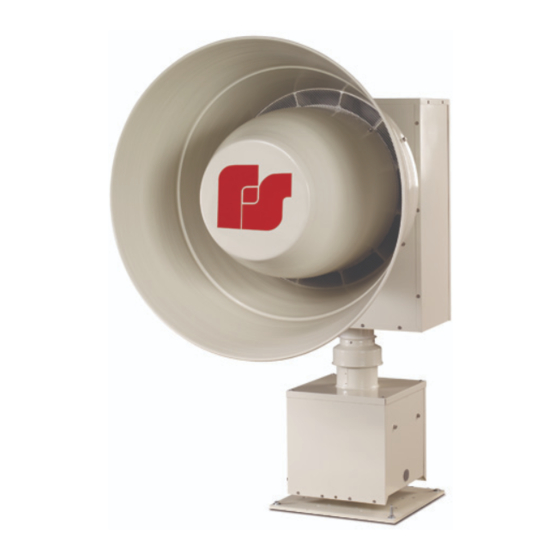

- Page 1 FEDERAL SIGNAL CORPORATION’S MODEL 2001DC BATTERY OPERATED 2001 SIREN CONTROL SYSTEM WITH FEDERAL CONTROLLER, ONE-WAY SERIES (DFC) INSTALLATION, OPERATION & SERVICE MANUAL 255249 Rev. H 07/01...
- Page 2 SAFETY NOTICES People’s lives depend on your safe installation, service, and operation of our products. It is important to read, understand and follow all instructions shipped with this product. In addition, listed below are some other important safety instructions and precautions you should follow: INSTALLATION &...
- Page 3 SAFETY NOTICES People’s lives depend on your selection of suitable equipment and installation sites and your safe installation, service, and operation of our products. Follow Federal Emergency Management Agency (FEMA) recommendations. Obtain copies of the latest revision of FEMA’S “Outdoor Warning Guide (CPG 1-17) and “Civil Preparedness, Principals of Warning (CPG 1-14) by calling FEMA at (202) 646-3484 or writing to them at 500 C St., South West, Washington, D.C.
- Page 4 Limited Warranty The Signal Division, Federal Signal Corporation, warrants each new product to be free from defects in material and workmanship, under normal use and service, for a period of two years (one year for VAR, EAR, EAS, and Federal software products) on parts replacement and one year on labor from the date of delivery to the first user- purchaser.
- Page 5 WARNING Read and understand the information contained in This manual, before attempting to install or service The siren. Pay careful attention to the following notices located on the equipment. A. NOTICES- EXTERNALLY PLACED. B. NOTICES – INTERNALLY PLACED.
-
Page 6: Table Of Contents
TABLE OF CONTENTS Paragraph Page SECTION I - CHARACTERISTICS Scope of this Manual Control Unit/Battery Box Description Signal Description Options SECTION II - SPECIFICATIONS System Power Batteries and Charging System AC Power Options SECTION III - INSTALLATION Control Unit/Battery Box Location Control Unit/Battery Box Installation Electrical Connections Pre-operation Checkout... -
Page 7: Section I - Characteristics
2-1., even in the event of a power failure. The 2001DC has ten separately fused circuits to protect the siren controller. Two AC power fuses (F1 & F2) protect the chargers and optional battery warmers respectively. The main siren motor is protected by F3, a 200A DC fuse. -
Page 8: Signal Description
1-3. SIGNAL DESCRIPTION. The Model 2001DC siren controller is capable of producing a Steady signal , Wailing signal, and a Fast Wail or Fire signal. The Steady signal is frequently used as a Civil Defense “Alert” signal. The Wailing signal is often used as a Civil Defense “Attack” signal. The Fast Wail or Fire signal, is often used to summon local fire men. -
Page 9: System Power
SECTION II SPECIFICATIONS 2-1. SYSTEM POWER. AC Voltage ……………………………………………. 120VAC (+/- 10%), 60Hz or 208/220/ (specify when ordering) 240VAC (+/- 10%), 60Hz Current Requirements ………………………………… 4A (nom.) Fusing* (User Provided) ........……10A fast DC Battery Power Output Voltage …………………………………… 48VDC Operating Current from Batteries 100A (nom.) Standby Current ………………………………….. -
Page 10: Ac Power Options
Dimensions (HWD) Control Box ………………………………….. 19.75" x 19.75" x 12.25" (NEMA 4) 502mm x 502mm x 311mm Battery Box ………………………………….. 24" x 24" x 11" (vented NEMA 4) 610mm x 610mm x 280mm Overall (including mounting hardware) …….. 64" x 24" x 13.81" 1626mm x 610mm x 352mm Shipping Weight .............…... -
Page 11: Section Iii - Installation
1-1/4" hole, and four 5/8" holes. The 1-1/4" hole provides a convenient point for lifting the Control Unit/Battery Box. To attach the Control Unit/Battery Box to the pole proceed as follows: (Refer to 2001DC manual) If batteries have been previously installed, remove batteries before turning the Control Unit/Battery Box upright. -
Page 12: Electrical Connections
Use the crane to hold the Control Unit/Battery Box assembly against the pole. Using the four 5/8" holes in the channel as a template, locate four hole locations on the pole. Drill a 3/8" hole at each of the four locations. Drill each hole at least 3-1/2" (90mm.) deep. - Page 13 Siren Connections. The 2001DC wiring diagram is shown in figures 3-3. All interconnections between the siren and Control Unit are accomplished using three wires. Two user provided 2 AWG wires provide operating power to the siren motor. An additional 12 AWG wire provides operating power to the rotator motor.
- Page 14 Connections. As shipped from the factory, the battery charger in the Control Unit is configured for 120VAC operation (see section 5-2 for operation at 208/220/240 VAC). Route 1" conduit (steel preferred) between a user-supplied fused disconnect switch and the user-supplied conduit fitting in the bottom of the Control Unit cabinet. Route two user-supplied wires through the conduit that was just installed between the Control Unit and the fused disconnect switch.
-
Page 17: Pre-Operation Checkout
3-4. PRE-OPERATION CHECKOUT. After the siren has been completely installed, perform the following checks before putting the siren into service. WARNING The output sound level of a siren is capable of causing severe hearing discomfort or permanent hearing damage. Therefore, ALWAYS wear hearing protection and minimize exposure time when performing tests or maintenance on the siren. -
Page 19: Section Iv - Service And Maintenance
Refer to Section 4-3. 4-2. PREVENTIVE MAINTENANCE. Test the 2001DC for proper operation at least once a month. A daily test at noon, curfew, or other selected time is preferred. This not only enhances the usefulness of the siren, but instills public confidence in the reliability of the warning system, and provides additional confirmation of it being prepared for operation in an emergency. -
Page 20: Problem Checklist
What is voltage supplied to TB3? What are voltage readings of the individual batteries? If assistance is required after completing the checklist, contact: FWS Service Department Federal Signal Corporation 2645 Federal Signal Drive University Park, Il. 60466 1-800-524-3021 In Illinois:... -
Page 22: Section V - Options
SECTION V OPTIONS 5-1. MODEL 2001TR TRANSFORMER/RECTIFIER DANGER Electrocution or severe personal injury can occur when making electrical connections, drilling holes, or lifting equipment. Therefore, installation should only be performed by experienced electricians. This product is to be installed in accordance with national and local electrical codes. GENERAL. - Page 23 WIRING. NOTE Federal recommends using wire no smaller than 3AWG between the transformer and the Control Unit/Battery Box. To perform the wiring, proceed as follows (see figures 5-1 and 5-2). Disconnect AC and de-energize transformer before changing taps. Connect a red wire from the transformer terminal block (+) to relay K3-3 of the control unit cabinet. Connect a black wire from the transformer terminal block (-) to terminal block TB2-2 of the control unit cabinet.
- Page 24 Figure 5-2 Transformer Rectifier Wiring To Control Unit Figure 5-3 2001tr Transformer Rectifier Parts List...
-
Page 25: Model 2001-240
5-2. MODEL 2001-240 STEPDOWN TRANSFORMER DANGER Electrocution or severe personal injury can occur when making electrical connections, drilling holes, or lifting equipment. Therefore, installation should only be performed by experienced electricians. This product is to be installed in accordance with national and local electrical codes. GENERAL. -
Page 26: Radio Controller
5-3. 2001HTR BATTERY WARMERS. DANGER Electrocution or severe personal injury can occur when making electrical connections, drilling holes, or lifting equipment. Therefore, installation should only be performed by experienced electricians. This product is to be installed in accordance with national and local electrical codes. In locations where temperatures may drop below freezing for 72 hours or more, the optional battery warmers are recommended to maintain battery efficiency.
