VV-ZELA-RB

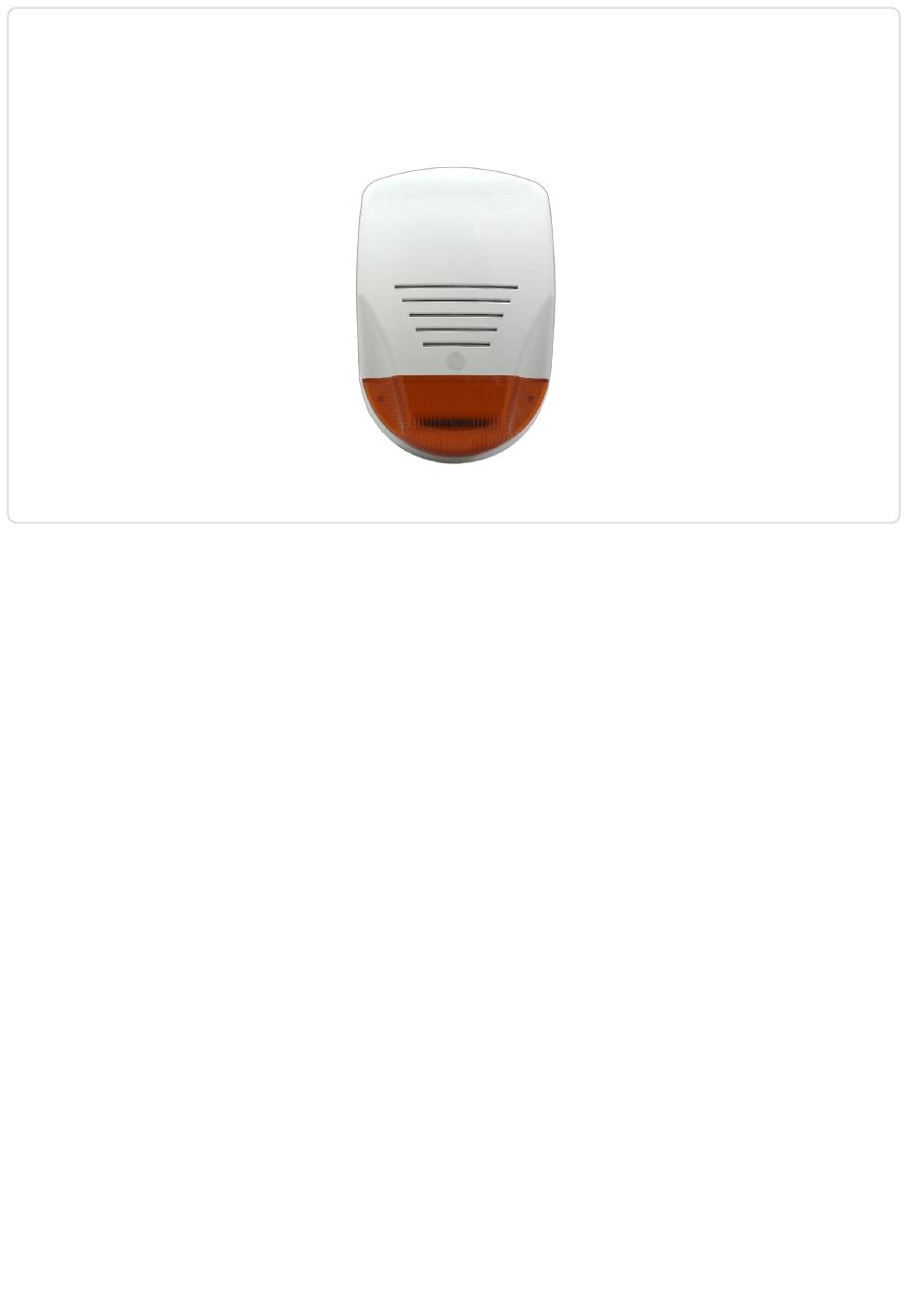

BI-DIRECTIONAL WIRELESS BATTERY SIREN
Thank you for choosing our product.
We invite you to read carefully these directions before installing and using this device in order to fully make the most of all its capacities.
INDEX
1.
DESCRIPTION .................................................................................................................................................... 2
2.
COMPATIBILITY ................................................................................................................................................ 2
3.
TECHNICAL ....................................................................................................................................................... 3
TERMINALS .......................................................................................................................................................... 3
LED....................................................................................................................................................................... 3
DIP-SWITCH - FUNCTIONS ..................................................................................................................................... 4
4.
RESET ............................................................................................................................................................... 4
5.
PAIR THE SIREN WITH THE CONTROL PANEL (LEARNING) .................................................................................. 5
CONTROL PANELS WITH "BI-DIRECTIONAL LEARNING" FUNCTION ......................................................................... 5
CONTROL PANELS WITHOUT THE "BI-DIRECTIONAL LEARNING" FUNCTION............................................................ 5
6.
VISUAL FEEDBACK ............................................................................................................................................. 6
7.
MAINTENANCE ................................................................................................................................................. 6
8.
TAMPER ........................................................................................................................................................... 6
9.
LOW BATTERY ................................................................................................................................................... 6
10.
WARNINGS ................................................................................................................................................... 6
Installation and use manual
15.10-M:1.0.1-H:SI-02v1-14-F:RC7

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VV-ZELA-RB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Duevi VV-ZELA-RB

Summary of Contents for Duevi VV-ZELA-RB

  • Page 1 VV-ZELA-RB BI-DIRECTIONAL WIRELESS BATTERY SIREN Installation and use manual 15.10-M:1.0.1-H:SI-02v1-14-F:RC7 Thank you for choosing our product. We invite you to read carefully these directions before installing and using this device in order to fully make the most of all its capacities.
  • Page 2 1. DESCRIPTION VV-ZELA-RB is a universal wireless siren with armed/disarmed system signalling and sounder characteristics similar to traditional wired siren. Power supply Battery powered: lithium 7,2 V / 13 Ah or alkaline 7,5 V / 12 Ah (not provided). Autonomy about 2 years (average use: about 50 alarm sounds + 4 daily arming/disarming).
  • Page 3 3. TECHNICAL Battery: lithium 7,2 V - 13 Ah or alkaline 7,5 V - 12 Ah POWER SUPPLY Batteries not provided ABSORPTION Stand-by: 73 µA Alarm: 850 mA 5 cycles ALARM CYCLES SINGLE ALARM TIME About 1 min ACOUSTIC POWER 115 dB/m TOTAL >...
  • Page 4 DIP-SWITCH - FUNCTIONS BI-DIREZIONAL LEARNING DIP1 Start the BI-DIRECTIONAL learning procedure to pair the siren with control Normal working Learning panel. Complete the procedure starting the same operation on control panel. “BY DETECTION” LEARNING Starts the “by detection” learning to pair the siren with control panels without Learning the BI-DIRECTIONAL function.
  • Page 5 5. PAIR THE SIREN WITH THE CONTROL PANEL (LEARNING) DURING THE LEARNING PROCEDURE AVOID TRANSMISSSION FROM OTHER RADIO DEVICES (EG.: DETECTORS). ALWAYS MOUNT THE ANTENNA ON CONTROL PANEL FOR RADIO RECEIVING. THE SIREN CAN BE LEARNED ONLY IN ONE OF THE TWO MODES (“BI-DIRECTIONAL” OR “DETECTION”) CONTROL PANELS WITH “BI-DIRECTIONAL LEARNING”...
  • Page 6 6. VISUAL FEEDBACK SIREN CE100-8 / CE100-3GSM CE60-3GSM 1 long flash Total arming Total arming 1 long flash + 1 short flash Partial 1 arming Partial arming 1 long flash + 2 short flashes Partial 2 arming Outdoor arming 1 long flash + 3 short flashes Partial 3 arming 3 short flashes Disarming...
  • Page 7 THE MANUFACTURER SHALL NOT BE LIABLE FOR ANY IMPROPER USE OF THE PRODUCT, INCORRECT INSTALLATION OR FAILURE TO COMPLY WITH INSTRUCTIONS OF THIS MANUAL AND THE LAW REGARDING ELECTRICAL SYSTEMS. THIS DEVICE WORKS WITH LITHIUM 7,2 V / 13 Ah BATTERY OR ALKALINE 7,5 V / 12 Ah (NOT INCLUDED) HANDLE WITH CARE.
  • Page 8 Pursuant to Legislative Decree No. 49 of 14 March 2014 “Implementation of Directive 2012/19 / EU on waste electrical and electronic equipment (WEEE)”. The symbol of the crossed-out dustbin indicates that the product at the end of its life must be collected separately from other waste.
