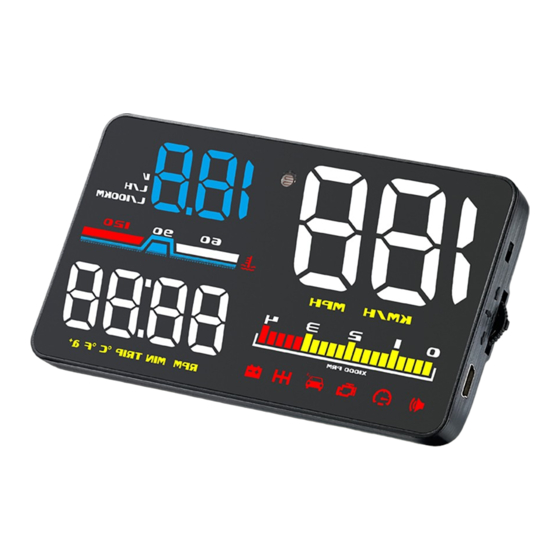

Car Head Up Display
Model:D5000

Introduction

HUD short for Head Up Display. It displays driving datas on the front windshield such
as speed, RPM, fuel consumption, water temperature, voltage etc on the car front
window glass; avoiding drivers unsafety because of watching the instrument while
driving. Drivers can read the driving information instantly, and can always keep the
best state on the way with HUD

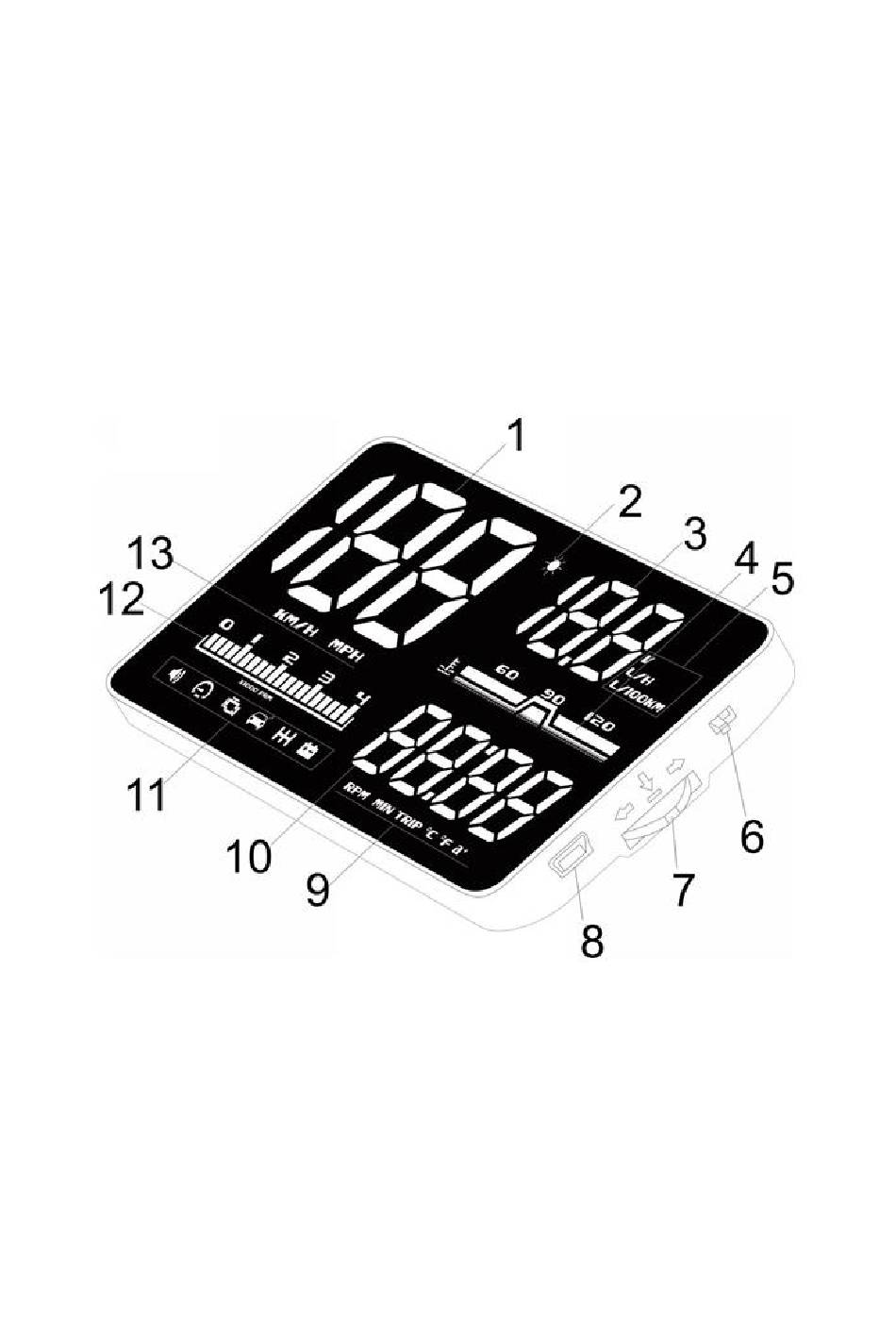

HUD Display functions

1 Driving Speed
2 Light sensor: Automatically adjust the brightness according to the environment
3 Multi-Functions area 1: battery voltage, Instantaneous fuel consumption,100 km
instantaneous fuel consumption
4 Water temperature icon
5 Unit icon: V=voltage, L/H=(Liter/Hour), L/100KM=100 km instantaneous fuel
consumption
6 Power button
7 Setting button
8 USB port

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OBD2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Eling OBD2

  • Page 1 Car Head Up Display Model:D5000 Introduction HUD short for Head Up Display. It displays driving datas on the front windshield such as speed, RPM, fuel consumption, water temperature, voltage etc on the car front window glass; avoiding drivers unsafety because of watching the instrument while driving.
  • Page 2 9 Unit icon: RPM=Engine speed, MIN=single driving time, TRIP=single driving distance,℃=Celsius, ° F=Fahrenheit, a+=100 km acceleration time 10 Multi-Functions area 2: Engine Speed, single driving time, single driving distance, water temperature,100 km acceleration time 11 The icon shows: buzzer, over speed alarm, fault code, fatigue driving, shift reminder, voltage 12 RPM icon 13 Speed unit: KM/H and MPH...
  • Page 3 (2) after entering into the setting menu, to add the default value 2 Short pull down (1) switch the multi functions area 2: Engine Speed/single driving time/single driving distance/water temperature/100 km acceleration time (2) after entering into the setting menu, to decrease the default value 3 Short press in (1) switch the display mode (normal model/high speed mode/simple mode) (2) after entering into the setting menu, to add the menu...
  • Page 4 Enter into the setting menu menu Function Adjust Description Default Setting picture range value If HUD speed is different with Speed 50-150 dashboard, it can be adjusted Fuel If HUD fuel is different with 50-150 Consumption dashboard, it can be adjusted RPM alarm will work when it RPM alarm 10-75...
  • Page 5 Water Water temperature alarm will on temperature 50-150 when it higher than 120 ° C alarm Voltage alarm turns on when it Voltage alarm 0-15.0 10.0 lower than 10.0V Fatigue Fatigue driving alerts after four 1.0-8.0 driving alarm hours driving Speed unit 1=KM, 2=MPH Water...
  • Page 6 2.When HUD power on, HUD only shows the car voltage and be automatic power off after 30 seconds driving. HUD only available for cars with OBD2 and EU-OBD agreement(European region: after 2003 years, Other region: after 2007 years) HUD Products don’t support JOBD and OBDI protocol.
  • Page 7 7 Stop-star cars Vertical press in 5 seconds to enter into menu setting, short press 14 times to menu 14, the default parameter is 20, up or down change it to 180, then power off time will be 3 minutes,then vertical press in 5 seconds to save and exit,HUD will power off in 3 mins.

This manual is also suitable for:

D5000
