anual for Head Up Display
M
Model:M6

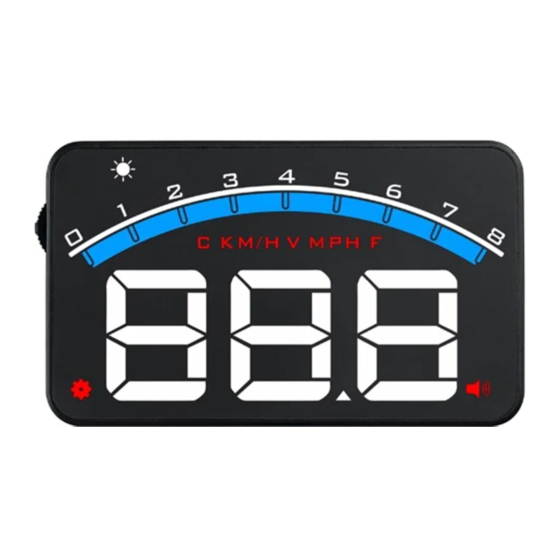

HUD short for Head Up Display.It displays driving datas on the front windshield such
as speed, rpm, fuel consumption,water temperature,voltage;avoiding drivers become
dangerous because of watching the instrument while driving.Drivers can read the
driving information instantly,and can always keep the best state on the way with
HUD.
HUD Main Functions&Features:
1.Available for cars with OBD2 and EUOBD port(Car automatic diagnosis
system) ,plug and play
2. Screen 3 inch HD display
3. Multi-color design makes the screen more abundant and easier to read
4. Nano-technology to eliminate double reflections,more clear.
6.Rich Contents: speed,rpm,water temperature,voltage,low voltage alarm,high water
temperature alarm,over speed alarm, freely switch between kilometers&miles.
6. Auto power on/off: HUD start and off with vehicle started and shutdown, effective
protection of the car battery;retaining the manual switch mode,more easy to control
HUD.
7. Automatic and manual brightness adjustment mode,driving without glare

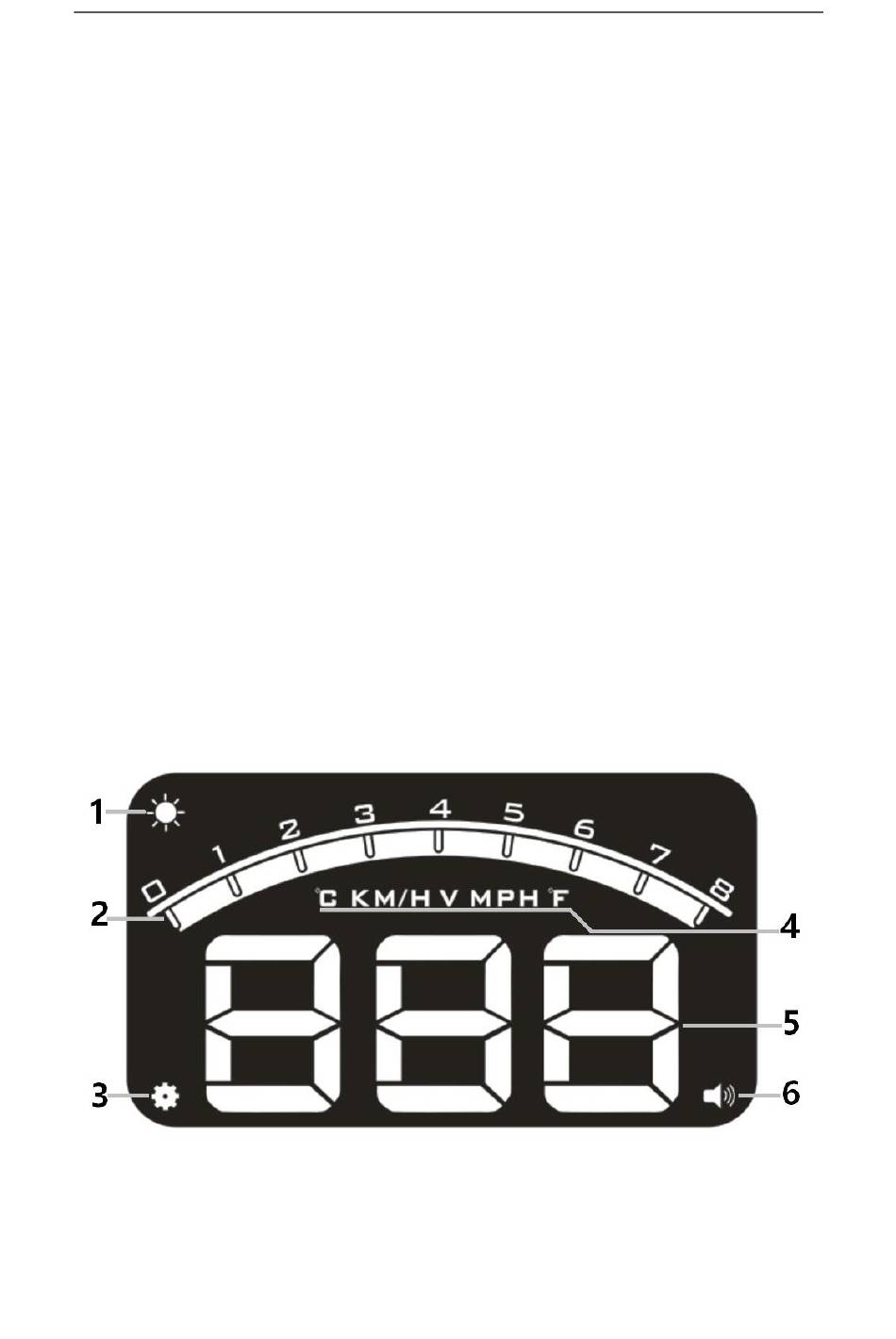

Display Function:

1.Light sensor: Changes the unit's display brightness to suit the constantly changing
environment whilst driving.
2.Engine speed
3.Setting icon
1
