Head Up Display
User manual
Model: D2000
Introduction
HUD short for Head Up Display. It displays driving datas on the front windshield such
as speed, RPM, fuel consumption, water temperature, voltage etc on the car front
window glass; avoiding drivers unsafety because of watching the instrument while
driving. Drivers can read the driving information instantly, and can always keep the
best state on the way with HUD

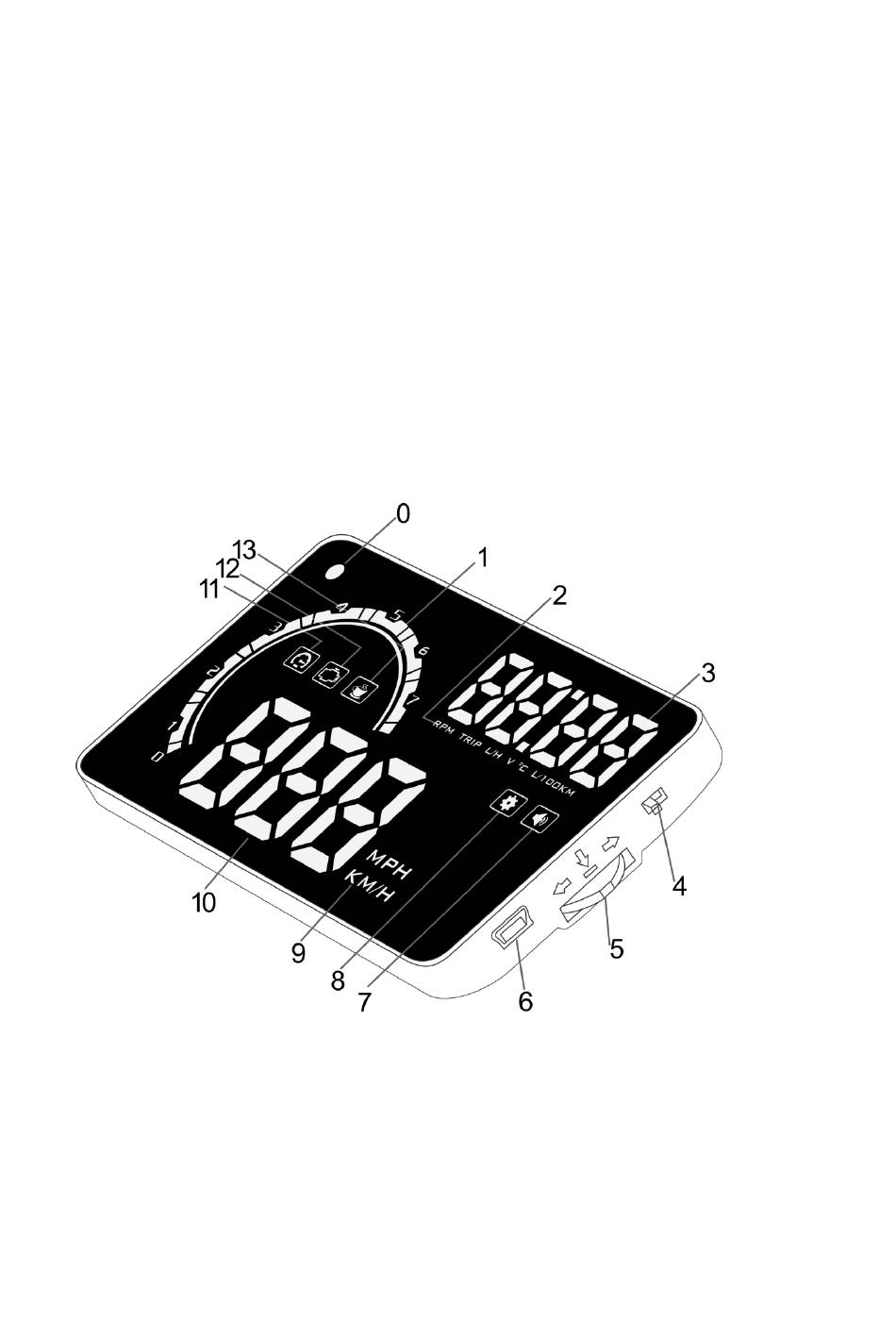

HUD Display functions

0. Light sensor: Automatically adjust the brightness according to the environment
1. RPM: the bright icon means the engine speed value
2.Multi functions area: RPM/Single driving distance/Voltage/Water temperature/Fuel
consumption/Single driving time
3. Unit for Multi function area
4. Power button
5. Setting button
6. USB port
7. Buzzer

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D2000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Eling D2000

  • Page 1 Head Up Display User manual Model: D2000 Introduction HUD short for Head Up Display. It displays driving datas on the front windshield such as speed, RPM, fuel consumption, water temperature, voltage etc on the car front window glass; avoiding drivers unsafety because of watching the instrument while driving.
  • Page 2 8. Setting button 9. Speed Unit of KM/H or MPH 10. Vehicle speed 11. Over speed alarm 12. Engine fault icon 13. Fatigue driving icon HUD installation 1.Know your vehicle brand, HUD work for cars with OBDII agreement or EU OBD agreement.
  • Page 3 (2) after entering into the setting menu, to decrease the default value 3 . Short press in (1) switch the multi functions: voltage/water temperature/RPM/single driving distance/single driving time/fuel consumption (2) after entering into the setting menu, to add the menu 4 .
  • Page 4 If the speed is different with Speed 50-150 dashboard, it can be adjusted If the RPM is different with 50-150 dashboard, it can be adjusted If it is different with dash Fuel 50-150 board, it is adjustable consumption HUD will give the alarm when 10-75 RPM alarm the RPM reach to 5000 r,the...
  • Page 5 0 =automatic brightness Brightness adjustment, 1=darkest, adjust 6=brightest Speed unit 0=KM 1=MPH Water 0=°C temperature 1=°F unit Single Driving 0=kilometer distance unit 1=mile If HUD cannot auto turn off, or the car are with ASS(Automatic start/stop system),change the Start reference 0-150 voltage at 132(means voltage...
  • Page 6 2.When HUD power on, HUD only shows the car voltage and be automatic power off after 30 seconds driving. HUD just available for cars with OBD2 agreement and EU-OBD agreement(European region: after 03 years, Other region: after 07 years) HUD Products donnot support JOBD and OBDI and recommended test for another car.
  • Page 7 7.Inaccurate fuel consumption The unit for fuel consumption is L/100KM, HUD display is the single driving fuel consumption, while car display is Integrated average driving fuel consumption, so it is normal if there are difference. HUD display three kinds of fuel consumption a.
