Car HUD Head Up Display
User manual
Model: S600
Introduction
HUD short for Head Up Display. It displays driving datas on the front windshield such
as speed, RPM, fuel consumption, water temperature, voltage etc on the car front
window glass; avoiding drivers unsafety because of watching the instrument while
driving. Drivers can read the driving information instantly , and can always keep the
best state on the way with HUD.

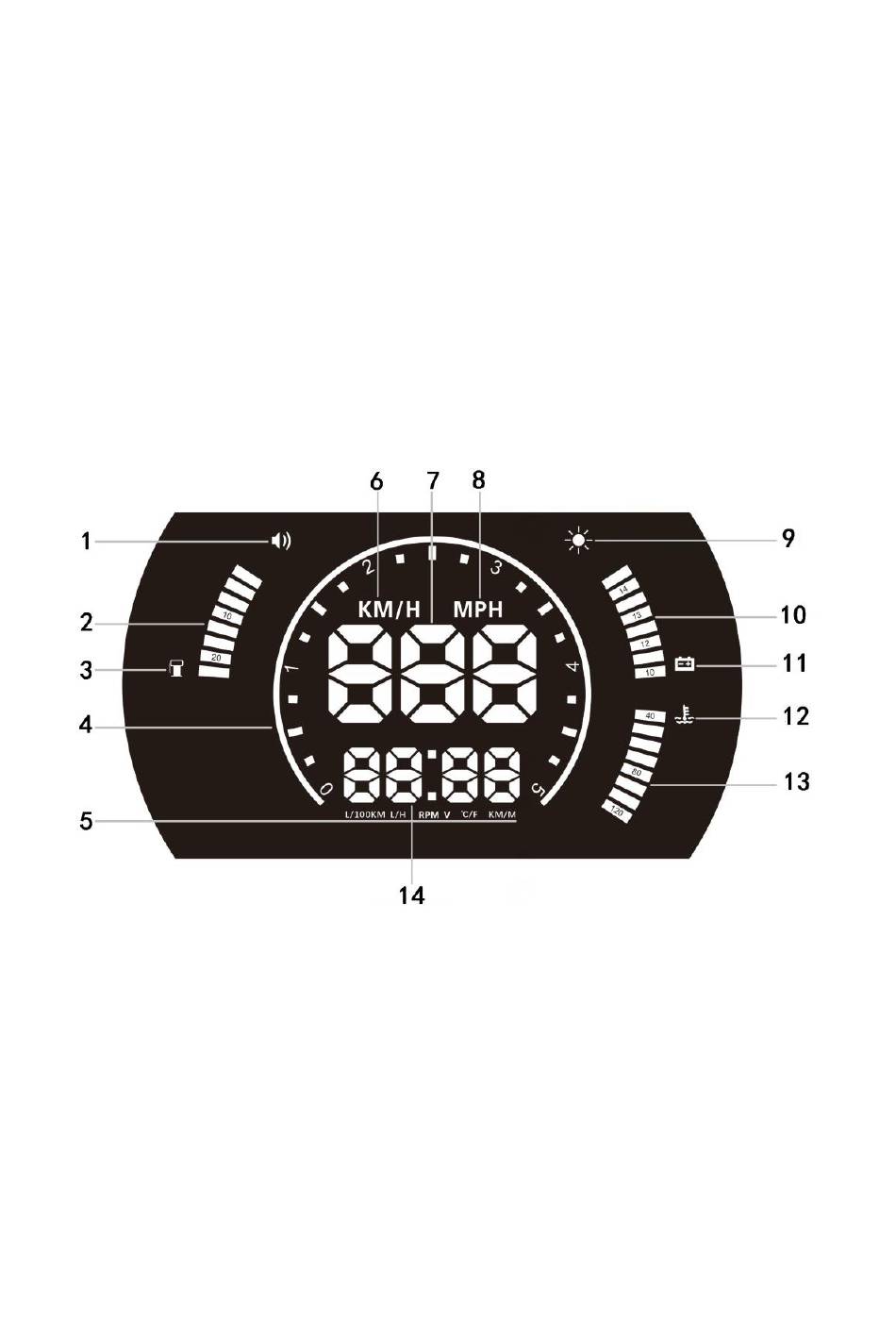

HUD Display functions
2. Fuel consumption
3. Fuel consumption icon
4. RPM
5. Multi functions unit: L/100KM=Unit of Average fuel consumption for each 100KM,
L/H=instantaneous fuel consumption, RPM=Engine speed, V=Voltage, °C/°F=Water
temperature in different unit, KM/M=Single Driving Distance in Kilometer or Mile
6. Driving Speed unit at KM/H
7. Speed
8. Driving Speed unit at Mile
9. Light sensor
10. Voltage
11. Voltage icon (it will flash when give the low voltage alarm)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Eling OBD2 HUD
Summary of Contents for Eling OBD2 HUD
- Page 1 Car HUD Head Up Display User manual Model: S600 Introduction HUD short for Head Up Display. It displays driving datas on the front windshield such as speed, RPM, fuel consumption, water temperature, voltage etc on the car front window glass; avoiding drivers unsafety because of watching the instrument while driving.
- Page 2 12. Water temperature icon(it will flash when give the high water temperature alarm) 13. Water temperature 14. Multi functions display area: instantaneous fuel consumption for 100 kilometers/Instantaneous fuel consumption/RPM/Voltage/Water temperature/Single Driving Distance can be switched HUD keys functions,when the wave button is on the right Long pull up: All the lights will be on, to eliminate the fault code Long pull down: turn off/on the buzzer Long press in: to enter into the setting menu...
- Page 3 HUD setting: HUD display information is from ECU, because when producing car, there is a difference between vehicle dashboard and ECU , then you can enter the setup mode to fine-tune the HUD display value, in order to achieve exactly the same value as dashboard.
- Page 4 0=HUD display(read from Display Mode the windshield reflection), 1=read from the HUD device directly Brightness 0 =automatic brightness adjustment adjustment, 1=darkest, 2=brightest 0=KM/H Speed unit 1=MPH 0=°C Water 1=°F temperature unit Single Driving 0=Kilometer distance unit 1=Mile 0-15.0V If HUD cannot auto turn Start reference off,or the car are with voltage...
- Page 5 Factory reset Set to 1 ， vertically press in the setting button for 5s, then return to the display interface. HUD installation 1.Know your vehicle brand,HUD work for cars with OBDII agreement or EU OBD agreement. Open the engine hood and find the sticker below it (see the below picture 1), if it has words like OBDII CERTIFIED, then it can be installed.
- Page 6 Troubleshooting 1.The screen without any display,and no power Start the car engine;check if the OBD cable line is tight;please pull down the OBD cables more times to ensure;check if HUD power switch turns on. If no display still,please change another car to test, analyze whether the car OBD diagnostic interface is good, if it is not good,please repair it and try again.
- Page 7 7.Inaccurate fuel consumption The unit for fuel consumption is L/100KM, HUD display is the single driving fuel consumption, while car display is Integrated average driving fuel consumption, so it is normal if there are difference. HUD display three kinds of fuel consumption a.Idle mode: HUD display Instantaneous fuel consumption per hour (L/H), it means HUD can figure out how much oil the car will consumed after start engine in one hour...
