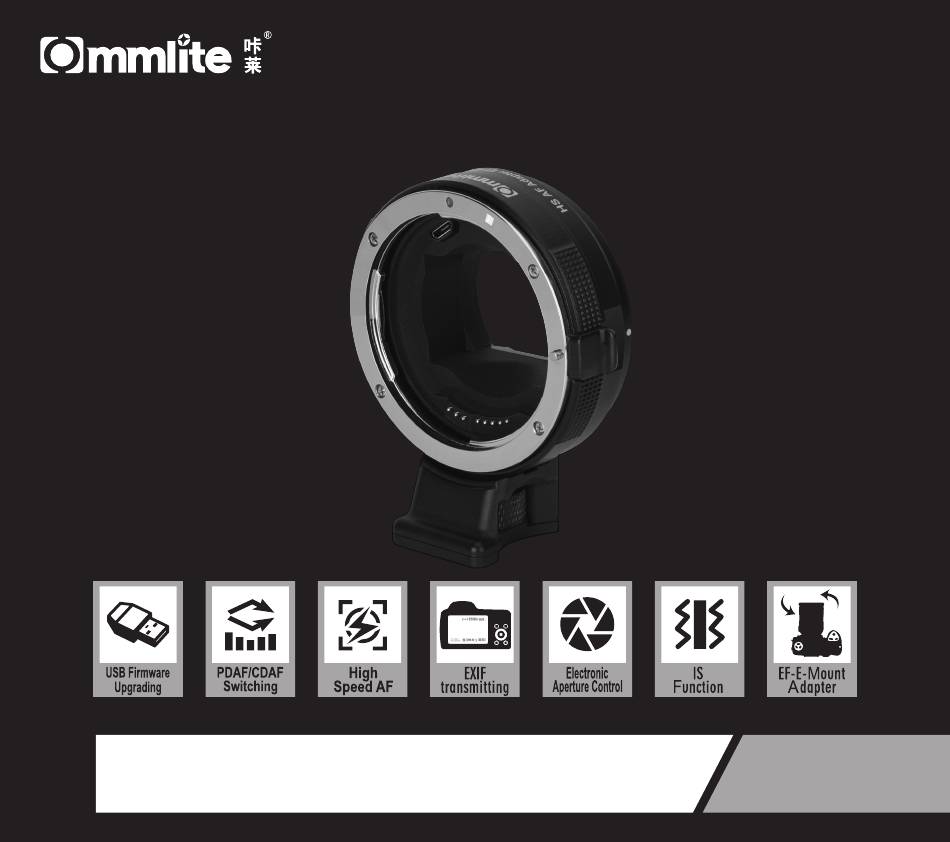

- Page 1 CM-EF-E HS HIGH SPEED AF LENS MOUNT ADAPTER For EF/EF-S Lens to E-Mount Camera User Manual...
- Page 2 Description Commlite electronic lens mount adapter EF-E HS can change the EF/EF-S Mount lens over the E-Mount cameras, and meanwhile can achieve functions as: USB Firmware Upgrading; Super High Speed Auto Focus Function; Phase detection AF and Contrast detection AF Switch; EXIF Info.
- Page 3 Notice 1.This adapter is built-in with USB firmware upgrade port, please pay attention to Commlite website to learn the update information in the first place; 2.After installing EF-E HS, please set the lens to AF mode if the AF function is needed;...
-
Page 4: Main Features
Main Features 1. USB Firmware Upgrading; 2. Super High Speed Auto Focus Function; 3. Phase detection AF and Contrast detection AF Switch; 4. EXIF Info. Transmitting; 5. Electronic Aperture Control; 6. Built-in IS Stabilization Function; 7. Gold-plated Contact Pins for Great Conductivity; 8. - Page 5 Focus Mode Switch Metal Signal Contact Tripod Mount Screw Detachable 1/4 Screw Base Plate Camera Connecting Side Front & Rear Cap...
- Page 6 Assemble and Disassembling 1. Assemble Step 1 . Connect the EF/EF-S lens to EF-E HS mount adapter Refer to the follow illustration, press down the ‘lens release button’ of the adapter, align the EF/EF-S lens mounting mark to the corresponding mark on the adapter, and turn clockwise until tightened...
- Page 7 Step 2 . Connect the mount adapter to E-mount camera Refer to the follow illustration, press down the ‘lens release button’ of the E-mount camera, align the adapter mounting mark to the corresponding mark on the camera, and turn clockwise until tightened...
- Page 8 2. Disassemble Step 1 . Turn off the camera power, then take off the adapter which is connected with EF/EF-S lens from E-Mount camera Refer to the follow illustration, press down the ‘lens release button’ of the E-mount camera, turn counterclockwise the adapter which is connected with EF/EF-S lens until it can be easily taken off...
- Page 9 Step 2 . Take off the EF/EF-S lens from the EF-E HS mount adapter Refer to the follow illustration, press down the ‘lens release button’ of the mount adapter, turn counterclockwise the EF/EF-S lens until it can be easily taken off...
- Page 10 Usage of Focus Mode Switch (CDAF&PDAF Switch) 1. After install the adapter to the camera, adapter will automatically detect and skip to the corresponding model (For cameras with Phase Detection AF will be automatically entered into PDAF mode, for cameras without Phase Detection AF will automatically enter into Contrast Detection AF mode);...
- Page 11 Long press C/P button Turn on the camera Focus mode switch finish !
-
Page 12: Specification
Specification EF/EF-S Series Lens (For specific Compatible Lens compatible lens models, please enter the official website to view the compatibility table) E-Mount Camera (For specific compatible Compatible Camera camera models, please enter the official website to view the compatibility table) Front Installation EF/EF-S Series Lens Back Installation... - Page 13 ShenZhen Commlite Technology Co.,LTD Email:support@commlite.com Web:www.commlite.com...
