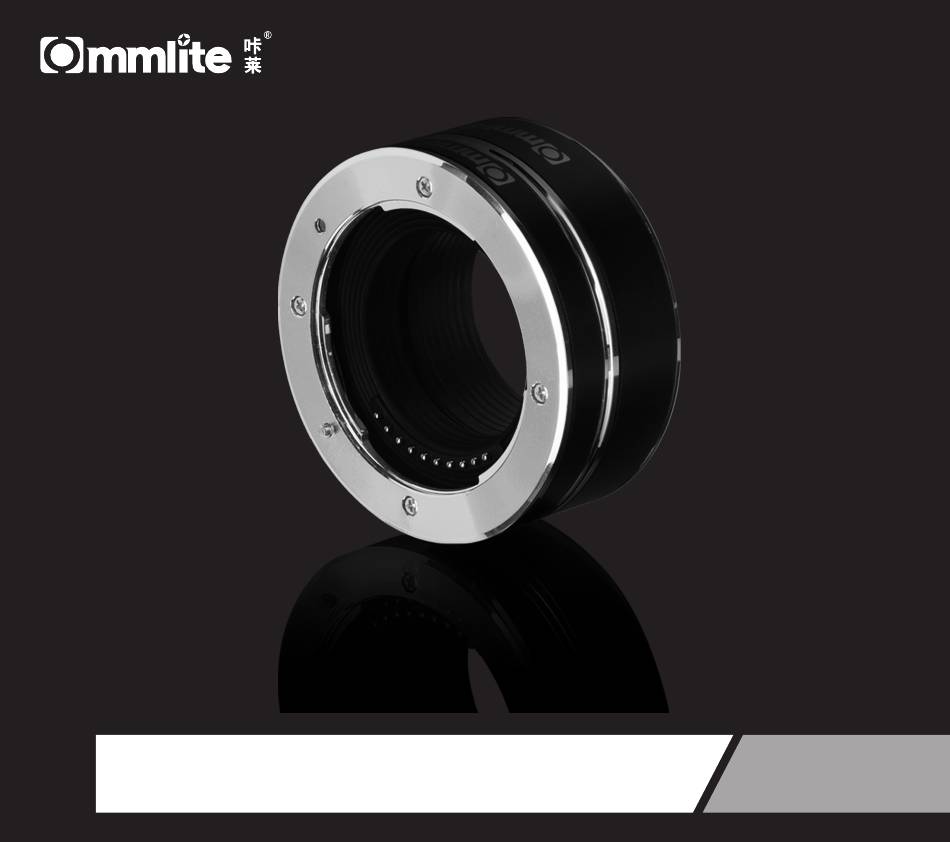

- Page 1 CM-MET-E Automatic Macro Extension Tube for E-Mount Camera User Manual...
- Page 2 Description Automatic Macro Extension Tube for E-Mount camera is composed by two different ring(10mm, 16mm) which can be used alone or combined (3 Different Combinations) to meet your needs for different close-up magnifica- tion. The connector is designed with new electronic technology, which can help you to achieve Auto-focus and TTL Exposure functions, it also supports Full-Frame Shooting.
-
Page 3: Main Features
Main Features 1. Support Exact TTL Exposure and Auto-focus 2. Built-in Electronic Pins and Internal Driver 3. Support All NEX Series and Full-Frame E-Mount Cameras 4. Made of High-quality Aluminum Alloy, Powerful and Stable 5. Including Two Tubes(10mm, 16mm), 3 Different Combinations 6. -
Page 4: Assemble And Disassemble
Assemble and Disassemble 1. Assemble Step 1 . Connect the E-Mount lens to CM-MET-E Automatic Macro Extension Tube Refer to the follow illustration, press down the ‘lens release button’ of the Extension Tube, align the red mark on the E-Mount lens to the... - Page 5 Step 2 . Connect the Extension Tube to E-Mount camera Refer to the follow illustration, press down the ‘lens release button’ of the E-Mount camera, align the red mark on the Extension Tube to the corresponding mark on the camera, and turn clockwise until tightened...
- Page 6 2. Disassemble Step 1 . Turn off the camera power, then take off the Extension Tube which is connected with E-Mount lens from E-Mount camera Refer to the follow illustration, press down the ‘lens release button’ of the E-Mount camera, turn counterclockwise the Extension Tube which is connected with E-Mount lens until it can be easily taken off...
- Page 7 Step 2 . Take off the E-Mount lens from the Extension Tube Refer to the follow illustration, press down the ‘lens release button’ of the Extension Tube, turn counterclockwise the E-Mount lens until it can be easily taken off...
-
Page 8: Specification
Specification Compatible Lens E-Mount Lens Compatible Camera E-Mount Camera Front Installation E-Mount Lens Rear Installation E-Mount Camera Camera-Mount Outer Diameter 62mm 62mm Lens-Mount Outer Diameter Length 33mm Net Weight... - Page 9 Auto Extension Tube 10mm 16mm 10+16mm lnf. lnf. lnf. Distance Reading of Master Lens 0.5m 0.5m 0.5m 0.32 0.52 Image Magnification Ratio 0.31 0.43 0.63 6.5 x 8.7 4.1 x 5.4 2.5 x 3.3 Field Coverage (cm) 4.2 x 5.6 3.0 x 4.0 2.1 x 2.7 1.44...
- Page 10 ShenZhen Commlite Technology Co.,LTD Email:support@commlite.com Web:www.commlite.com...
