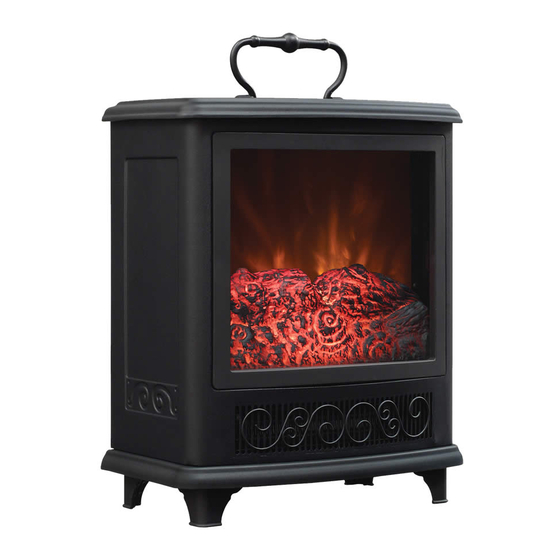

Twin-Star International DFS-305-01 Operating Instructions

MODELS: DFS-305-01, DFS-305-02, DFS-305-03, DFS-305-04, DFS-305-05
Go to www.tsicustomerservice.com for product warranty registration

Control Panel

The control panel can be found on the top left corner on the back
side of the unit.

REPLACING THE LIGHT BULB

1. Loosen the Phillips head
screws and remove back panel.
3. Pinch this spring clip to
loosen. Gently turn and pull the
rubber grommet of the motor
shaft.
Light bulb
2. Remove back panel to access
light bulb
Light bulb retaining spring
Pull
4. Pull away the bulb retaining
spring, unscrew the old bulb,
and replace with a new 40w
candelabra bulb.
OPERATING INSTRUCTIONS
- MAIN POWER
The Power switch supplies power to all of the
functions of the Fire Cube including the flame
effect and heater.
NOTE:Main Power must be turned to ON for the
heat to be used.
750W- LOW HEAT
To turn on low heat, turn the heater knob to the
750W position.
1500W- HIGH HEAT
To turn on high heat turn the knob all the way to
the 1500W position.

PRODUCT SPECIFICATIONS

VOLTAGE
AMPS
WATTS
Spinner
Motor
Assembly
For Customer Service:
www.twinstarhome.com
8:30 a.m.-5:30 p.m., EST, Monday-Friday
Note: When first running the heater there can
be an odor. This is normal, the heater has a
surface coating on the internal parts, for the
first several hours of operation the coating
reacts with the internal parts to permanently
protect them. The odor is safe; if you are
sensitive to the odor it is recommended
to run the heater in a well-ventilated area
until the odor dissipates.
Warning: This is an unvented, electric appliance.
Pull
DO NOT attempt to burn wood or manufactured
firelogs in or on this appliance or grate.
Distributed by
Twin-Star International, Inc. Under license.
duraflame™ and the duraflame flame
logo are trademarks of Duraflame, Inc.
Twin-Star International, Inc.
Delray Beach, FL 33445
Made in China • Printed in China
120 VAC, 60 Hz
12.5 Amps
1500 Watts
888-674-7517
Made in China
Printed in China
© 2015,Twin-Star International,Inc.
