- Page 1 OPERATING INSTRUCTIONS 使用說明書 使用說明書 型號 MODEL JZ (Y,T)-11N 型號 型號 MODEL RB-11N-C 型號 嵌入式陶瓷玻璃檯面平面爐 嵌入式陶瓷玻璃檯面平面爐 CORPORATION NAGOYA JAPAN RB-11N-C.indd 1 RB-11N-C.indd 1 2/10/2009 9:12:09 AM 2/10/2009 9:12:09 AM...

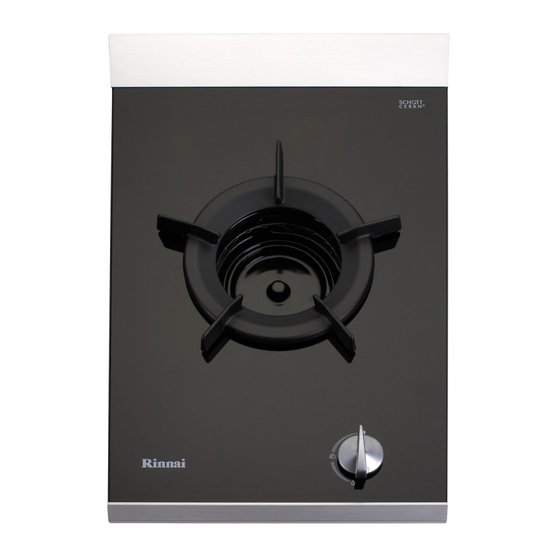

- Page 2 In order to obtain the best results and to maintain your Built-In Hob in the best condition, please read the instructions below carefully: 為確保爐確使用及維持最佳效能 , 請詳閱說明 : COMPONENTS AND PARTS NAMES 各部份稱及組成 Pan Support 爐架 Drip pan 爐碟 Air Intake Guard 進氣保護蓋...
- Page 3 SPECIFICATION 規格 Heat Input 輸入熱 High Calorifi c Value Low Calorifi c Value 高熱 熱 L. P. G. 3.37 kW 2.97 kW N. G. 3.72 kW 3.72 kW Gas Inlet Connection Ø9.5 Hose End Ø9.5 毫米接駁口 燃氣入口接駁 Overall Dimensions Height 高 69.2 mm 毫米 (To Top Plate 爐面...
- Page 4 * If another built-in appliance (e.g. dishwasher, washer, etc,) is to be installed under the built-in hob, keep a clearance of at least 10mm from the bottom of the built-in hob. If the installation of the appliance underneath requires a different distance, adopt the larger value. 10 毫米的距離...
- Page 5 INSTRUCTIONS FOR USE 操作要點 Assure good ventilation before use, open windows and turn on range-hood. 使用前 , 確保室空氣流通 , 開啟窗戶及抽油煙機 1. While pushing the Control Knob, turn it to the left (toward the “ON” position) slowly until you hear a ‘click’ sound.
- Page 6 HANDLING PROCEDURES WHEN FLAME FAILURE SAFETY DEVICE OPERATES 防漏熄火安裝置生效時的處理方法 If the fl ame is extinguished during operation, the automatic Flame Failure Safety Device will shut the gas off after a short delay. If you notice that the fl ame has been extinguished, please turn the knob to the “OFF” position. Wait for a while before restart the appliance.
- Page 7 TROUBLE SHOOTING MANUAL FOR BUILT-IN HOB 嵌入式雙頭爐的故障檢查手冊 Fault 故障 Cause 原因 Remedy 處理方法 1. No Ignition Spark electrode is wet especially in Dry the electrode with tissue or dry seasons of high humidity. cloth. 點火不著 點火電極 ( 瓦咀 ) 濕了 , 尤是在潮 紙巾或乾毛巾抹乾點火電極...
- Page 8 CORPORATION 2-26 Fukuzumi Nakagawa (TRJB11N-32) Nagoya Japan Printed in Japan RB-11N-C.indd Sec2:7 RB-11N-C.indd Sec2:7 2/10/2009 9:12:15 AM 2/10/2009 9:12:15 AM...
