Operation / Installation Manual
操作 / 安装说明
Induction Hob
电磁炉
RB-3011H-CB / RB-3011H-ZB
RB-3012H-CB / RB-3012H-ZB
RB-3022H-CB / RB-3022H-ZB
RB-5022H-CB / RB-5022H-ZB
RB-6013H-CB / RB-6013H-ZB
RB-6014H-CB / RB-6014H-ZB
RB-6024H-CB / RB-6024H-ZB
RB-7012H-CB / RB-7012H-ZB
RB-7013H-CB / RB-7013H-ZB
Rinnai Corporation
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Rinnai RB-3011H-CB
Summary of Contents for Rinnai RB-3011H-CB
- Page 1 Operation / Installation Manual 操作 / 安装说明 Induction Hob 电磁炉 RB-3011H-CB / RB-3011H-ZB RB-3012H-CB / RB-3012H-ZB RB-3022H-CB / RB-3022H-ZB RB-5022H-CB / RB-5022H-ZB RB-6013H-CB / RB-6013H-ZB RB-6014H-CB / RB-6014H-ZB RB-6024H-CB / RB-6024H-ZB RB-7012H-CB / RB-7012H-ZB RB-7013H-CB / RB-7013H-ZB Rinnai Corporation...
- Page 2 TABLE OF CONTENTS English Page 01 - 16...
-
Page 3: Table Of Contents
Installation Instructions -------------------------------------------------------------------------------------------------------------------- 13 Electrical Connections -------------------------------------------------------------------------------------------------------------------- 15 IMPORTANT Please paste the serial number labels enclosed with the packaging on your warranty card to register your product warranty. Please contact your local Rinnai Customer Care Centre should you require further assistance. Version: 2019.01... -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS Please read this user manual thoroughly before attempting to use this appliance for the first time. This manual contains important information on safe installation, use and care of the appliance. Keep these instructions for reference and pass them on to future user. Unpacking spillovers may ignite. -
Page 5: Technical Data
TECHNICAL DATA RB-3012H-CB RB-3022H-CB Model RB-3012H-ZB RB-3022H-ZB Voltage 220-240V 220-240V Frequency 50/60Hz 50/60Hz No. of Cooking Zones Front: 1.8kW/2.1kW Front: 1.8/2.1kW Power of Cooking Zones Back: 1.2kW/1.5kW Back: 1.2/1.5kW Total Power 2900W 3400W Appliance Dimension 310*520*58mm 310*520*58mm Cut-out Dimension 270*490mm 270*490mm RB-6014H-CB RB-6024H-CB... - Page 6 RB-3011H-CB RB-5022H-CB Model RB-3011H-ZB RB-5022H-ZB Voltage 220-240V 220-240V Frequency 50/60Hz 50/60Hz No. of Cooking Zones Left center: 1.8/2.1kW Power of Cooking Zones 1.8/2.1kW Right center: 1.2/1.5kW Total Power 2100W 3400W Appliance Dimension 310*520*58mm 290*520*58mm Cut-out Dimension 270*490mm 270*490mm RB-6013H-CB Model...
- Page 7 Model No. A(mm) B(mm) W(mm) D(mm) H(mm) X(mm) Y(mm) RB-3011H-CB RB-3011H-ZB RB-3012H-CB RB-3012H-ZB RB-3022H-CB RB-3022H-ZB RB-5022H-CB RB-5022H-ZB RB-6014H-CB RB-6014H-ZB RB-6024H-CB RB-6024H-ZB RB-7012H-CB RB-7012H-ZB RB-7013H-CB RB-7013H-ZB RB-6013H-CB RB-6013H-ZB Measurements in mm. Min. 50mm from hob cut-out to back wall. Min. 60mm from hob cut-out to side wall.
-
Page 8: Guide To The Appliance

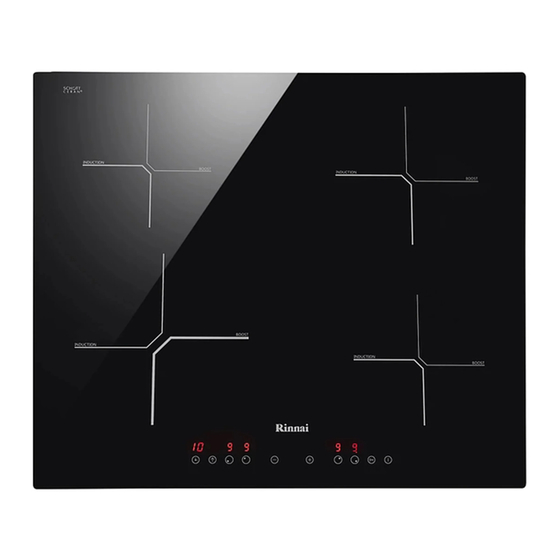

GUIDE TO THE APPLIANCE RB-3011H-CB / RB-3011H-ZB RB-3012H-CB / RB-3012H-ZB RB-3022H-CB / RB-3022H-ZB 1. Single zone 1.8kW/2.1kW (Φ210mm) 1. Single zone 1.8kW/2.1kW (Φ210mm) 2. Control panel 2. Single zone 1.2kW/1.5kW (Φ160mm) 3. Control panel RB-7012H-CB / RB-7012H-ZB RB-7013H-CB / RB-7013H-ZB 1. - Page 9 RB-6024H-CB / RB-6024H-ZB RB-6014H-CB / RB-6014H-ZB 1. Single zone 1.8kW/2.1kW(Φ210mm) 1. Single zone 1.8kW/2.2kW (Φ210mm) 2. Single zone 1.2kW/1.5kW (Φ160mm) 2. Single zone 1.4kW (Φ160mm) 3. Single zone 1.8kW/2.1kW (Φ180mm) 3. Single zone 1.8kW (Φ180mm) 4. Single zone 1.2kW/1.5kW(Φ160mm) 4. Single zone 1.4kW (Φ160mm) 5.
- Page 10 CONTROL PANEL RB-3011H-CB / RB-3011H-ZB RB-3012H-CB / RB-3012H-ZB RB-3022H-CB / RB-3022H-ZB RB-6024H-CB / RB-6024H-ZB RB-6014H-CB / RB-6014H-ZB RB-7012H-CB / RB-7012H-ZB RB-7013H-CB / RB-7013H-ZB RB-5022H-CB / RB-5022H-ZB RB-6013H-CB / RB-6013H-ZB 1. ON/OFF key 2. Child lock 3. Power level indicator / Timer indicator 4.
-
Page 11: Helpful Hints And Tips
HELPFUL HINTS AND TIPS cookware designed for induction cooking. Cookware made by the following materials is not suitable: pure stainless steel, aluminum or copper without a magnetic base, glass, wood, porcelain, ceramic, and earthenware. Size of burner (mm) T h e m i n i m u m b a s e o f cookware (diameter /mm) To test the compatibility of the cookware: •... - Page 12 PRACTICAL COOKING ADVICE This appliance is programmed with 9 power levels. The following power levels should be taken as a guide only. A higher power level setting is required when using deep pans, cooking large food quantities, or cooking without a lid. Select a lower power setting for smaller food quantities.
-
Page 13: Operating Instructions
OPERATING INSTRUCTIONS Switching ON/OFF the hob boost function activate and display will show 'P'.) The hob must be switched on before any of the cooking To cancel Boost function: zones can be used. • Choose the zone under Boost (i.e. •... - Page 14 again, Press of the power level key selector to set the desired tenths (0 to 9). The indicator of the cooking zone starts to blink. • To see the remaining time press on the • Touch the ON/OFF to switch off. Then switch on corresponding zone selector key, the display will and the hob is configured ready to use at the ECO show the remaining time...
-
Page 15: Maintenance And Care
"H" is turned off when the cooking zone temperature Useful Tip drops below a present temperature. • Always place cookware on the cooking zone before switching on the appliance. Automatic switch off • Take care to keep the control panel clean and never This hob is equipped with a safety switch which place the pans on the control panel sensors. -
Page 16: Troubleshoot
Please restart after the induction hob cools down. WARNING: Do not disassemble the unit by yourself in case of any dangers. If the problem persists despite observing the above checks, please contact your local Rinnai Customer Care Center for assistance. -
Page 17: Installation Instructions
INSTALLATION INSTRUCTIONS CAUTION • This appliance shall only be serviced by authorized personnel. This appliance is to be installed only by an authorized person according to the current local regulations and in observation of the manufacturer’s instructions. • Incorrect installation, for which the manufacturer accepts no responsibility, may cause personal injury of damage. -
Page 18: Electrical Connections
FASTENING THE COOKTOP Each cooktop is supplied with a set of tabs and screws to fasten it on units with a working surface from 3 to 4 cm deep. The kit includes 4 tabs A and 4 self-threading screws B (fig. - Page 19 appliance’s power rating. If the hob surface is cracked disconnect the appliance from the mains and contact the after-sales service. Replacing the power cord must be done by a qualified electrician in accordance with the instructions supplied by the manufacturer and in compliance with established electrical regulation. Descriptions and illustrations in this booklet are given as simply indicative.
- Page 20 Rinnai Customer Care Centres Philippines China |中国 Mitsui Industia Corporation Guangzhou Rinnai Gas & Electric 10 Buenaventura St., Cor MacArthur Room 2805, No.31 Jianghe Building, Highway, Dalandan Valenzuela City, Tianshou Road, Guangzhou, China Philippines 广州林内燃具电器有限公司 Tel : (63) 2 292 9177 / 292 9179 中国广州天河区天寿路...
