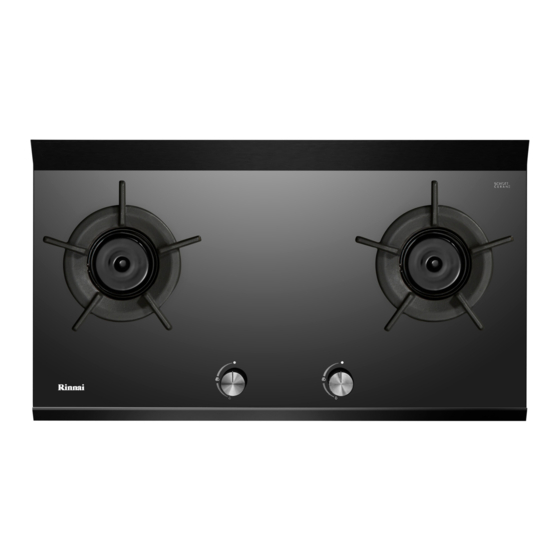

- Page 1 Instructions for use, installation, and connection Gas Built in Hob RB-2CGN RB-3CGN × JK0063-033 04 (00) 06000005276730...
-
Page 2: Table Of Contents
Every time you use Rinnai appliances, Rinnai believes you can feel comfort by its safety and quality. In order to maximize the performance and to maintain your Rinnai built- in hob in the best condition, please follow the instruction carefully. -
Page 3: Important Warnings
1. Important Warnings 1.2 Children and vulnerable people Before installing and using of Rinnai appliances, read carefully and follow the WARNING! supplied instructions. The manufacturer Risk of suffocation, injury or is not responsible for any damages permanent disability. caused by incorrect installation and use. -
Page 4: Safety Instructions
2. Safety Instructions 2.1 Installation • C AUTION : This appliance is for cooking purposes only. It must not be WARNING! used for other purposes, for example room heating. Installation and repair must be • T his appliance is intended for use in attended by qualified technical household. - Page 5 2.4 Disposal • M ake sure cookware is centrally positioned on the pan supports and WARNING! do not stick out over the edges of the cooking surface. Risk of injury or suffocation. • O nly apply the accessories supplied by • P lease contact your nearest municipal manufacturer. authority for detailed information on the • N ever install a flame diffuser on the disposal of appliance.
-
Page 6: Line Up
3. Line up RB-2CGN RB-3CGN Top Plate Dimension ; 738 mm×439 mm Top Plate Dimension ; 853 mm×439 mm Cut-Out Dimension ; 703 mm×403 mm Cut-Out Dimension ; 815 mm×405 mm 4. Parts Names RB-2CGN RB-3CGN Pan Support Pan Support Small Burner Drip Pan Drip Pan Ceramic Glass Top Plate Ceramic Glass Top Plate Big Burner Big Burner Flame Failure Flame Failure Safety Sensor Safety Sensor... -
Page 7: Installation
5. Installation Kitchen worktop cut-out dimensions Model Cut out hole dimension (mm) 703 x 403 RB-2CGN R0~R5 815 x 405 RB-3CGN R0~R5... - Page 8 WARNING! * Install the built-in hob in a well ventilated room and keep it away from any combustible or flammable objects such as paper or oil. * Place the built-in hob on a stable and levelled surface. * If the built-in hob is to be installed close to combustible objects (such as wooden walls, wooden shelves), it should be installed at least 15 cm from the side walls.
- Page 9 ● Set the battery properly as instructed. Ignition Model Battery holder location Battery Size Front Side RB-2CGN D (1.5V×1) Gas Inlet Battery 1.5V×1 “D” Size Front Side RB-3CGN D (1.5V×2) Gas Inlet Battery 1.5V×2 “D” Size...
- Page 10 ● Set the top plate properly as instructed. * Set the top plate to casing. RB-2CGN RB-3CGN Recessed part Projected part Recessed part Insert into the recessed part. Use the front side as a supporting point. Insert Move to the front. Fix with screws (2 parts).
- Page 11 ● Place the pan support properly as instructed. * Place pan support to top plate. Pan Support Fixing Pin Depressed portions Installation of Gas Hose The Gas Connection can be made with ø9.5mm hose end or G1/2" threaded pipe joint. (ø8.4mm hose end for Singapore) Carry out the connection with fitting and hose or metal pipes.
-
Page 12: Operating Instructions
6. Operating Instructions Ignition 1. Press and turn control knob to the left until it has stopped. Burner is ignited by sparks. 2. If the flame goes out when you release your hand from the knob, repeat the ignition procedures. 3. -
Page 13: Maintenance
7. Maintenance How to Change Battery 1. If the battery ran out, open the cabinet door and change it correctly. The location of the battery is described in Page 9. • Battery box is located at bottom of built-in hob. Open the cabinet door and change the battery. * Set battery correctly with care. + - How to Set Drip Pan * Set drip pan into burner correctly, without gap. -
Page 14: Technical Specifications
(kg) Battery Size (mm) (kPa) (mm) (mm) Min:180 Max:280 Two-burner 703×403 Ceramic Glass Top RB-2CGN 11.6 D (1.5V×1) 738×439×93* R0~5 Use only flat bottom pan Built-in Hob except for wok burner * from bottom of casing to pan support * In use of pan ϕ100 for Big burner must use mini trivet. - Page 15 Individual Burner Gas Consumption (kW) Total Gas Consumption Left Center Right Gas Connection Type (kW) Nozzle Nozzle Nozzle (kW) (kW) (kW) (φmm) (φmm) (φmm) ϕ9.5 mm gas specific rubber hose 3.60 0.90 — — 3.60 0.90 7.20 (ϕ8.4 mm hose end for Singapore) 3.55 2.55 —...
-
Page 16: Suitable Pans
ø 20 In use of pan ø10cm for Big burner, must use mini trivet. Mini trivet is included for RB-2CGN, RB-3CGN, if cooking with a 10cm & 12cm diameter of pan on big burner, it’s recommended to use mini trivet.
