WARNING:
ADULT ASSEMBLY ONLY OWING TO THE PRESENCE OF SMALL PARTS, SHARP POINTS
AND EDGES.
PART LIST
A
HEADBOARD [1]
B
END PANEL [2]
C
FRONT RAIL [1]
D
TWIN PANEL SUPPORT [3]
E
TWIN PANEL [2]
F
TRUNDLE (OPTIONAL, SOLD SEPARATELY)
IMPORTANT
These bed parts can be cumbersome and heavy to some people; therefore the assistance of two or
more people is recommended in order to prevent personal injury and ensure the bed parts are not
damaged during the assembly process.
TOOLS NEEDED
-PHILLIPS HEAD SCREWDRIVER (NOT PROVIDED)
HARDWARE LIST
NO.
1
2
3
4
5
6
Customer Service - If you are missing parts or have any questions about this product please contact

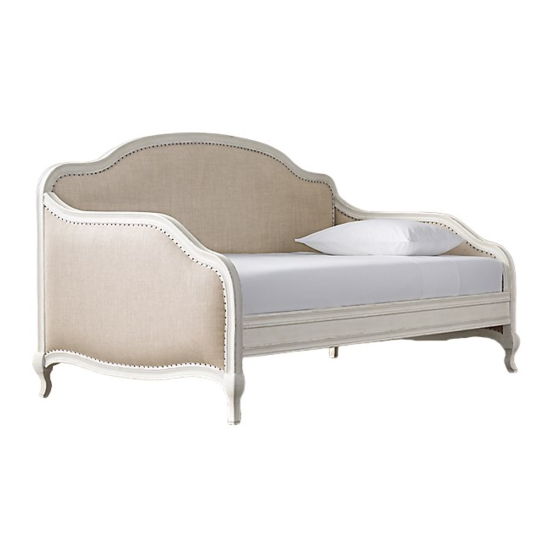

M A R C E L I N E D A Y B E D
E
A
D
B
D E S C R I P T I O N
THREADED ROD
CURVED WASHER
LOCK WASHER
HEX NUT
WRENCH
PHILLIPS WOOD SCREW
us at 1-800-762-1751
Page 1 of 3
E
B
D
C
F
QTY.
4 PCS
4 PCS
4 PCS
4 PCS
1 PC
18 PCS
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for baby&child MARCELINE DAYBED
Summary of Contents for baby&child MARCELINE DAYBED
- Page 1 M A R C E L I N E D A Y B E D WARNING: ADULT ASSEMBLY ONLY OWING TO THE PRESENCE OF SMALL PARTS, SHARP POINTS AND EDGES. PART LIST HEADBOARD [1] END PANEL [2] FRONT RAIL [1] TWIN PANEL SUPPORT [3] TWIN PANEL [2] TRUNDLE (OPTIONAL, SOLD SEPARATELY)
- Page 2 ASSEMBLY INSTRUCTIONS: FIGURE 01 Thank you for choosing this quality product. Be sure to check all packaging materials carefully for small parts that may have become loose during shipment and place all parts on a non-abrasive surface. STEP #1: Place the Headboard (A) and the End Panels (B) upright in the position you wish the bed to be in when fully assembled.
- Page 3 FIGURE 04 STEP #4. Set the Twin Panels (E) on top of supports (D) and fasten these with Screws (6) provided as in FIGURE 05. FIGURE 05 STEP #5 After assembly, slide the optional Trundle (sold separately) (F) underneath the Daybed as in FIGURE 06.
