baby&child MADIGAN WING BED Quick Start Manual

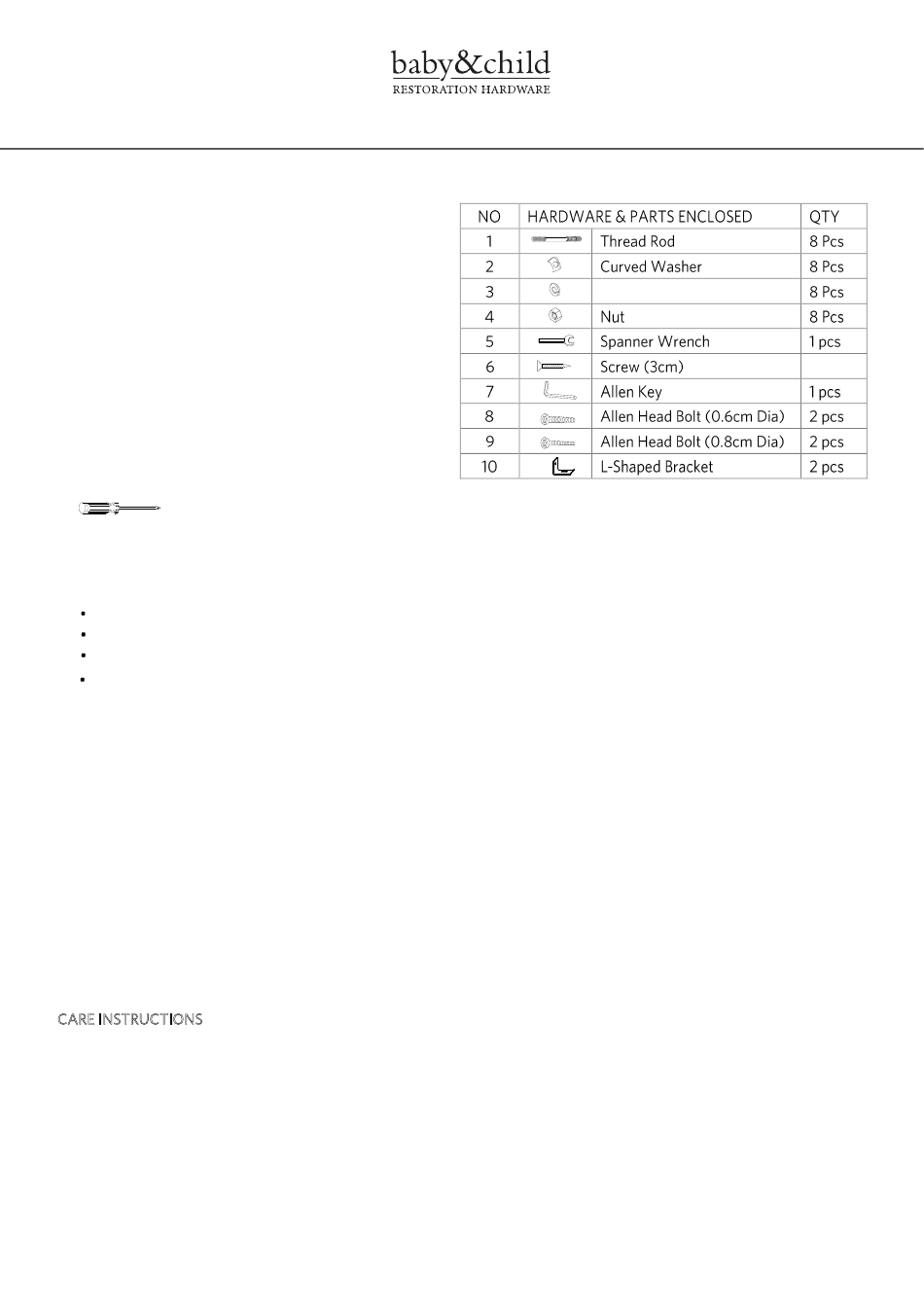

PARTS INCLUDED

A [1] Headboard
B [2] Side rail
C [1] Footboard
D [10] Cross support Slat
E [1] Center Support Slat
F [1] Center Support Slat Foot
(With adjustable glide)

TOOLS NEEDED:

Phillips Screwdriver (not included)

ASSEMBLY INSTRUCTIONS

Bed must be assembled by at least two people.
Please read instructions carefully before assembling bed.
Use the above parts and hardware list to identify each component.
Keep all packing materials until assembly is complete to avoid loss of smaller parts.
Stand the headboard (A) upright and align the Side Rails (B) at the base of the headboard.
1.
Insert the Thread Rods (1) into the holes on the Side Rail (B), and attach Curved Washers (2),
2.
Lock Washers (3), Nuts (4) onto the Thread Rods (1).
Tighten the Nuts (4) & Thread Rods (1) with Spanner Wrench (5) as shown in the Diagram I.
Repeat above procedure to attach the Footboard (C), as shown in the Diagram II.
3.
Attach the Center Support Slat Foot (F) to the Center Support Slat (E), as shown in the Diagram III.
4.
Attach the L-Shaped Brackets (10) to the ends of Center Support Slat (D), and tighten Allen
5.
Head Bolt (8) with Allen Key ( ). Attach the L-Shaped Brackets (10) to the Headboard (A).
and Footboard (C) and tighten Allen Head Bolt ( ) with Allen Key ( ), as shown in Diagram IV.
6.
Place the Slat Roll (D) on the cleats on the inside of the Side Rail (A). Screw the ends ot the Slats
to the cleat using Screw (6), as shown in Diagram V.

CARE INSTRUCTIONS

1. Spot clean only with a soft, damp cloth.
2. Do not use abrasive cleanser.
MADIGAN WING BED
7
9
Page 1 of 2
Lock W asher
7
20 pcs
