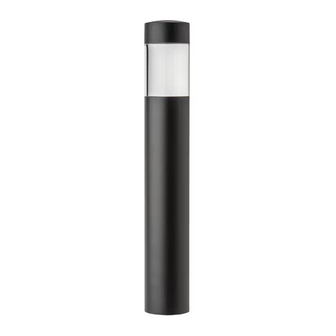

Vista 2500 Installation Instructions

IN GROUND INSTALLATION
Grade
FOR USE ONLY WITH LOW VOLTAGE LANDSCAPE POWER UNITS THAT DO NOT
EXCEED 25 AMPS, 15 VOLT MAX.
WARNING: Bollard luminaires must be installed in accordance with
the National Electrical Code (NEC) and local codes. Failure to do so
will void the warranty and may result in serious injury and/or damage to the bollard luminaire.
SAFETY WARNING: Luminaire can become very hot depending on lamp wattage used.
Lens and metal around lamp can become hot enough to blister hands. Particular care
should be taken not to locate luminaires where small children can reach them if high wattage lamps are used.
LUMINAIRES ARE NOT TO BE INSTALLED WITHIN 10 FT. (3.05M) OF A
POOL OR SPA. SECONDARY CABLE IS NOT TO BE BURIED MORE THAN
6". WHEN USING MULTIPLE LUMINAIRES, LOAD IS NOT TO EXCEED
TOTAL WATTS OF TRANSFORMER RATING. DO NOT USE EXTENSION
CORDS ON POWER UNITS.
NOTE: Always use UL recognized wire connectors for connections.
NOTE: Save these instructions for future reference.
BOLLARD IS UL LISTED FOR ABOVE GROUND INSTALLATION ONLY.
TOOLS REQUIRED FOR INSTALLATION:
Flat head screwdriver

INSTRUCTIONS FOR STAKE MOUNT INSTALLATION

NOTE: Your Vista 12 volt Bollards are shipped with a ground stake to facilitate a stake mount
installation. However, for a permanent and secure installation a concrete footing
support for the bollard base is recommended.
1. To prevent electrical shock, disconnect transformer from electrical supply before installation
or service.
2. Dig a hole at selected location.
3. Using the 1/2" threaded short nipple (provided), attach ground stake to center hole in
bollard base and insert stake with base into the ground until bottom of base is even with grade.
Lens
Lens Set Screw
Post
Base Set Screw
Base
INSTALLATION INSTRUCTIONS FOR 12 VOLT
BOLLARD
MODEL #2500
Shovel Wire strippers
POUR CONCRETE INSTALLATION
Grade
Cement concrete (if pour concrete method chosen)
Lens
Lens Set Screw
Post
Base Set Screw
Base
Concrete
