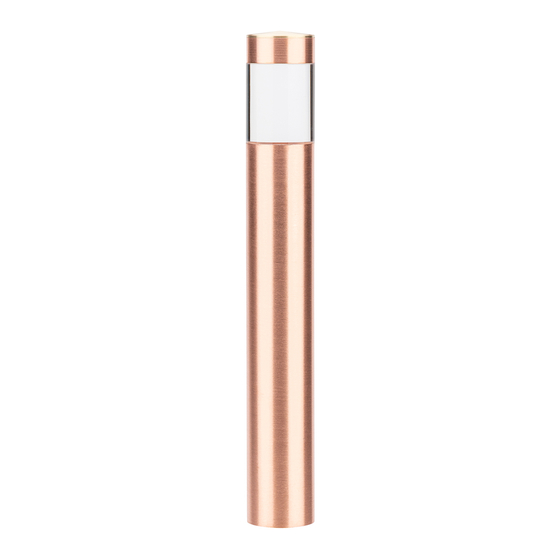

Vista Landscape Series Installation Instructions

INSTALLATION INSTRUCTIONS
FOR USE ONLY WITH LOW VOLTAGE LANDSCAPE POWER UNITS THAT DO NOT EXCEED 25 AMPS, 15 VOLT MAXIMUM.
WARNING: Luminaires must be installed in accordance with the National Electrical Code (NEC) and local codes. Failure to do so will void the warranty and may
result in serious injury and/or damage to the luminaire.
SAFETY WARNING: Luminaire can become very hot depending on lamp wattage used. Lens and metal around lamp can become hot enough to blister hands.
Particular care should be taken not to locate luminaires where small children can reach them if high wattage lamps are used.
LUMINAIRES ARE NOT TO BE INSTALLED WITHIN 10 FT. (3.05M) OF A POOL OR SPA. SECONDARY CABLE IS NOT TO BE BURIED MORE THAN 6".
WHEN USING MULTIPLE LUMINAIRES, LOAD IS NOT TO EXCEED THE TOTAL WATTS OF TRANSFORMER RATING. DO NOT USE EXTENSION CORDS
ON POWER UNITS.
NOTE: Always use UL recognized wire connectors for connections.
NOTE: Save these instructions for future reference.
LUMINAIRE IS UL LISTED FOR ABOVE GROUND INSTALLATION ONLY.

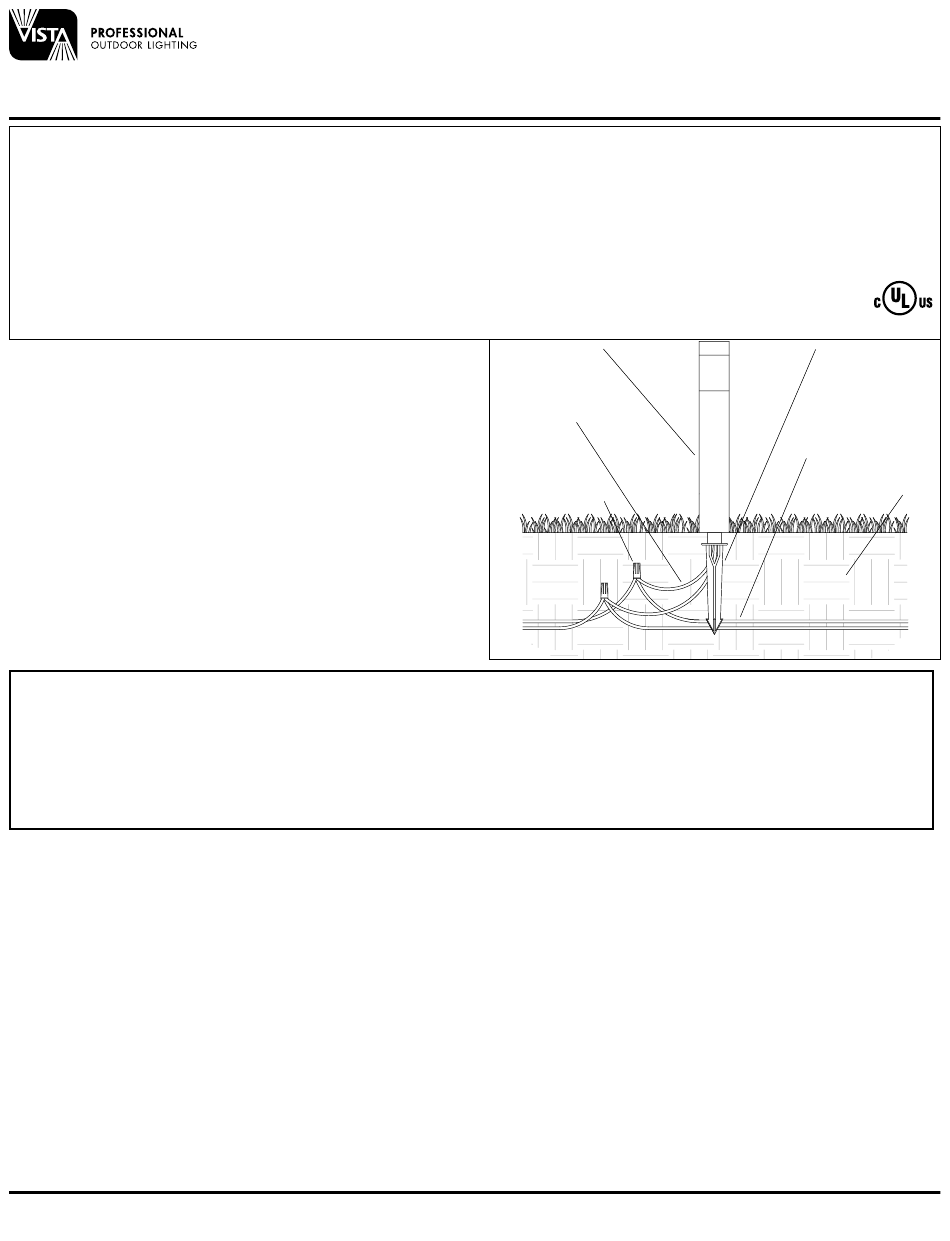

LUMINAIRE MOUNTING:
NOTE: Your Vista 12 volt Bollard is provided with a ground stake to facilitate
an in-grade installation. However, for a permanent and secure installation a
concrete footing support for bollard post is recommended.
1. To prevent electrical shock, disconnect transformer from electrical supply
before installation or service.
2. Dig a hole approximately 3" diameter by 2" deep at selected location.
3. Using ½" threaded nipple (provided), attach ground stake to center hole in
bollard base and run wire pigtail down through hole. Insert stake with base into
ground until bottom of base is even with grade.
4. Strip two leads from luminaire pigtail. Using two silicone filled safety
connectors (provided), connect leads from luminaire to main supply cable
leads.
NOTE: Luminaires are supplied with 36" of 18-2 cable pigtail for secure
connection to main supply cable. Wire is to be protected by routing in close
proximity to luminaire. Wiring should be buried a maximum depth of 6 inches
(15.2 cm) in order to connect to main supply cable.
5. Provide power to luminaire and check for proper operation.
WARNING: TO REDUCE THE RISK OF FIRE, OR INJURY TO PERSONS:
1. Turn off/unplug and allow to cool before replacing lamp.
2. Lamps get hot quickly! Contact only switch/plug when turning on.
3. Do not touch hot lens, guard or enclosure.
LAMP INSTALLATION/REPLACEMENT:
CAUTION: Do not exceed maximum wattage marked on luminaire label.
1. To prevent electrical shock, disconnect transformer from electrical supply
before service.
2. Remove fixture base locking set screws.
3. Pull fixture housing up away from base to expose lamp.
4. Replace lamp with correct wattage and type marked on fixture label.
Vista Professional Outdoor Lighting reserves the right to modify the design and/or construction of the fixture shown without further notification.
SEE REVERSE FOR LED
IMPORTANT SAFETY INSTRUCTIONS - THE LIGHTED LAMP IS HOT!
1625 Surveyor Avenue • Simi Valley, CA 93063 • (805) 527-0987 • (800) 766-VISTA (8478)
FAX: (888) 670-VISTA (8478) • email@vistapro.com • www.vistapro.com
Bollard Post
36" Pigtail
Silicone Filled
Safety Connectors
4. Keep lamp away from material that may burn.
5. Do not touch the lamp at any time. Use a soft cloth. Oil from the skin may
damage lamp.
6. Do not operate luminaire fitting with a missing or damaged cover.
SAVE THESE INSTRUCTIONS
(Leave with property owner/manager)
NOTE: DO NOT touch lamp with bare hands. Always use soft cloth to handle
the lamp.
5. Re-install fixture body onto base and position, securing with fixture base
locking set screws.
NOTE: Halogen lamps must be protected from moisture and dust at all times.
Always re-install lens after maintenance.
2138
Landscape Series
Brass & Copper
Bollards & Beacons
Ground Stake
Main Supply Cable
Soil
