INSTALLATION INSTRUCTIONS
Factory sealed
liquid-tight
connector

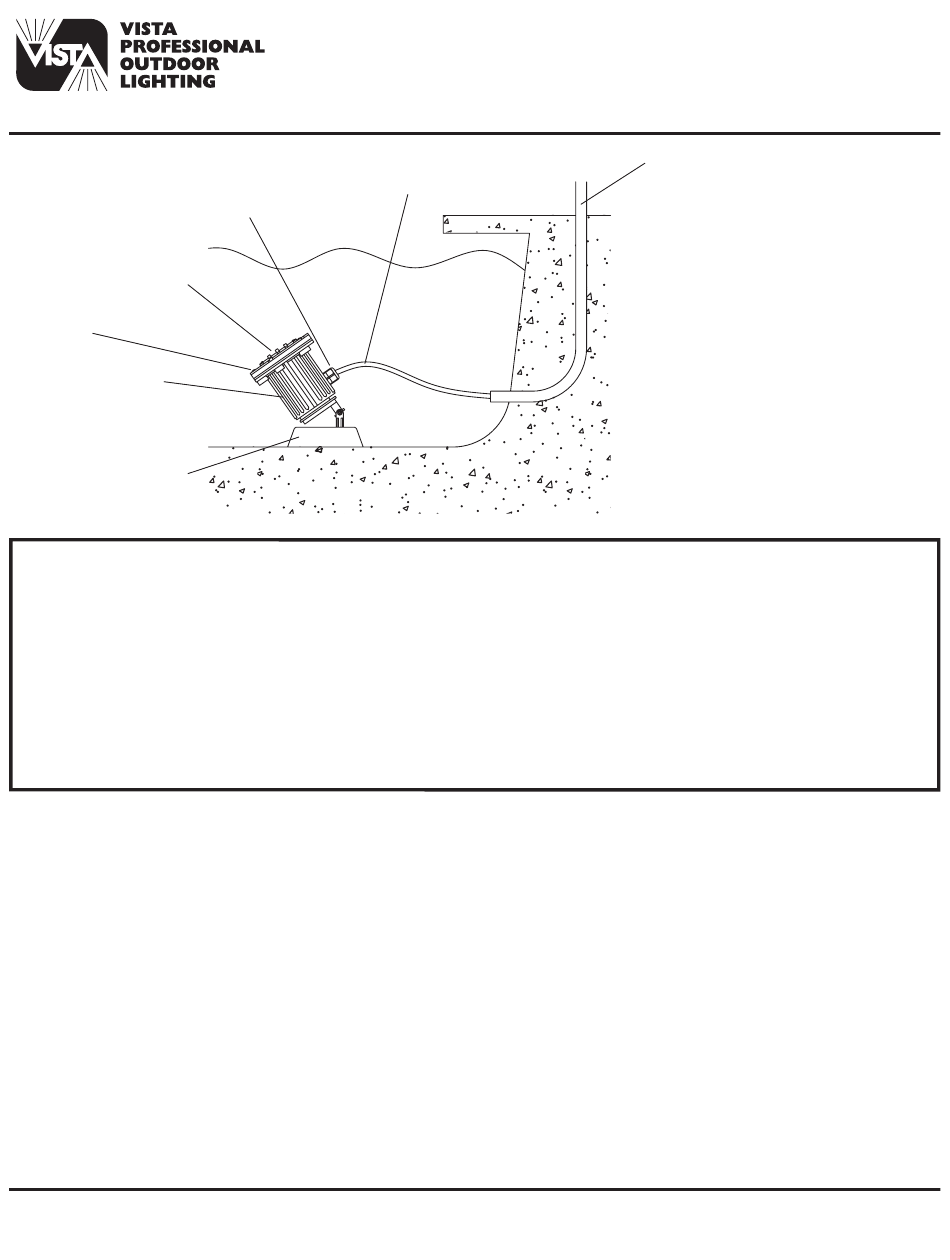

Lens
Stainless steel
screw
Housing
Cement counterweight
base with adjustable
mounting bracket
FOR USE ONLY WITH LOW VOLTAGE LANDSCAPE POWER UNITS THAT DO NOT EXCEED 25 AMPS, 15 VOLT MAXIMUM.
WARNING: Luminaires must be installed in accordance with the National Electrical Code (NEC) and local codes.
Failure to do so will void the warranty and may result in serious injury and/or damage to the luminaire.
SAFETY WARNING: Luminaire can become very hot depending on lamp wattage used. Lens and metal around
lamp can become hot enough to blister hands. Particular care should be taken not to locate luminaires where
small children can reach them if high wattage lamps are used.
LUMINAIRES ARE NOT TO BE INSTALLED WITHIN 10 FT. (3.05M) OF A POOL OR SPA. SECONDARY CABLE IS NOT TO
BE BURIED MORE THAN 6". WHEN USING MULTIPLE LUMINAIRES, LOAD IS NOT TO EXCEED THE TOTAL WATTS OF
TRANSFORMER RATING. DO NOT USE EXTENSION CORDS ON POWER UNITS.
NOTE: Always use UL recognized wire connectors for connections.
NOTE: Save these instructions for future reference.
CAUTION: THIS LUMINAIRE IS INTENDED FOR USE IN WATER GARDENS AND PONDS ONLY. NOT FOR USE IN SWIMMING POOL OR
SPA APPLICATIONS.
1. To prevent electrical shock, disconnect transformer from electrical supply before installation or service.
NOTE: DO NOT pull the underwater cable. If wire is pulled, it may break the liquid tight seal and void the warranty.
NOTE: DO NOT loosen or remove the liquid tight connector. This will damage the factory set seal and result in possible
leakage.
NOTE: The end of the underwater cable must be potted to prevent moisture from entering the cable and consequently
entering the luminaire. Connection or splicing of cable must be made above the water line and at least 4 feet from the
water edge. This luminaire comes equipped with 15 feet of waterproof cable to facilitate installation away from the
water.
NOTE: Each luminaire is factory tested prior to shipment. Traces of water may be visible as a direct result of factory
underwater testing.
2. Strip the two (2) leads from the luminaire. Using the two (2) silicone filled connectors (provided), connect the leads from
the luminaire to the main supply cable leads.
3. To adjust luminaire aiming angle, loosen the wing nut in bracket holding the luminaire. Hold luminaire at selected
angle and tighten the wing nut firmly.
4. Supply power to luminaire and check for proper operation.
