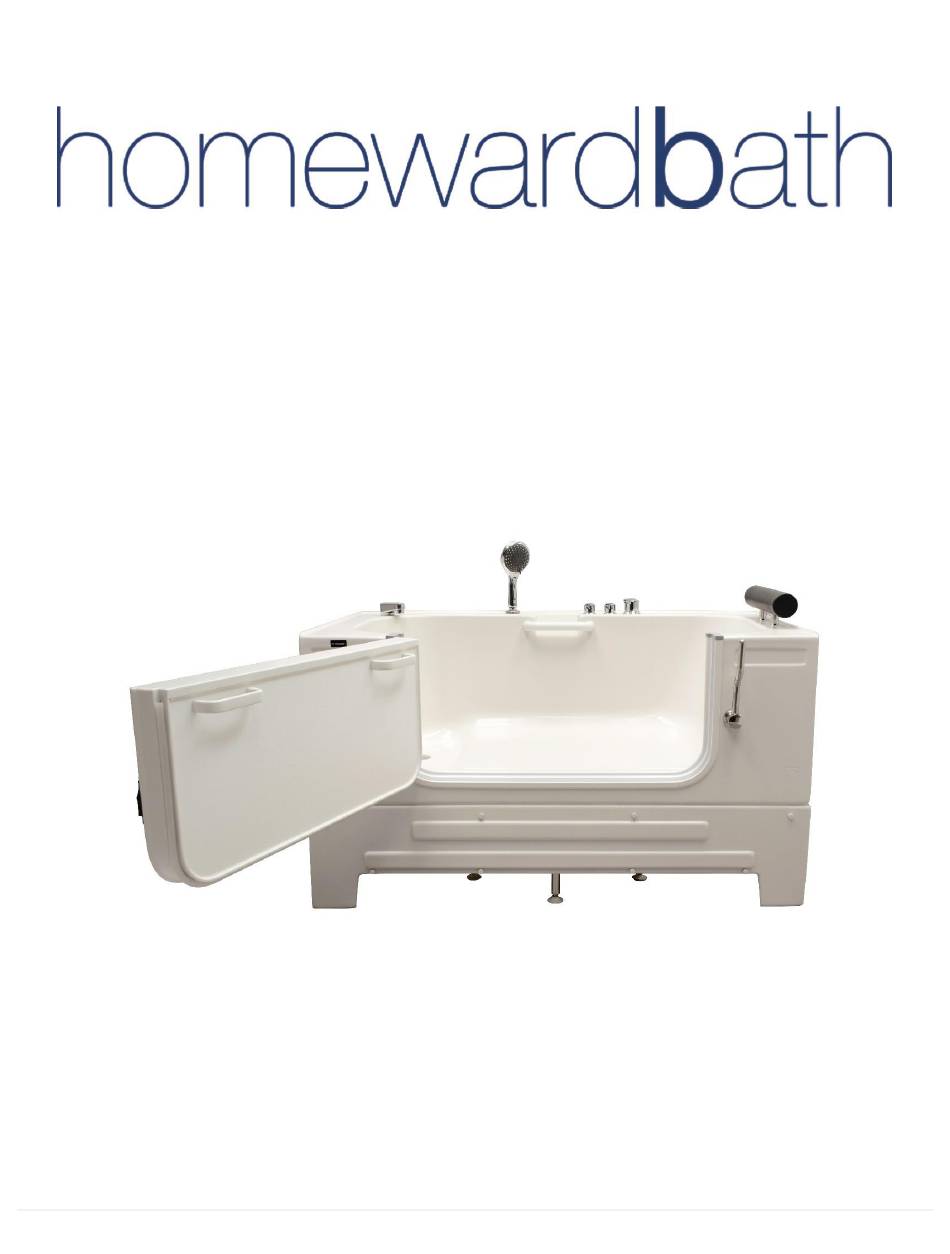

- Page 1 NEPTUNE Model: HY42 Installation Manual Note: You must read all installation & operation instructions prior to assembly and use of this unit. P a g e Rev 05/2019...
-
Page 2: Table Of Contents
Table of Contents Notice to Installers ………………………………………….. Plumbing Requirements ………………………………………….. Electrical Information ………………………………………….. Packing List ………………………………………….. Assembly Instructions ………………………………………….. 6-14 Parts Request ………………………………………….. Warranty Information ………………………………………….. Note: We keep improving and upgrading the product. All rights are reserved. Specifications are subject to change without notice. P a g e Rev 05/2019... -
Page 3: Notice To Installers
NOTICE TO INSTALLERS (1) The product requires 40-75psi water pressure, and balance hot and cold water pressure. If the end user is not satisfied with the water pressure, have your plumber add a pressure pump on your general water supply of the house. (2) Please make sure there is a GFCI Protection outlet on the power supply line or a GFCI breaker at the box. -
Page 4: Plumbing Requirements
PLUMBING REQUIREMENTS (1) Unit is equipped with flexible, metal braided ½ inch water supply hose with ½ inch female threaded connectors (2) It is needed to install hot and cold shutoffs with ½ inch male threaded nipples (not included) ELECTRICAL INFORMATION (1) Air jet motor with heater 110 volt (2) Whirlpool system 110 volt, optional inline heater to be installed into whirlpool system's electrical (no additional outlet required, but available) -
Page 5: Packing List
PACKING LIST Check the parts in the box against the packing list, if any parts are missing, contact the supplier. P a g e Rev 05/2019... -
Page 6: Assembly Instructions
ASSEMBLY INSTRUCTIONS Step 1: a. Place the bottom frame on the ground. b. Insert four supporting poles A in the corner holes of the frame (figure 1 & 2). c. Align the screw holes and secure the support poles right in the frame (figure 3). P a g e Rev 05/2019... - Page 7 Step 2: a. Turn the frame upside down. b. Take 4 adjustable feet and install them in the end of supporting pole A at the bottom of the frame (figure 1). c. Adjust the feet so that the bottom frame is leveled. P a g e Rev 05/2019...
- Page 8 Step 3: a. According to figure 1, install supporting poles E and F to the rails and supporting poles C and D to the bottom frame. b. Adjust the height of the feet and secure with hexagon nuts. Make sure the bottom frame is leveled and all feet are supporting the frame (figure 2 &...
- Page 9 Step 4: a. Align the supporting poles to the corner connectors on the middle frame, slide the frame on the supporting poles as shown in figure 1. b. Align and secure the four supporting poles A with screws on the corner connectors as shown in figure 2. c.
- Page 10 Step 5: Install supporting pole B on the middle frame as shown in figure 1 through 3. 10 | P a g e Rev 05/2019...
- Page 11 Step 6: a. Place the installed tub supporting structure into its final resting place. b. Tub MUST be secured to the back wall and the floor, to prevent tipping upon entering and exiting the tub. c. It’s advised to set the frame to the position to determine the best way to secure the frame. After the determination is made, the frame can be moved out from the final resting place and assembly can resume.
- Page 12 Step 7: a. Lift the tub body and lace it on the supporting frame, position the corner poles to connect to the 4 corner connection as shown in figure 1 and 2. b. Place the U channels on the bottom of the tub body into the support beams on the middle supporting frame as shown in figure 3.
- Page 13 Step 8: a. Connect water supply (and power, if applicable). See image below. b. Install side skirts (if applicable). Figure 1 Note: make sure the power and water supplies are connected before moving the tub into its final place. Tub frame MUST be secured to the back wall and floor to prevent tipping upon entering and exiting the tub.
- Page 14 Step 9: a. Move the installed tub into its permanent position. Make sure the frame is secured to the back wall and floor as shown in figure 1. b. Connect the drain as shown in figure 2. Note: The flexible drain hose that is included with this unit is for installation into an open floor drain only. Substituting the existing drain shoe for a different one will not void the warranty as long as there no damage or evidence of misuse.
-
Page 15: Parts Request
To expedite a Parts Request please visit homewardbath.com/support If you would like additional assistance Call 866-783-2661 15 | P a g e Rev 05/2019... -
Page 16: Warranty Information
WARRANTY INFORMATION & REGISTRATION Please visit our website: homewardbath.com/warranty-registration Registration must be completed within 45 days of receipt to be valid. A full description of the warranty is available on the Homeward Bath website. 16 | P a g e...
