Homewardbath Phoenix Manual

Steam room
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

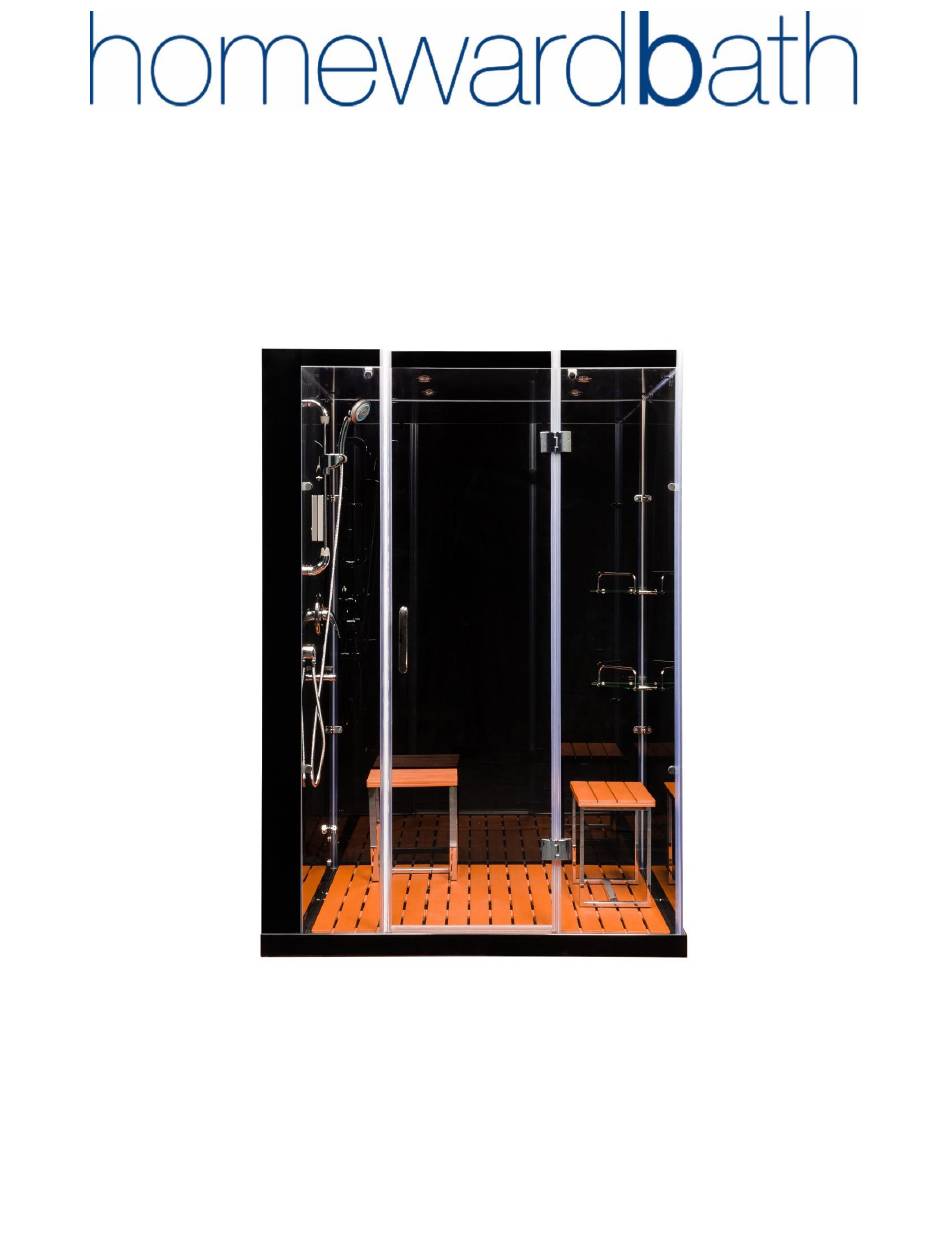

Phoenix Steam Room
Model: M6028/6
In order to operate and use the product properly, please follow all instructions provided in this User's Manual. Our company reserves the right to change the Manual
at any time. The manual takes effect the date it's published. This manual shall prevail if there is any difference between this and previous documents and manuals.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Phoenix and is the answer not in the manual?

Questions and answers

Related Manuals for Homewardbath Phoenix

Summary of Contents for Homewardbath Phoenix

  • Page 1 Phoenix Steam Room Model: M6028/6 In order to operate and use the product properly, please follow all instructions provided in this User’s Manual. Our company reserves the right to change the Manual at any time. The manual takes effect the date it’s published. This manual shall prevail if there is any difference between this and previous documents and manuals.

  • Page 2: Table Of Contents

    Table of Contents NOTICE TO INSTALLERS ................................2 PACKING NOTE ..................................2 PRODUCT FEATURES ................................2 PACKING LIST ..................................3 SECTION PICTURE OF RUBBER SEAL ............................3 GLASS ...................................... 3 WATER AND ELECTRICITY INSTALLATION INSTRUCTION FOR ALL MODELS ................4 TECHNICAL INFORMATION ..............................

  • Page 3: Notice To Installers

    NOTICE TO INSTALLERS 1. The overall height from the ground to the ceiling has to be minimum of 85in for the enclosure. 2. The water pressure has to be more than 47-72 psi and, if the pressure is lower than required, you may install a booster to the water supply.

  • Page 4: Packing List

    PACKING LIST Glass angle bracket installation instruction Hinge installation instruction A．Glass panel A．Hinge B．Threaded Connector B．Glass door C．Angle Bracket C．Gasket D．Connecting Bolt D．Screw E．Allen wrench SECTION PICTURE OF RUBBER SEAL GLASS Glass A—Main Panel, Black Glass B—Large Back Panel, Black Glass C—Side Panel, Black Glass D—Top, Black Glass E—Front Clear Panel with Black Stripe on Top &...

  • Page 5: Water And Electricity Installation Instruction For All Models

    WATER AND ELECTRICITY INSTALLATION INSTRUCTION FOR ALL MODELS Water: Two water lines for cold and hot water respectively ½-inch National Pipe Thread (NPT). Power: Power requirement: Single-phase three-wire 220V power supply. TECHNICAL INFORMATION ✓ Materials: Acrylic, Aluminum, Tempered Glass ✓ Power Supply: 220V ✓...

  • Page 6: Installation Instructions

    INSTALLATION INSTRUCTIONS Note: Confirm the drain setup. 1. Place shower tray in the corner where it will be permanently 6. Place glass C into the slot onto the base and insert into the located. Note: The handing (R/L) of your unit determines corner seal of glass B.
  • Page 7 9. To install the temperature sensor, feel the cable thru the 12. Connect and insulate the steam line. panel. Push temperature sensor probe thru the temperature sensor housing. Note: use silicone on the locknut side of the 13. Place bottom edge of glass A into the slot on the base as glass, so that the probe won’t fall out if someone presses on shown.
  • Page 8 16. Insert the corner seal and corner brackets on the left side of 19. Installing the door gaskets: Two Half-moon gaskets are glass F (will have holes for door hinge) attach to panel D & C installed on the side of the door and the fixed panel where the with angle brackets and connector bolts.

  • Page 9: Controller Functions

    CONTROLLER FUNCTIONS Attention: Avoid bending the pins inside the cable connection the control panel and steam generator. Make sure the arrows on the male and female ends are lined up as illustrated below. DO NOT TWIST. Rev 06/2019...

  • Page 10: Keypad Operation

    KEYPAD OPERATION The blue ring around the fly shuttle indicates the unit is in standby mode and ready for operation (8). Press the on/off button to start the operation of the generator. (1) Note - If the Steam Light (9) starts blinking, it means there is no water coming to the generator. Determine the cause and correct. The unit will display the default time (6) and ambient temperature (5).

  • Page 11: Schematic

    SCHEMATIC Rev 06/2019...

  • Page 12: Pfister Handle Assembly

    PFISTER HANDLE ASSEMBLY TEMPERATURE ADJUSTMENTS TRIM FLANGE ATTACHMENT Position Flange (A) on the Valve (B) with drain hole (C) at the bottom. Place Protective Washer (D) on the short end of the reversible Retainer Sleeve (E). Screw Retainer Sleeve (E) onto threaded section of the Stem and Bonnet (G).

  • Page 13: Maintenance & Care

    MAINTENANCE & CARE Clean the cartridge assembly (D). check to ensure the two oval O-Rings (F) on the back of the cartridge (E) are in place. Disassembly: Reassemble cartridge, stem and bonnet assembly and handle. 1. Replacement parts may be available at Lowes or Home Depot. Turn on the water and test.

  • Page 14: Faucet Function And Usage

    FAUCET FUNCTION AND USAGE • Water Diverter handle o Turn the diverter handle according to the signs marked on its face. • When you use the hand held shower, turn the knob to the hand held shower sign; • When you use the massage jets, turn the knob to the back-massage sign. •...

  • Page 15: Additional Information

    Please visit homewardbath.com/support If you require additional assistance, call 866-783-2661. WARRANTY INFORMATION & REGISTRATION Please visit our website: homewardbath.com/warranty-registration Please note serial number: ____________________________ Registration must be completed within 45 days of receipt to be valid. A full description of the warranty is available on the Homeward Bath website.
