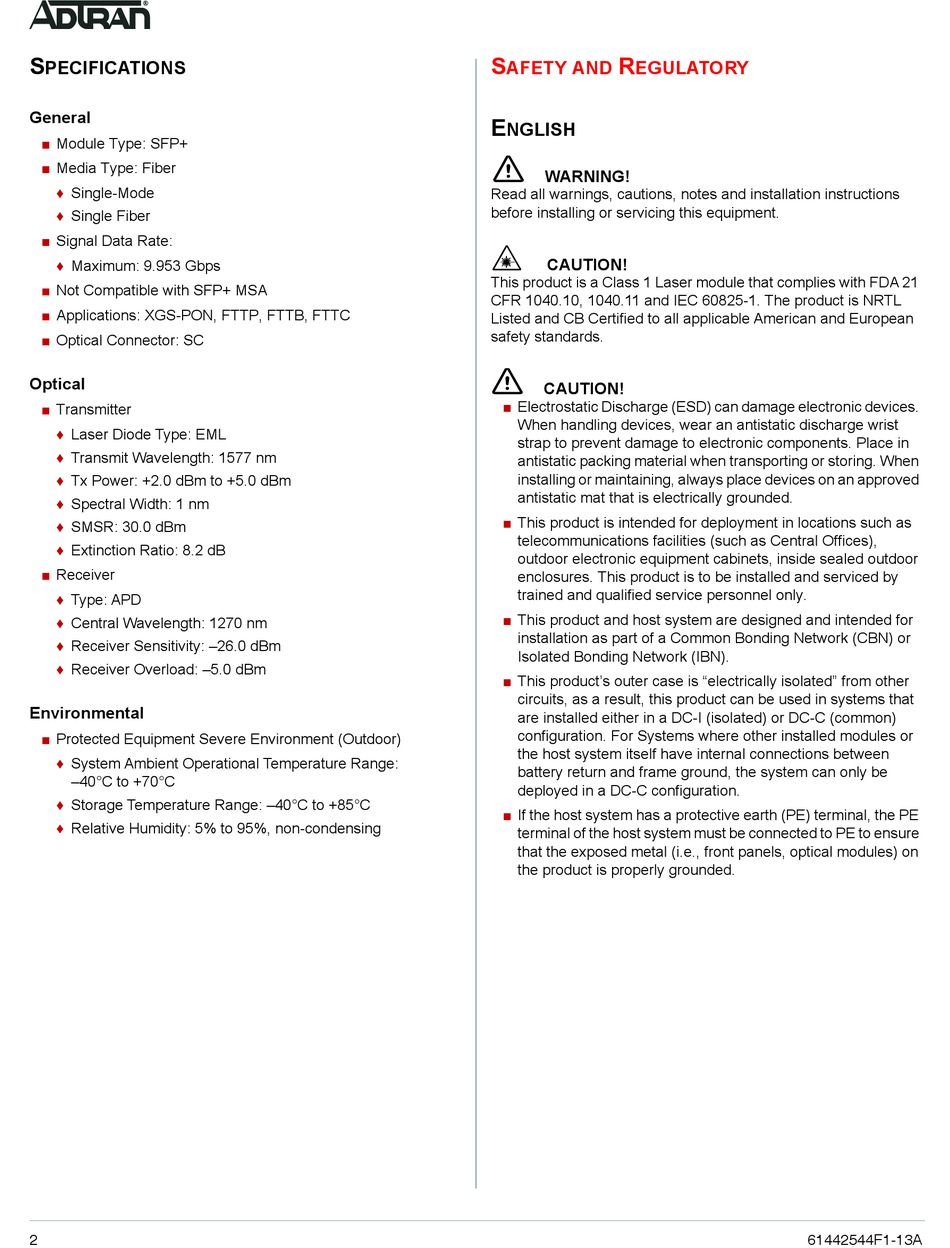

ADTRAN SFP+ Quick Start page 2

S
PECIFICATIONS
General
■ Module Type: SFP+
■ Media Type: Fiber
♦ Single-Mode
♦ Single Fiber
■ Signal Data Rate:
♦
Maximum: 9.953 Gbps
■ Not Compatible with SFP+ MSA
■ Applications: XGS-PON, FTTP, FTTB, FTTC
■ Optical Connector: SC
Optical
■ Transmitter
♦ Laser Diode Type: EML
♦ Transmit Wavelength: 1577 nm
♦ Tx Power: +2.0 dBm to +5.0 dBm
♦ Spectral Width: 1 nm
♦
SMSR: 30.0 dBm
♦
Extinction Ratio: 8.2 dB
■ Receiver
♦ Type: APD
♦ Central Wavelength: 1270 nm
♦ Receiver Sensitivity: –26.0 dBm
♦
Receiver Overload: –5.0 dBm
Environmental
■ Protected Equipment Severe Environment (Outdoor)
System Ambient Operational Temperature Range: 
♦
–40°C to +70°C
♦ Storage Temperature Range: –40°C to +85°C
♦ Relative Humidity: 5% to 95%, non-condensing
2
S R
AFETY AND EGULATORY
E
NGLISH
f
WARNING!
Read all warnings, cautions, notes and installation instructions
before installing or servicing this equipment.
C
CAUTION!
This product is a Class 1 Laser module that complies with FDA 21
CFR 1040.10, 1040.11 and IEC 60825-1. The product is NRTL
Listed and CB Certified to all applicable American and European
safety standards.
f
CAUTION!
■ Electrostatic Discharge (ESD) can damage electronic devices.
When handling devices, wear an antistatic discharge wrist
strap to prevent damage to electronic components. Place in
antistatic packing material when transporting or storing. When
installing or maintaining, always place devices on an approved
antistatic mat that is electrically grounded.
■ This product is intended for deployment in locations such as
telecommunications facilities (such as Central Offices),
outdoor electronic equipment cabinets, inside sealed outdoor
enclosures. This product is to be installed and serviced by
trained and qualified service personnel only.
■ This product and host system are designed and intended for
installation as part of a Common Bonding Network (CBN) or
Isolated Bonding Network (IBN).
■ This product's outer case is "electrically isolated" from other
circuits, as a result, this product can be used in systems that
are installed either in a DC-I (isolated) or DC-C (common)
configuration. For Systems where other installed modules or
the host system itself have internal connections between
battery return and frame ground, the system can only be
deployed in a DC-C configuration.
■ If the host system has a protective earth (PE) terminal, the PE
terminal of the host system must be connected to PE to ensure
that the exposed metal (i.e., front panels, optical modules) on
the product is properly grounded.
