CIS -NW-POE4 Quick Setup Manual

CIS—NW-POE4

Welcome

Thank you for choosing CIS! This quick setup guide will assist you with getting your CIS router up and

running. For more detailed configuration, please check the user manuals located on our website. If you

have any questions, please do not hesitate to contact our support team.

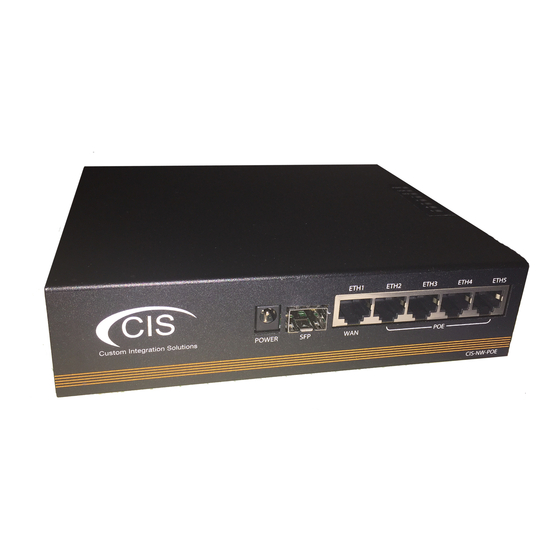

The CIS-NW-POE4 has 5 Gigabit Ethernet ports (supports Auto MDI/X), an SFP port, and a USB 2.0 port

(reserved for future use). It can be powered via the DC jack on the front (11-57V DC) or via Passive PoE

(11-57V DC).

Powering the Router

PoE

Connect the included power supply to the DC jack on the front, or power via passive PoE on ETH1

Your Computer

ISP's Modem

Connect your ISP's modem to the WAN port. Connect your laptop or computer to any of the remaining

ports.

Table of Contents

Do you have a question about the CIS-NW-POE4 and is the answer not in the manual?

Page 1 CIS—NW-POE4 Welcome Thank you for choosing CIS! This quick setup guide will assist you with getting your CIS router up and running. For more detailed configuration, please check the user manuals located on our website. If you have any questions, please do not hesitate to contact our support team.
Page 2 Ethernet adapter to “Using DHCP” 2. Obtain the IP Address of the Default Gateway. CIS Routers use 10.100.1.1 as the default. You can open a command prompt on a Windows machine and enter ipconfig to get the default gateway.
Page 3 Keeping holding until the USR LED light starts flashing, (5 seconds) then release the button to reset to the default CIS configuration. You can use this procedure if you have forgotten the password to access the device, or simply wish to return the unit to its default configuration state.
