CIS -CRS328-24P Quick Start Manual

CIS—CRS328-24P

Welcome

Thank you for choosing CIS! This quick setup guide will assist you with getting your CIS switch up and

running. For more detailed configuration, please check the user manuals located on our website. If you

have any questions, please do not hesitate to contact our support team.

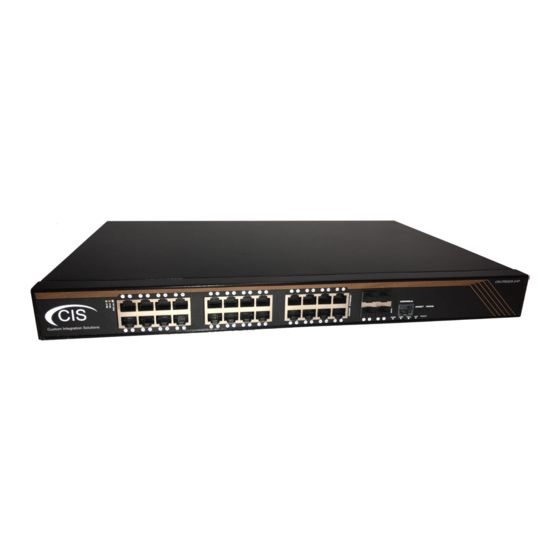

The CIS-CRS328-24P switch is equipped with 24 Gigabit Ethernet ports (with Auto MDI/X), 4 SFP+ ports,

and an RJ45 serial port that is disabled by default. The LEDs will show green when using low voltage PoE,

and red when using high voltage PoE.

Powering the Switch

Connect the included IEC power cable to the rear of the switch.

Routers/Switches

with SFP Ports

Computers/Devices

Router or Switch

Connect your router or upstream switch to any of the Ethernet ports, or use an SFP or SFP+ connection if

your device supports it. Connect your devices to the remaining ports

Table of Contents

Do you have a question about the CIS-CRS328-24P and is the answer not in the manual?

Page 1 CIS—CRS328-24P Welcome Thank you for choosing CIS! This quick setup guide will assist you with getting your CIS switch up and running. For more detailed configuration, please check the user manuals located on our website. If you have any questions, please do not hesitate to contact our support team.
Page 2 VLANs, and static IP by accessing the web interface. 1. Log into your router. Access the DHCP leases. If you’re using a CIS router, select IP from the left toolbar, DHCP Server, then click the Leases tab. Locate the switch in the leases, then make note of it’s current IP address.
Page 3 Hold this button during while the device is powered off, then apply power. Keep holding until the USR LED light starts flashing, (5 seconds) then release the button to reset to the default CIS configuration. You can use this procedure if you have forgotten the password to access the device, or simply wish to return the unit to its default configuration state.
