CIS -SW-POE4 Quick Setup Manual

CIS—SW-POE4

Welcome

Thank you for choosing CIS! This quick setup guide will assist you with getting your CIS switch up and

running. For more detailed configuration, please check the user manuals located on our website. If you

have any questions, please do not hesitate to contact our support team.

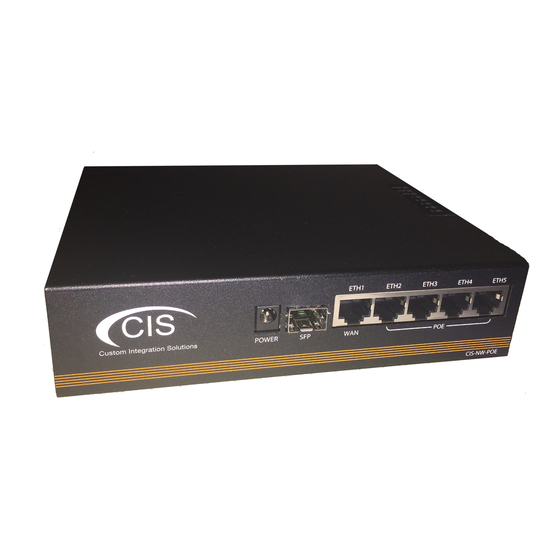

The CIS-SW-POE4 has 5 Gigabit Ethernet ports (supports Auto MDI/X), an SFP port, and a USB 2.0 port

(reserved for future use). It can be powered via the DC jack on the front (11-57V DC) or via Passive PoE

(11-57V DC).

Powering the Switch

PoE

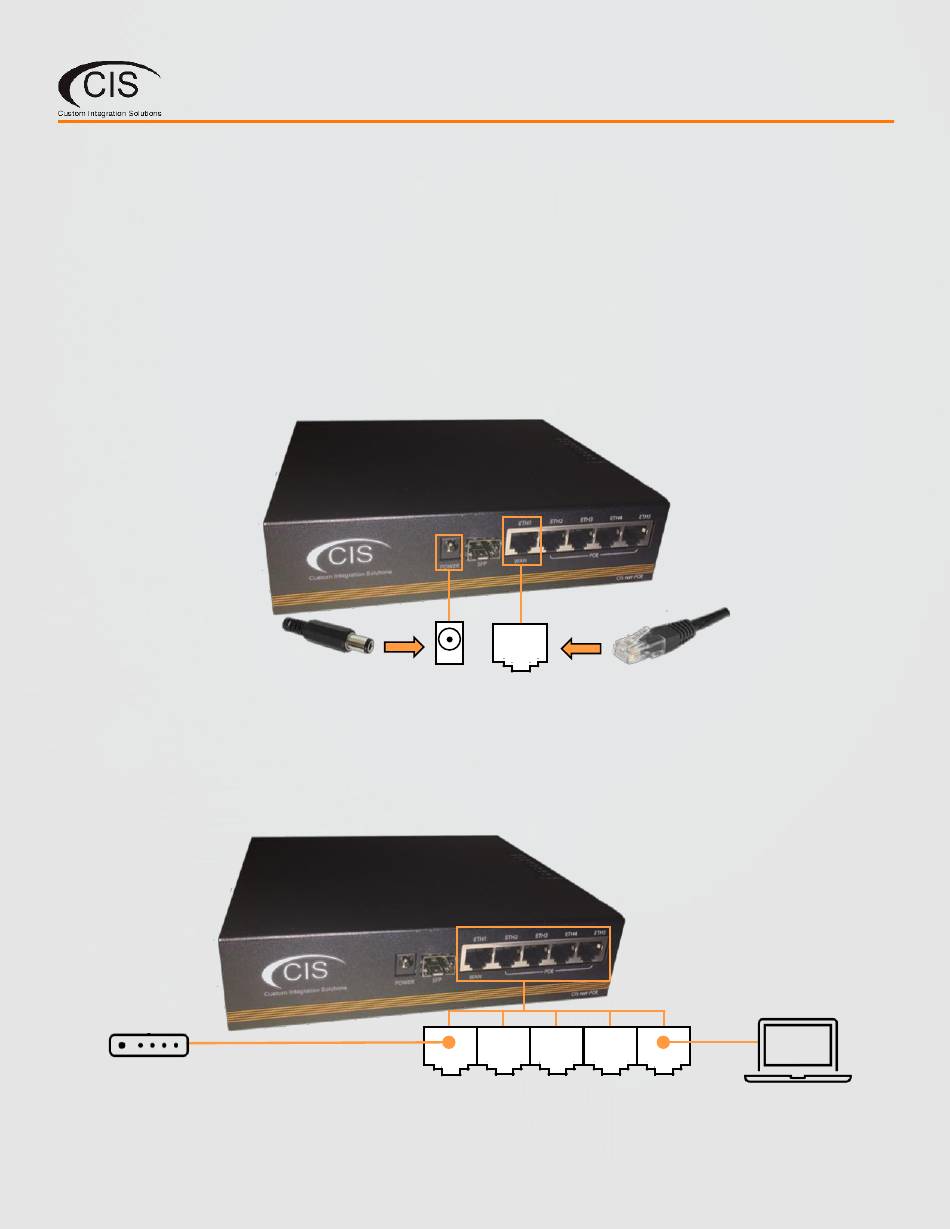

Connect the included power supply to the DC jack on the front, or power via passive PoE on ETH1

Computers/Devices

Router or switch

Connect your router or upstream switch to any of the Ethernet ports. We recommend you use the first or

last port, and stay consistent in your installations to make troubleshooting easier. You must use the first

port if you wish to power the switch via PoE. Connect the remaining ports to your devices.
