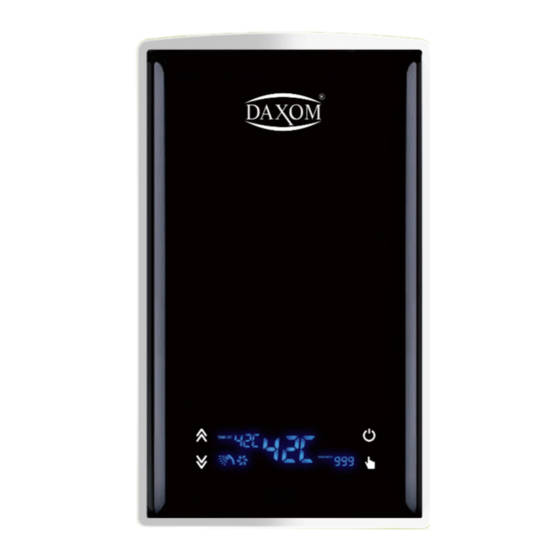

Summary of Contents for DAXOM UKDAX-10KST
-
Page 2: Safety Warnings
TO DAXOM USER In order to perform device’s function properly and for your safety follow the instructions mentioned in the user manual of the device during the mounting and the usage of the device. In case of an unauthorized mounting and maintenance, the device will be void from warranty cover. - Page 3 when it is necessary. Contact with authorized service agency for the new copy in case of lost or damage. 10. This device must only be used as suitable as for its purpose. Producer reject all kinds of liabilities that places or not places in the agreement for damage property or injury indented to person and animals which cause because of consumer wrong using, installation, setting and maintenance.
-
Page 4: Technical Informations
3. TECHNICAL INFORMATIONS Technical Specifications Δt=25 C Hot Power Dimensions Weight Model Water Quantity (Kg) (kW) Y*G*D (mm) (l/min) 3~380 V 50 Hz UKDAX-10KST UKDAX-12KST UKDAX-16KST 410*270*106 UKDAX-18KST 10,4 UKDAX-20KST 11,5 UKDAX-24KST 13,8 1~220 V 50 Hz UKDAX-10KSM UKDAX-12KSM 410*270*106... -
Page 5: Water Installation
4. WATER INSTALLATION Installation of water heater must be done by authorized personnel. 4.1. Installation Conditions and Safety Warnings Obey minimum distance provide for installation for reaching in case of maintenance and repairing of heater. For the correct positioning of device: ... - Page 6 Heating sensitive walls (for example wooden walls) must be protected with steady insulation. Before the installation, wash the all system pipes carefully for removing any residual things that can give damage to operation of the device. There is 6 bar safety valve placed at device water inlet. Make sure that water pressure does not exceed 6 bar.
- Page 8 4.2. Wall Installation Of Water Heater In accordance with above conditions, drill installation holes to chosen place according to dimensions determined side photo. Fasten fixing plug and screws suitable for holes. According to figure below, Install the heater from top to bottom to screws that you fasten the heater. Make sure that screw head is fix to hole of installation part and will not remove.
- Page 9 4.2.2. Connection Of Electric Installations Electrical installation must be done by authorized person according to device capacity and with suitable diameter cable which is determined according to cable length. Electrical installation must have suitable specification for cut off boiler power and residual current device that has ampere value and fuse separately.
- Page 10 5. OPERATION OF WATER HEATER AND USAGE 5.1. Display And Knobs Operating Condition and settings of the device can be follow from LCD panel. Buttons on the side of LCD display are used for usage of water heater. Water flow indicator Device operation indicator Temperature setting value Device operation temperature...
- Page 11 5.2. Operation Od Device And Usage First operation of heater must absolutely be done by authorized service. Our company is not responsible from damages and accidents which can be occur by intervention of unauthorized people Before operation of heater it must be controlled that all mechanic and electric connections are suitable.
- Page 12 By pressing button power or water consumption per/min can be displayed. When you turn on hot water tap water device will be operated and symbol will be seen at the display. In case of water quantity passing inside the device exceeds maximum value, symbol will be seen.
-
Page 13: Electrical Diagram
6. ELECTRICAL DIAGRAM... -
Page 14: Repair And Service
7. REPAIR AND SERVICE During guarantee time we provide Free of Charge Service to our customers against defect of related materials and production. When you meet with problem while using, please contact with our after sales service department. Repairing and maintenance of the device by unauthorizedperson will make the device out of warranty. -
Page 15: Troubleshooting
8. TROUBLESHOOTING Çözüm Yolu Problem Problem Nedeni Water pressure is ove 6 bar Control water pressure Water coming Contact with authorized service inside device Water leakage inside device. after cut off device energy. Control fuse Control is device is ON or not. *No energy to device or it is OFF. - Page 20 Namık Kemal Mah. Marmara Cad. No:74 Ümraniye - İstanbul Tel. : +90 216 369 85 36-37 : +90 216 385 95 45 E-Mail : info@daxom.com Yetkili Servisler: www.daxom.com Merkez Servis Namık Kemal Mah. Marmara Cad. No:74 Ümraniye - İstanbul Tel.
