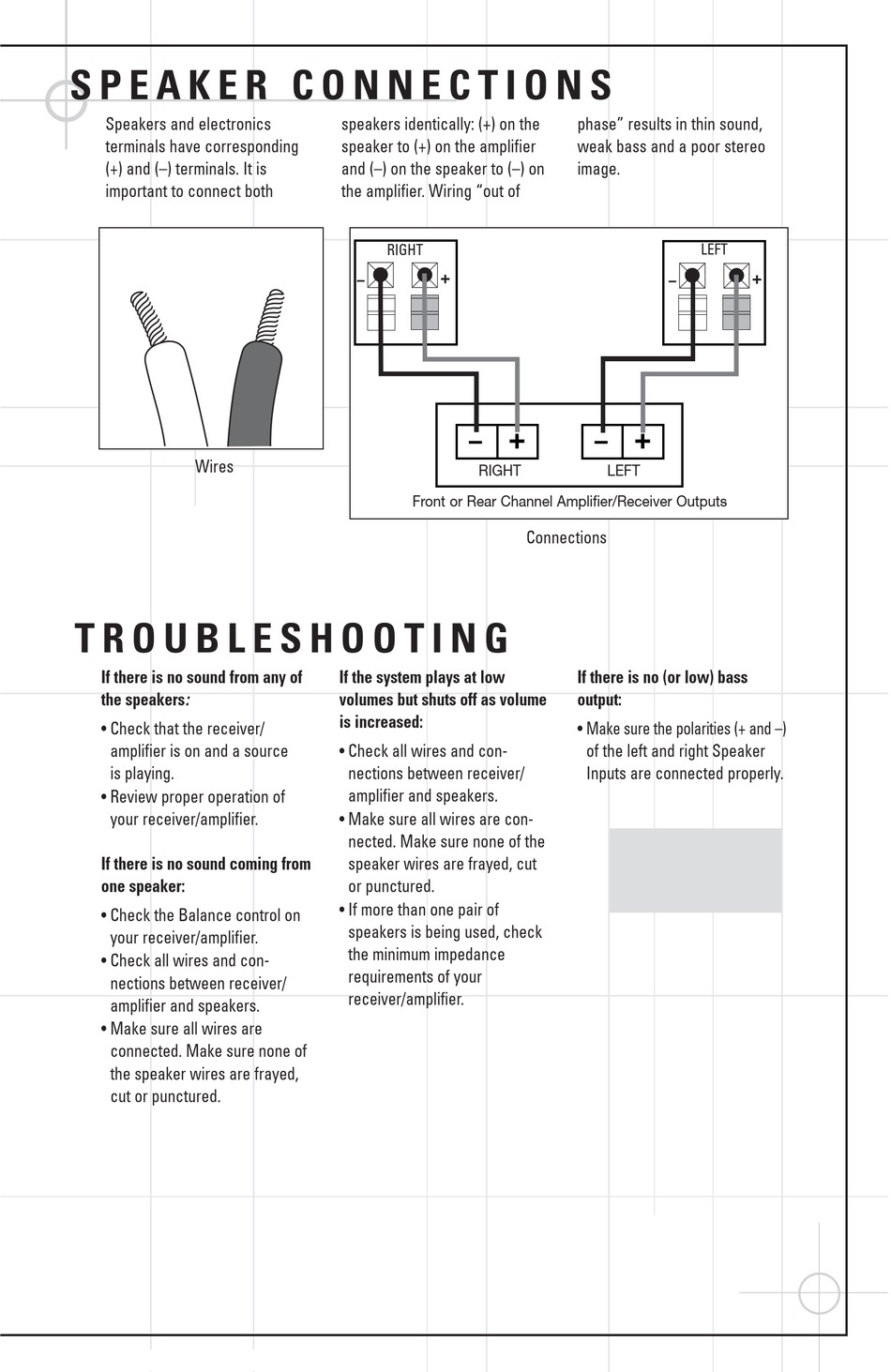

S P E A K E R C O N N E C T I O N S
Speakers and electronics
terminals have corresponding
(+) and (–) terminals. It is
important to connect both
Wires
T R O U B L E S H O O T I N G
If there is no sound from any of
the speakers:
• Check that the receiver/
amplifier is on and a source
is playing.
• Review proper operation of
your receiver/amplifier.
If there is no sound coming from
one speaker:
• Check the Balance control on
your receiver/amplifier.
• Check all wires and con-
nections between receiver/
amplifier and speakers.
• Make sure all wires are
connected. Make sure none of
the speaker wires are frayed,
cut or punctured.
speakers identically: (+) on the
speaker to (+) on the amplifier
and (–) on the speaker to (–) on
the amplifier. Wiring "out of
RIGHT
LEFT
+
–
– +
RIGHT
LEFT
Front or Rear Channel Amplifier/Receiver Outputs Front or Rear Speaker Outputs
If the system plays at low
volumes but shuts off as volume
is increased:
• Check all wires and con-
nections between receiver/
amplifier and speakers.
• Make sure all wires are con-
nected. Make sure none of the
speaker wires are frayed, cut
or punctured.
• If more than one pair of
speakers is being used, check
the minimum impedance
requirements of your
receiver/amplifier.
phase" results in thin sound,
weak bass and a poor stereo
image.
–
– +
LEFT
RIGHT
Connections
If there is no (or low) bass
output:
• Make sure the polarities (+ and –)
of the left and right Speaker
Inputs are connected properly.
LEFT
RIGHT
+
