- Page 1 µVCA II Manual µVCA II Dual Voltage Controlled Amplifier and Cascaded Mixer Manual Revision: 2018.09.13 ...
-
Page 2: Table Of Contents
µVCA II Manual Table of Contents Table of Contents Compliance Installation Installing Your Module Overview Features Front Panel Controls Inputs and Outputs Technical Specifications Page 1 ... -
Page 3: Compliance
(2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by Intellijel Designs, Inc. could void the user’s authority to operate the equipment. Any digital equipment has been tested and found to comply with the limits for a ... -
Page 4: Installation
Installation Intellijel Eurorack modules are designed to be used with a Eurorack-compatible case and power supply. We recommend you use Intellijel cases and power supplies. Before installing a new module in your case, you must ensure your power supply has a free ... - Page 5 Eurorack case. Ensure the red stripe on the cable lines up with the -12V pins on the bus board. On Intellijel power supplies the pins are labelled with the label “-12V” and a thick white stripe: ...
-
Page 6: Overview

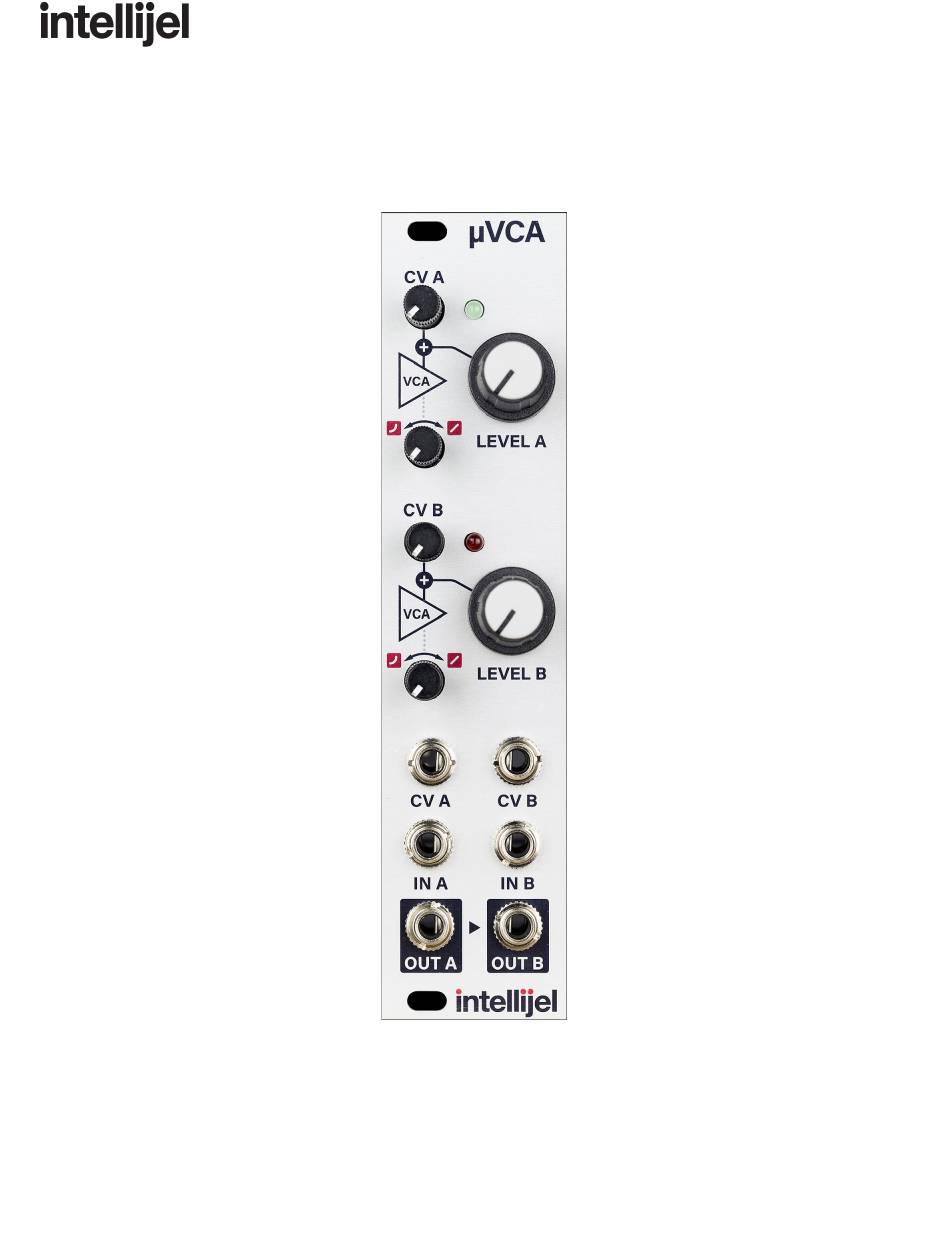

µVCA II Manual Overview The µVCA II is a two-channel voltage controlled amplifier that features a response curve continuously adjustable between linear and exponential response. Features Continuously adjustable response curve between linear and exponential ●... -
Page 7: Front Panel
µVCA II Manual Front Panel Controls 1. CV A - Sets the amount of attenuation for the CV A input. When fully clockwise the CV input is unattenuated. When fully counter-clockwise the CV input has no effect. -
Page 8: Technical Specifications
µVCA II Manual C. OUT A - Output signal for amplifier A. D. CV B - Control voltage input for the level of amplifier B. Summer with the BIAS B control. Voltages above 5 V will result in a gain greater than 1. E.
