Summary of Contents for Intellijel Triatt
- Page 1 Triatt Manual Triatt Triple Attenuator / Inverter / Attenuverter / Mixer / DC Voltage Source Manual Revision: 2018.09.13 ...
-
Page 2: Table Of Contents
Triatt Manual Table of Contents Table of Contents Compliance Installation Installing Your Module Overview Features Front Panel Controls Inputs & Outputs Rear Jumpers Technical Specifications Page 1 ... -
Page 3: Compliance
(2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by Intellijel Designs, Inc. could void the user’s authority to operate the equipment. Any digital equipment has been tested and found to comply with the limits for a ... -
Page 4: Installation
Installation Intellijel Eurorack modules are designed to be used with a Eurorack-compatible case and power supply. We recommend you use Intellijel cases and power supplies. Before installing a new module in your case, you must ensure your power supply has a free ... - Page 5 Eurorack case. Ensure the red stripe on the cable lines up with the -12V pins on the bus board. On Intellijel power supplies the pins are labelled with the label “-12V” and a thick white stripe: ...
-
Page 6: Overview
Triatt Manual Overview This is a utility module we found ourselves always needing and using. The three well spaced knobs can act as active attenuators, attenuverters (bipolar) and inverting attenuators depending on the setting of the three-position switches. ... -

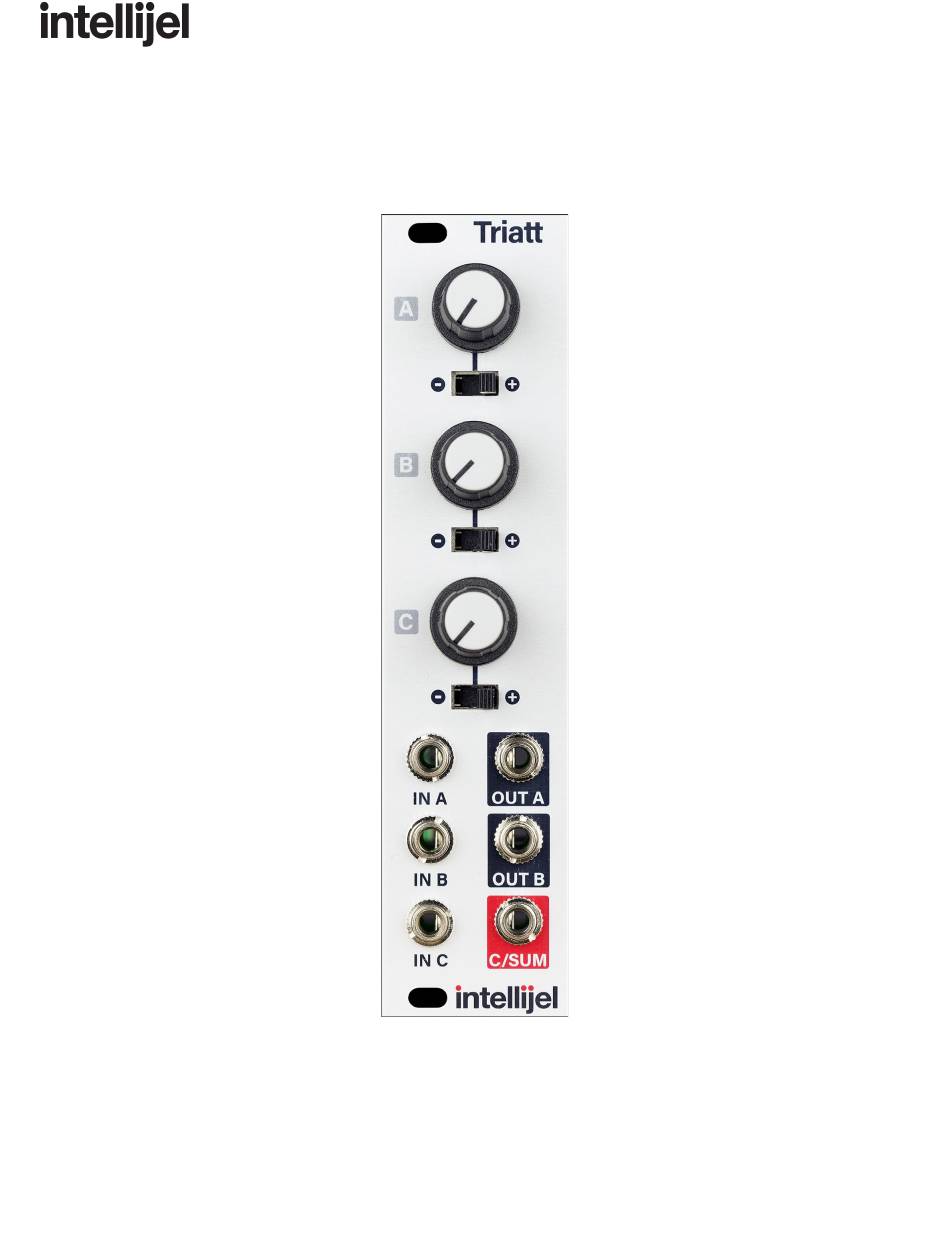

Page 7: Front Panel
Triatt Manual Front Panel Page 6 ... -
Page 8: Controls
Triatt Manual Controls 1. Channel A attenuator Sets the amount of attenuation for the IN A input. The behaviour of the knob depends on the position of the polarity switch [2]. The attenuation amount is linear. ... -
Page 9: Inputs & Outputs
Triatt Manual Inputs & Outputs A. IN A Input for channel A. When no cable is plugged in to the input is either 5 V or 10 V depending on the position of the corresponding jumper on the rear of the module. ... -
Page 10: Rear Jumpers
Triatt Manual Rear Jumpers The rear panel of the module features three jumpers that can be used to set the voltage that’s passed to the input of each channel when no cable is ... -
Page 11: Technical Specifications
Triatt Manual Technical Specifications Width 6 hp Maximum Depth 24 mm Current Draw 16 mA @ +12V 14 mA @ -12V Page 10 ...
