Saxby Lighting Bodenn 78646 Instruction Manual

Advertisement

Quick Links

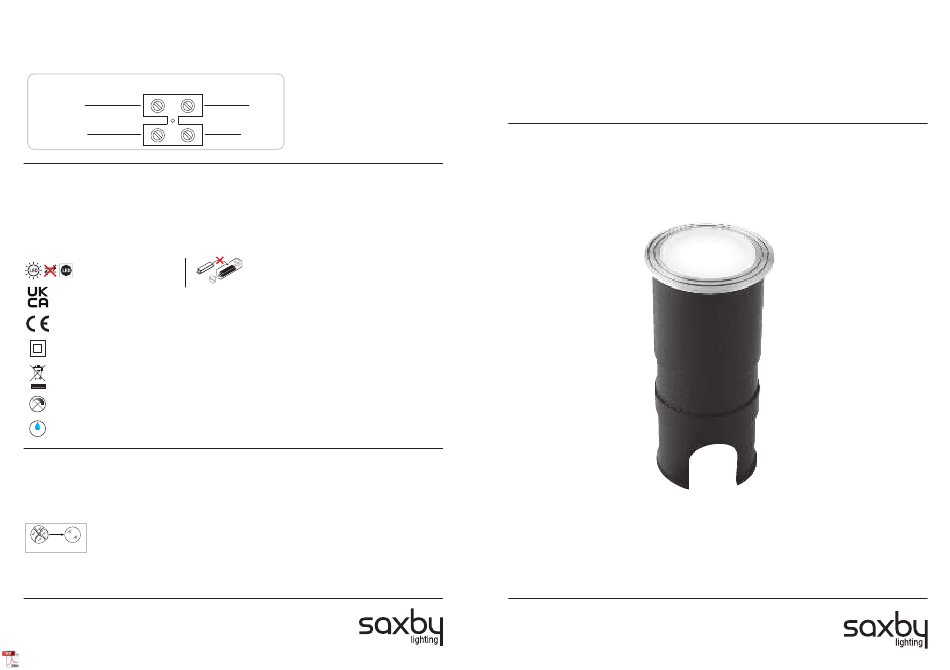

Wiring
Having correctly identified the wiring from your existing light fitting, connect to the approved IP67 (or higher rated) terminal
block in the following way (recommended terminal block ref. 90131/90132)
SUPPLY
NEUTRAL
SWITCHED LIVE
Technical data
Supply
220-240V~, 50Hz
Voltage:
Bulb
78646----1.3W LED module (COB), 4000K
Type:
78647----1.3W LED module (COB), 3000K
These product contains a light source of energy efficiency class F.
Non-replaceable light source
Conformity with all relevant UKCA Directive requirements.
Conformity with all relevant EC Directive requirements.
The power supply is Double Insulated and does not require connection to an Earth circuit.
Waste electrical products should not be disposed of with household waste. Please recycle where facilities
exist. Check with your Local Authority or local store for recycling advice.
This product is not suitable for dimming.
This product is rated at IP67.
67
IP
Care and Safety
We recommend cleaning with a soft dry cloth. Do not use solvents or abrasive cleaners as these could damage the finish.
Always disconnect the product from mains at least 10 minutes allowing to cool down before any maintenance or adjustment.
For your safety, always switch off the supply before maintaining the system.
This LED's are protected by a plastic lens. The lens part must be replaced immediately should it
become cracked or damaged. This fitting must not be used without the plastic lens in place.
Replace Cracked Shade
For further information, please visit https://www.lighting-info.co.uk/78646
V6 29/11/2021
UK Manufacturer: BH17 7BY
EU Manufacturer: Brilliant AG,
Brilliantstrasse 1, D-27442 Gnarrenburg
LIGHT FITTING
Check that...
You have correctly identified the wires.
BLUE (N)
The connections are tight.
No loose strands have been left out of the
BROWN (L)
connection block.
Non-replaceable control gear
Instruction manual
Bodenn
78646, 78647
www.saxbylighting.com
