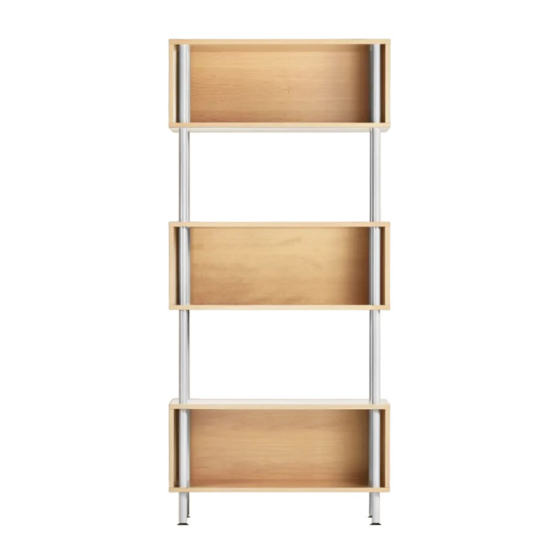

Summary of Contents for BluDot Chicago 3 Box
- Page 1 AS SEM BLY N OT ES | R E V 04 N E E D A H A N D ? @ B L U D O T Contact us at service@bludot.com or We design all our pieces in our Minneapolis studio. Follow 844.425.8368 for assistance.
-
Page 2: Parts & Hardware
Parts & Hardware 8041 Pt. 1001 Pt. 5001 Pt. 5005 Pt. 5002 An�-�p Bracket Pt. 8036 Pt. 8041 Pt. 1217 8042 An�-�p Strap Pt. 1218 Pt. 8042 Upright Top panel Side panel Back panel 1 | 8 4 4 . 4 2 5 . 8 3 6 8 C H I C A G O 3 B O X... -
Page 3: How To Use The Cam Lock System
How to use the cam lock system Note direction of cam arrow. Turn cam clockwise 1/2 turn or until tight. Note direction of cam arrow. A S S E M B L Y N O T E S S E R V I C E @ B L U D O T . C O M | 2... - Page 4 Step 01 AT TA C H T H E S I D E PA N E L S ( X 3 ) . Attach the side panels to the top panel. See page 2 for how to use the cam lock system. PT.
- Page 5 Step 03 AT TA C H T H E T O P PA N E L ( X 3 ) . Attach the top panel to the side panels. See page 2 for how to use the cam lock system. PT.
- Page 6 Step 04 I N S TA L L T H E S TA N D O F F S ( X 4 ) . Install standoff bolts in the lowest hole locations as shown (x4). PT. 1 00 1 x 8 5 | 8 4 4 .
- Page 7 Step 05 I N S TA L L U P R I G H T S . Slide uprights one at a time through the holes in the assembled box. After the legs have been installed, have a second person help lift and bring the case upright.
- Page 8 Step 07 I N S TA L L T H E S E C O N D B O X . Install standoff bolts in the center hole locations as shown (x4). Slide the box assembly over the uprights. PT. 1 00 1 x 8 Step 08 I N S TA L L T H E L A S T B O X .
- Page 9 Step 9 I N S TA L L A N T I -T I P B R A C K E T T O C A S E . Bracket must be installed to top panel of case. In order to prevent damage, it is recommended that 7/64”...
- Page 10 Step 10 AT TA C H A N T I -T I P B R A C K E T T O T H E W A L L . Wall anchors and fasteners are included for installation into drywall. Please consult your local hardware professional to determine the hardware best suited for your wall type.
- Page 11 Step 11 S E C U R E T H E C A S E . Install and tighten the strap prior to using the product. 8042 An�-�p Strap PT. 8 04 2 x 1 A S S E M B L Y N O T E S S E R V I C E @ B L U D O T .
-
Page 12: Additional Information
Additional Information C LEAN Clean with a slightly damp, soft cloth. To remove dirt and fingerprints, use a quality cleaner formulated for wood furniture. Wipe completely dry with a soft cloth in the direction of the wood grain. B L U D O T D E S I G N & M A N U F A C T U R I N G , I N C . D E S I G N E D I N M I N N E A P O L I S , M N...
