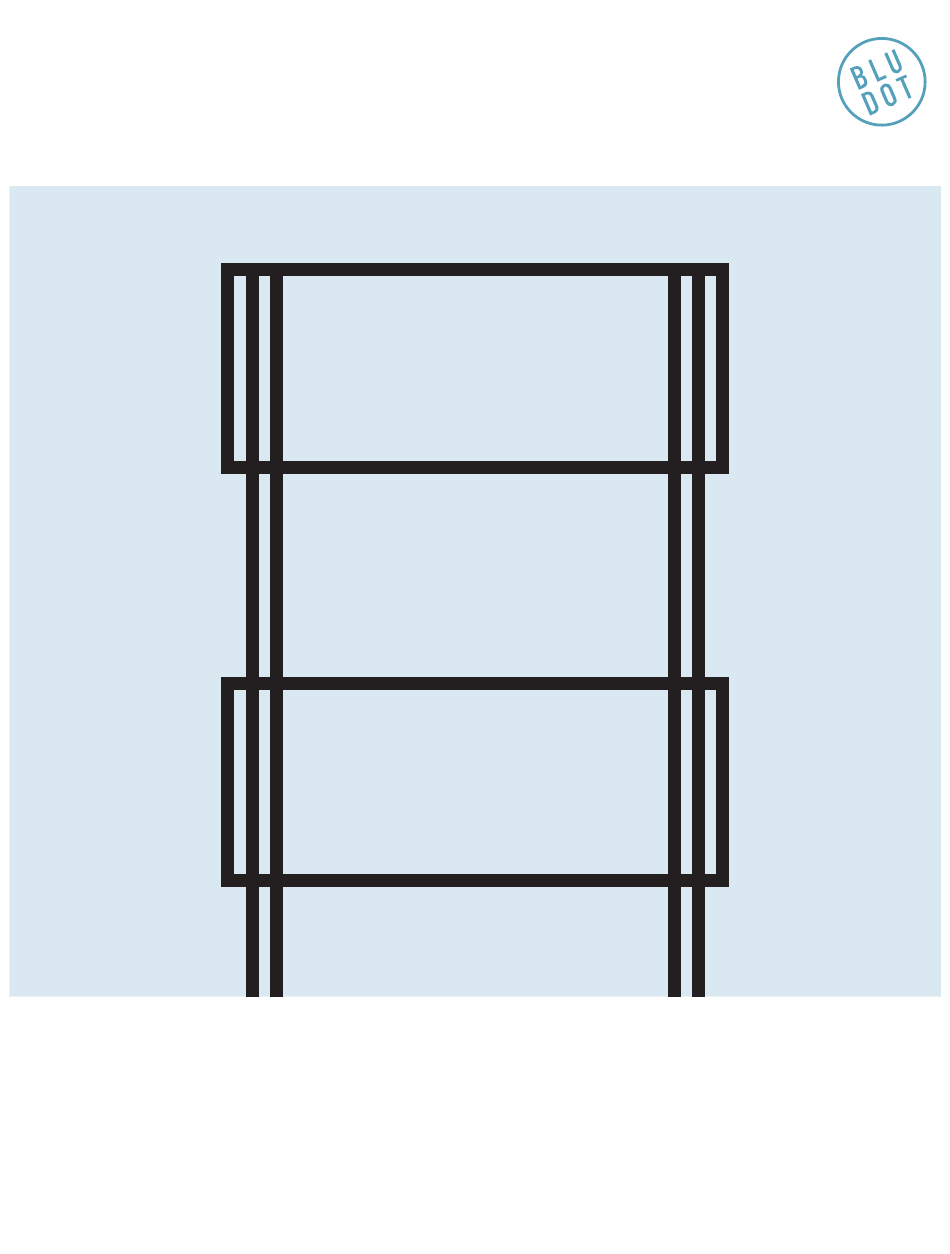

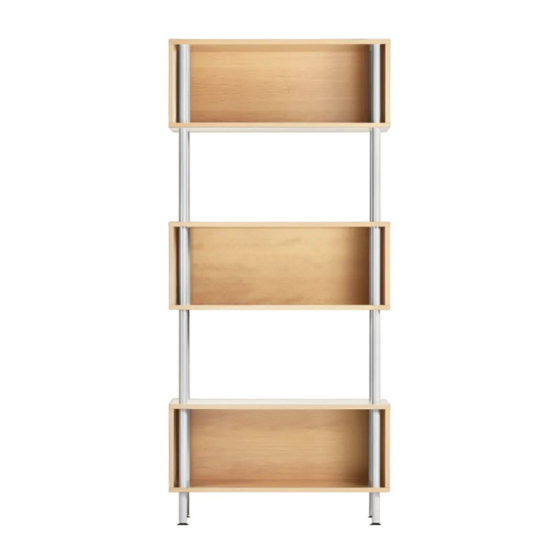

Chicago 3 Box
DESI GNED IN 19 97
AS SEM BLY N OT ES | R E V 00
C O M P E L L I N G N E G AT I V E S PA C E - L I K E A G A P T O O T H .
Sometimes, good design is about what's not there. The Chicago series
takes advantage of negative space, creating smart, elegant storage.
N E E D A H A N D ?
Contact us at service@bludot.com or
844.425.8368 for assistance.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for BluDot Chicago 3 Box
Summary of Contents for BluDot Chicago 3 Box
- Page 1 C O M P E L L I N G N E G AT I V E S PA C E - L I K E A G A P T O O T H . N E E D A H A N D ? Contact us at service@bludot.com or Sometimes, good design is about what’s not there. The Chicago series 844.425.8368 for assistance.
-
Page 2: Parts & Hardware
Parts & Hardware 8041 Pt. 1001 Pt. 5001 Pt. 5005 Pt. 5002 Anti-tip Bracket Pt. 8001 Pt. 8002 Pt. 8041 Pt. 1217 8042 Anti-tip Strap Pt. 1218 Pt. 8042 Upright Top panel Side panel Back panel 1 | 8 4 4 . 4 2 5 . 8 3 6 8 C H I C A G O 3 B O X... -
Page 3: How To Use The Cam Lock System
How to use the cam lock system Note direction of cam arrow. Turn cam clockwise 1/2 turn or until tight. Note direction of cam arrow. A S S E M B L Y N O T E S S E R V I C E @ B L U D O T . C O M | 2... - Page 4 Step 01 AT TA C H T H E S I D E PA N E L S ( X 3 ) . Attach the side panels to the top panel. See page 2 for how to use the cam lock system. PT.
- Page 5 Step 03 AT TA C H T H E T O P PA N E L ( X 3 ) . Attach the top panel to the side panels. See page 2 for how to use the cam lock system. PT.
- Page 6 Step 04 I N S TA L L T H E S TA N D O F F S ( X 4 ) . Push the cap into the top of the upright. Slide the standoff through the bottom hole and secure with bolts.
- Page 7 Step 05 I N S TA L L U P R I G H T S . Slide uprights one at a time through the holes in the assembled box. After the legs have been installed, have a second person help lift and bring the case upright.
- Page 8 Step 07 I N S TA L L T H E S E C O N D B O X . Slide the standoff through the middle hole and secure with bolts (x4). Slide the box assembly over the uprights. PT.
- Page 9 Step 09 AT TA C H A N T I -T I P B R A C K E T T O T H E W A L L . Install anti-tip bracket to wall stud 1-inch below case top panel height. 1”...
- Page 10 Step 10 I N S TA L L A N T I -T I P B R A C K E T T O C A S E . Bracket must be installed to top panel of case. In order to prevent damage, it is recommended that 3/32”...
- Page 11 Step 11 S E C U R E T H E C A S E . Install and tighten the strap prior to using the product. 8042 Anti-tip Strap PT. 8 04 2 x 1 A S S E M B L Y N O T E S S E R V I C E @ B L U D O T .
-
Page 12: Additional Information
Additional Information C LEAN Clean with a slightly damp, soft cloth. To remove dirt and fingerprints, use a quality cleaner formulate for wood furniture. Wipe completely dry with a soft cloth in the direction of the wood grain. B L U D O T D E S I G N & M A N U F A C T U R I N G , I N C . D E S I G N E D I N M I N N E A P O L I S , M N...
