Assembly Instructions & User's Manual
for

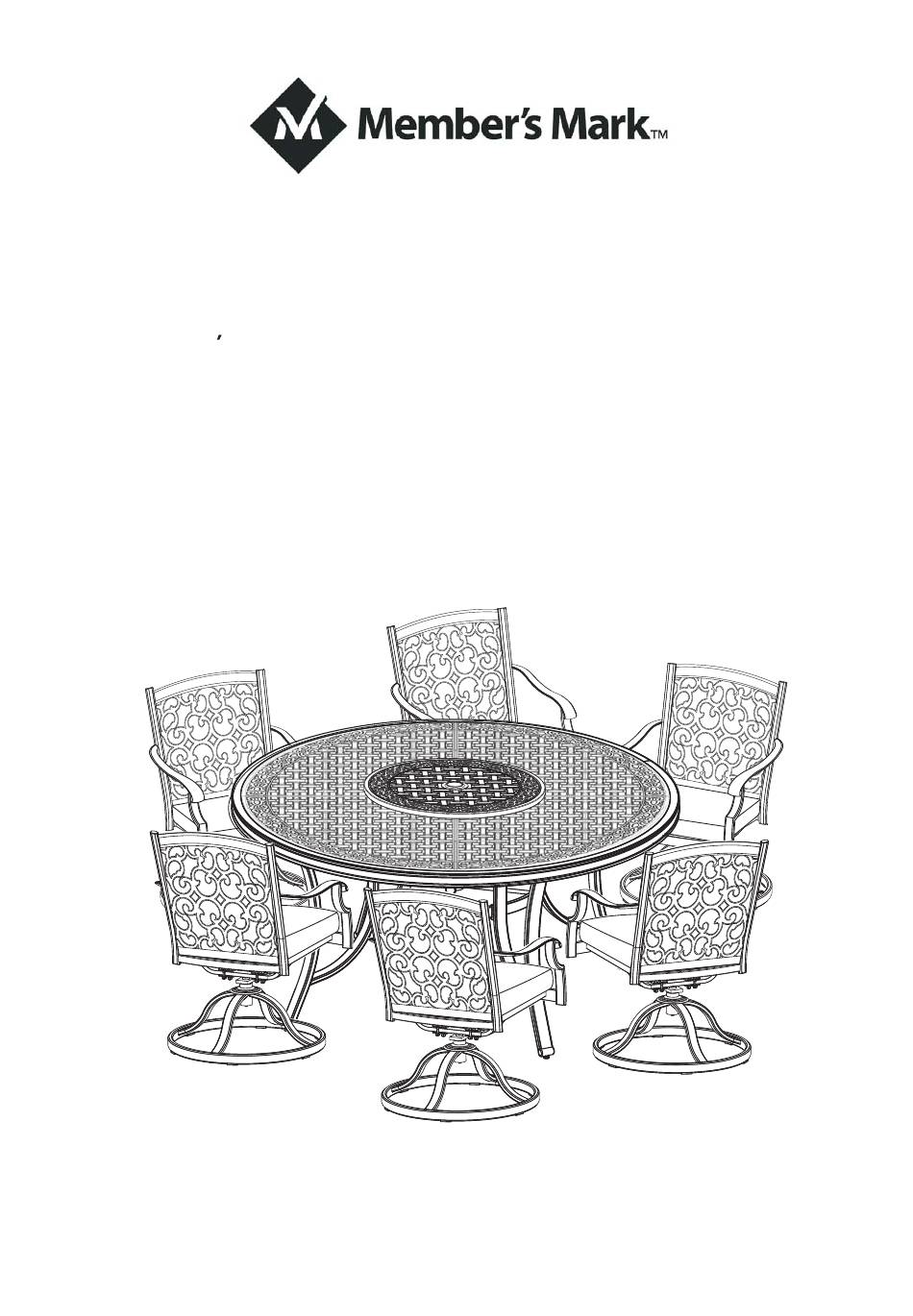

Members Mark Hastings 8PC Regular Dining Set
Item Number:
Model Number: AAX08801-8SC
Customer Assistance
: 1-800-416-3511
(spare/replacement parts)
or Email: customerservice@agio-usa.com
THIS ASSEMBLY MANUAL CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Page 1
Need Assistance? Visit us at: samsclub.com/membersmarkhelp
Advertisement
Table of Contents
Related Manuals for Members Mark AAX08801-8SC
Summary of Contents for Members Mark AAX08801-8SC
- Page 1 Assembly Instructions & User's Manual Members Mark Hastings 8PC Regular Dining Set Item Number: Model Number: AAX08801-8SC Customer Assistance : 1-800-416-3511 (spare/replacement parts) or Email: customerservice@agio-usa.com THIS ASSEMBLY MANUAL CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
-
Page 2: Table Of Contents
Table of Contents Quality Statement.............3 Important Safety Information..........3 Before Assembly..............3 Package Contents............4 Product Information............5 Swivel Rocker Components..............6 Hardware..............6 Tools................6 Step1.................7 Table Components...............8 Hardware..............8 Tools................8 Step1-Step4............9-10 Care & Use and Storage Instructions.........11 Warranty Information............11 Page 2 Need Assistance? Visit us at: samsclub.com/membersmarkhelp... -
Page 3: Quality Statement
Quality Statement Important Safety Information Please read all instructions carefully before assembling this furniture. For your safety, assembly by two or more adults is strongly recommended. Use only vendor-supplied hardware to assemble this item. Using unauthorized hardware could jeopardize the structural integrity of the item. Hardware may loosen overtime. -
Page 4: Package Contents
Package Contents 1Set / 2Ctn Box 1 of 2： Component Quantity Description Swivel Rocker Table Leg Leg Connector Bracket Furniture Cover Box 2 of 2： Component Description Quantity Table Top Lazy Susan Page 4 Need Assistance? Visit us at: samsclub.com/membersmarkhelp... -
Page 5: Product Information
Product information Factory Weight Description Dimensions Part No. Assembly Capacity 250lb per seat Swivel Rocker AAX08801 25.5" W *24.25" D *34.5" H A.Foot Cap FC0175 Factory Weight Description Dimensions Part No. Assembly Capacity Dining Table ALX27215 59.5" RD*28.5" H A.Foot Cap FC0607 Factory Weight... -
Page 6: Components
Components CHAIR FRAME SWIVEL BASE & ROCKER Part No.AR20323 ASSEMBLY Qty 1 Part No.AR20324 Qty 1 Hardware (H1) (H2) (H3) 5/16" X 40 MM BOLT Ø8.0 X 2.3 MM SPRING WASHER "U" METAL PLATE PART NO:HW0806 PART NO:HW0003 PART NO:HW0618 Qty: 4 Qty: 4 Qty: 2... -
Page 7: Step1
Step 1 (H1) (H2) (H3) 5/16" X 40 MM BOLT Ø8.0 X 2.3 MM SPRING WASHER U" METAL PLATE Qty: 4 Qty: 4 Qty: 2 (H4) (H6) (H7) 5/16" NUT HEX WRENCH-1 HEX WRENCH-2 Qty: 4 Qty: 1 Qty: 1 CAUTION: 1.Note the horseshoe shape of the rocker plate. -
Page 8: Components
Components TABLE TOP LEG CONNECTOR BRACKET TABLE LEG Part No. AT73002 Part No. AT73003 Part No. AT73004 Qty 1 Qty 1 Qty 4 LAZY SUSAN Part No. AZX03307 Qty 1 Hardware (H3) (H1) (H2) 1/4" NUT 1/4" X 18 MM BOLT Ø6.5 X 1.0 MM WASHER PART NO:HW0014 PART NO:HW0806... -
Page 9: Step1-Step4
Step 1 - Step 4 Step 1 (H1) (H2) 1/4" X 18 MM BOLT Ø6.5 X 1.0 MM WASHER Qty: 8 Qty: Hand tighten only 2-3 turns. Step 2 (H2) (H3) Ø6.5 X 1.0 MM WASHER 1/4" NUT Qty: 8 Qty: 8 Hand tighten only2-3 turns. - Page 10 Step 3 (H5) (H6) HEX BOLT DRIVER HEX WRENCH Qty: 1 Qty: 1 NOTE: Bolts must be FULLY tightened. Step 4 Page 10 Need Assistance? Visit us at: samsclub.com/membersmarkhelp...
-
Page 11: Care & Use And Storage Instructions
Care & Use Instructions CARE AND MAINTENANCE FRAMES Cleaning - Use mild soap and warm water. Do not use abrasive materials, cleansers or bleach products. Rinse with clean water and dry thoroughly. Maintenance - Periodically clean and dry thoroughly. Be sure to drain any water accumulated inside the frames. - Page 12 Distributed by Sam's West Inc. 2101 SE Simple Savings Dr. Bentonville, Arkansas 72716-0745 Made in China Page 12 Need Assistance? Visit us at: samsclub.com/membersmarkhelp...
