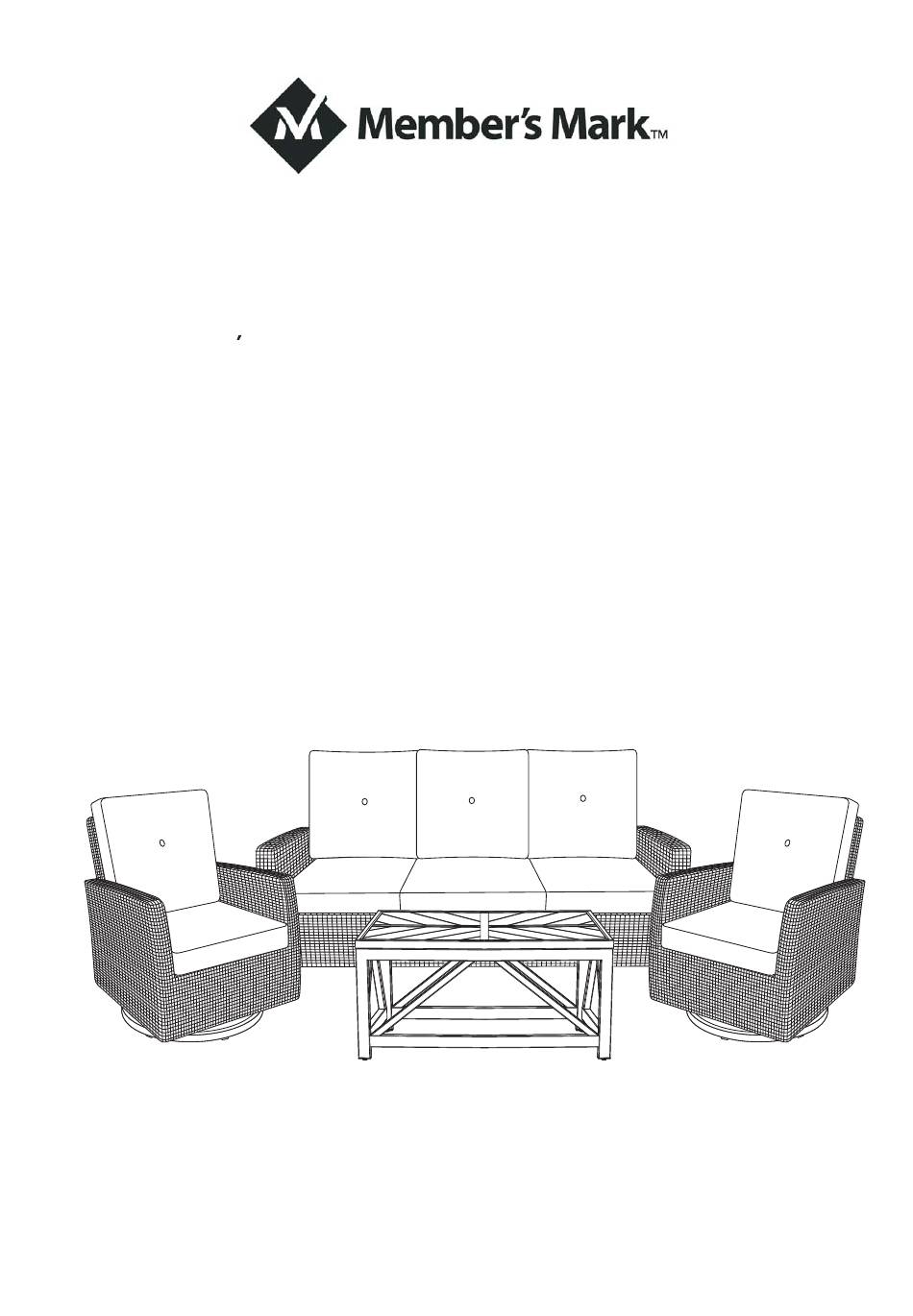

Assembly Instructions & User's Manual
for
Members Mark Fremont 4pc Deep Seating Set
in Slate/ in Indigo
Item Number:
Model Number: BGV01523-4SC/BGV01523-4IC
Customer Assistance
: 1-800-416-3511
(spare/replacement parts)
or Email: customerservice@agio-usa.com
THIS ASSEMBLY MANUAL CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Page 1
Need Assistance? Visit us at: samsclub.com/membersmarkhelp
Advertisement
Table of Contents
Related Manuals for Members Mark Fremont BGV01523-4SC
Summary of Contents for Members Mark Fremont BGV01523-4SC
- Page 1 Assembly Instructions & User's Manual Members Mark Fremont 4pc Deep Seating Set in Slate/ in Indigo Item Number: Model Number: BGV01523-4SC/BGV01523-4IC Customer Assistance : 1-800-416-3511 (spare/replacement parts) or Email: customerservice@agio-usa.com THIS ASSEMBLY MANUAL CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
-
Page 2: Table Of Contents
Table of Contents Quality Statement.............3 Important Safety Information..........3 Before Assembly..............3 Package Contents............4 Product Information............5 Sofa Components..............6 Hardware..............6 Tools................6 Step1-Step2...............7 Table Components...............8 Hardware..............8 Tools................8 Step1-Step4............9-10 Care & Use and Storage Instructions.........11 Warranty Information............11 Page 2 Need Assistance? Visit us at: samsclub.com/membersmarkhelp... -
Page 3: Quality Statement
Quality Statement Important Safety Information Please read all instructions carefully before assembling this furniture. For your safety, assembly by two or more adults is strongly recommended. Use only vendor-supplied hardware to assemble this item. Using unauthorized hardware could jeopardize the structural integrity of the item. Hardware may loosen overtime. -
Page 4: Package Contents
Package Contents 1Set / 1Ctn Box 1 of 1： Component Quantity Description Swivel Glider Sofa Coffee Table Furniture Cover Page 4 Need Assistance? Visit us at: samsclub.com/membersmarkhelp... -
Page 5: Product Information
Product information Weight Factory Description Dimensions Part No. Capacity Assembly Swivel Glider 250lb per seat BGV01523 28" W *32.5" D *35.5" H A.Foot Cap FC0768 Weight Factory Description Dimensions Part No. Capacity Assembly 250lb per seat, Sofa BGV01506 74" W *32.5" D *35.5" H total 750lb A.Foot Cap-1 FC0607... -
Page 6: Components
Components SOFA FRAME B MIDDLE LEG Part No.SK1413 Part No.SK1414 Qty 1 Qty 1 Hardware (H1) (H2) 5/16" X 30 MM BOLT Ø9 X 1.5 MM WASHER PART NO:HW0821 PART NO: Qty: 3 Qty: 3 Tools (H3) HEX BOLT DRIVER PART NO:HW0006 Qty: 1 Page 6... -
Page 7: Step1-Step2
Step 1 - Step 2 Step 1 (H1) (H3) (H2) 5/16" X 30 MM BOLT HEX BOLT DRIVER Ø9 X 1.5 MM WASHER Qty: 3 Qty: 1 Qty: 3 NOTE: Bolts must be FULLY tightened. Step 2 Page 7 Need Assistance? Visit us at: samsclub.com/membersmarkhelp... -
Page 8: Components
Components TABLE TOP TABLE LEG-1 TABLE LEG-2 Part No. AT73141 Part No. AT73142 Part No. AT73143 Qty 1 Qty 2 Qty 2 Hardware (H1) (H2) (H3) 1/4" X 20 MM BOLT Ø18 XØ6.5 X 1.5 MM WASHER Ø6.5 X 1.0 MM WASHER PART NO:HW0802 PART NO:HW0712 PART NO:HW0004... -
Page 9: Step1-Step4
Step 1 - Step 4 Step 1 (H1) (H3) 1/4" X 20 MM BOLT Ø6.5 X 1.0 MM WASHER Qty: 8 Qty: Hand tighten only 2-3 turns. Step 2 (H1) (H2) 1/4" X 20 MM BOLT Ø18 XØ6.5 X 1.5MM Qty: 4 WASHER Qty:... - Page 10 Step 3 (H4) HEX BOLT DRIVER Qty: 1 NOTE: Bolts must be FULLY tightened. Step 4 Page 10...
-
Page 11: Care & Use And Storage Instructions
Care & Use Instructions CARE AND MAINTENANCE FRAMES Cleaning - Use mild soap and warm water. Do not use abrasive materials, cleansers or bleach products. Rinse with clean water and dry thoroughly. Maintenance - Periodically clean and dry thoroughly. Be sure to drain any water accumulated inside the frames. - Page 12 Distributed by Sam's West Inc. 2101 SE Simple Savings Dr. Bentonville, Arkansas 72716-0745 Made in China Page 12 Need Assistance? Visit us at: samsclub.com/membersmarkhelp...
