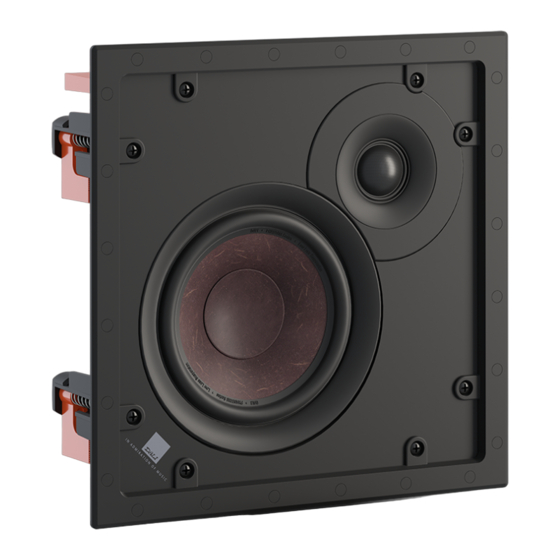

Summary of Contents for Dali PHANTOM H Series

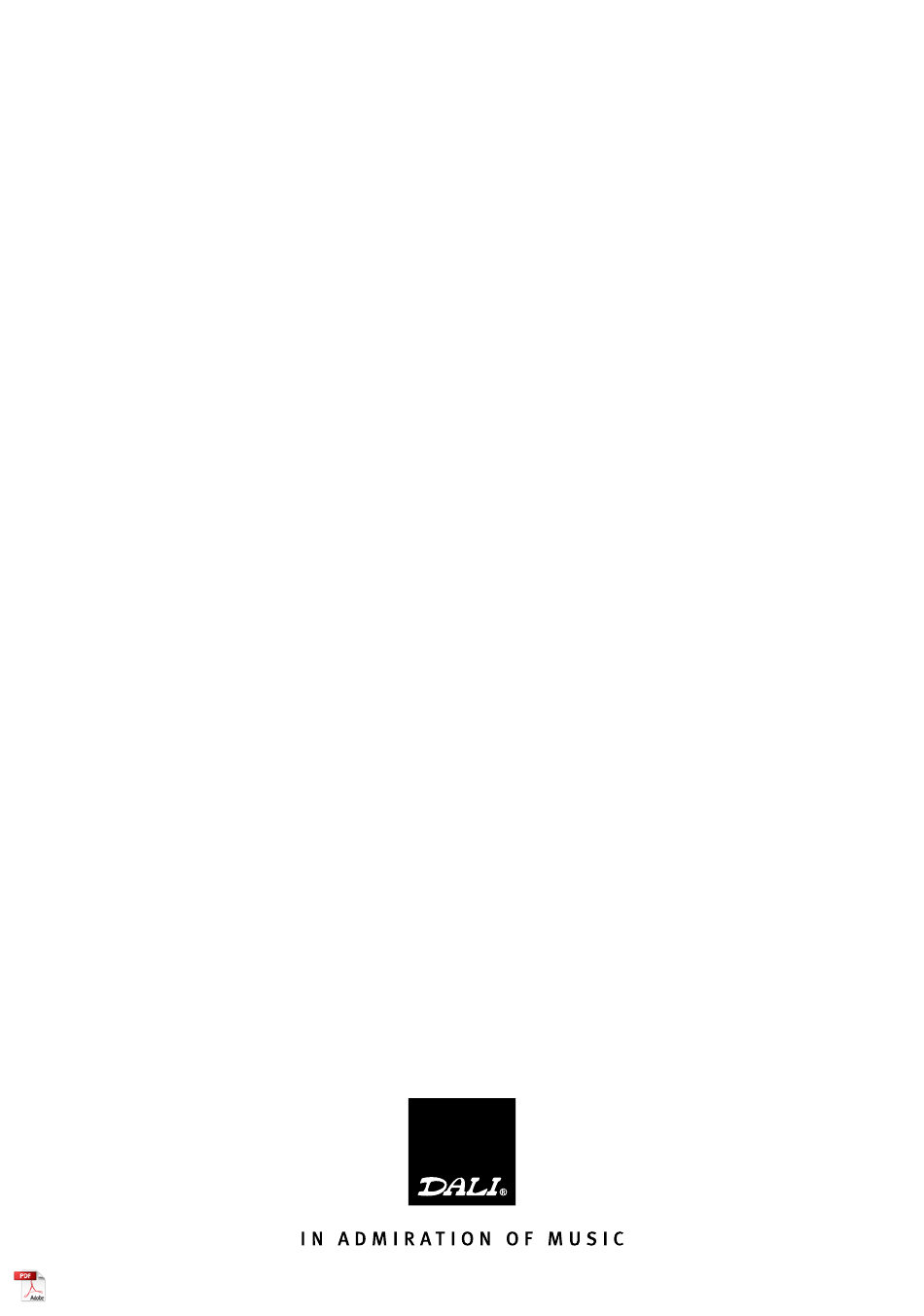

  • Page 1 ENGLISH - DEUTSCH - DANSK - 零部件 - FRANç A I S D A L I P H A N T O M H S e r i e s M A N U A L H - 5 0 H - 6 0 H - 8 0 H - 1 2 0...
  • Page 2 T A B L E 1 PHANTOM H 50-60-80 PHANTOM H-120 2 pcs 1 pcs 2 pcs 1 pcs 1 pcs 1 pcs 2 pcs 1 pcs 1 pcs 1 pcs 3 mm 1 pcs 1 pcs F I G U R E 1 A F I G U R E 1 B...
  • Page 3 F I G U R E 2 A F I G U R E 2 B F I G U R E 3 F I G U R E 4 F I G U R E 5 F I G U R E 6 5 mm 5 mm F I G U R E 7...
  • Page 4 C O N T E N T S 1.0 OWNER’S MANUAL 2.0 SAFETY PRECAUTIONS 3.0 UNPACKING 4.0 SETUP AND POSITIONING 5.0 CUT-OUT TEMPLATE 6.0 INSTALLATION 7.0 RUNNING-IN 8.0 MAGNETIC SHIELDING 9.0 MAINTENANCE 10.0 ENVIRONMENTAL INFORMATION AND DISPOSAL 11.0 TECHNICAL SPECIFICATIONS...
  • Page 5: Safety Precautions

    DALI PHANTOM H Series is also very suitable in larger areas where high quality sound is desired, e.g. in hallways or shop areas. DALI PHANTOM H Series is a full-range speaker, and performs very well on its own.
  • Page 6 A corner location will accentuate it even more, but will also increase the reflections. NOTE: The flow damping foam material mounted on the back of the DALI PHANTOM H Series should not be removed. It will assist in managing bass/midrange reproduction by damping resonances in the cavity behind the open-back woofer.
  • Page 7: C U T - O U T T E M P L A T E

    DALI PHANTOM H-50 and H-60 is 95 mm / 3.7”, for the DALI PHANTOM H-80 it is 106 mm / 4.2” and for the DALI PHANTOM H-120 it is 168 mm / 6.7”. 6 . 0 I N S T A L L A T I O N Please study and follow the safety guidelines found in chapter 2.0 of this manual! The...
  • Page 8: Maintenance

    1 0 . 0 E N V I r O N M E N T A L I N f O r M A T I O N A N D D I S P O S A L DALI products are designed to meet the international directives concerning Restriction of Hazardous Substances (RoHS) and disposal of Waste Electrical and Electronic Equipment (WEEE). The waste symbol indicates that the speakers meet the directives (see figure 8).
  • Page 9: Technical Specifications

    In Table 2 you will find most common specifications for our speakers. Please bear in mind, that the sound quality from a speaker cannot be judged by technical specifications only. To compare the different speakers, we recommend you to listen to the different speakers in question. Enjoy your new DALI PHANTOM H Series Speaker!
  • Page 10 TABLE 2 - PHANTOM H SERIES TECHNICAL SPECIFICATIONS PHANTOM H-50 PHANTOM H-60 PHANTOM H-80 PHANTOM H-120 Frequency Range +/-3dB [Hz] 52 – 25,000 51 – 25,000 46 – 25,000 32 – 25,000 Sensitivity (2.83V/1m)[dB] Nominal Impedance [ohm] Maximum SPL [dB]...
  • Page 11 DALI UK +44 (0)845 644 3537 DALI USA +1 303 464 7000 DALI Denmark +45 9672 1155 www.dali-speakers.com...
