iLive IT188B Instruction Manual

Ilive it188b: user guide
Hide thumbs Also See for IT188B:

Advertisement

Table of Contents

See also: Instruction Manual
IT188B
INSTRUCTION MANUAL
Contents
Warnings and Precautions ............................................................................... 2
Important Safety Instructions ............................................................................ 3
In the Box & Features ....................................................................................... 4
Powering the Unit & Changing the Remote Battery ......................................... 5
Setting the Clock .............................................................................................. 6
Docking and Playing an iPod............................................................................ 7
Using the Stereo RCA Inputs.......................................................................... 10
Mounting the Unit to a Wall .............................................................................11
Location of Controls & Control Definitions ................................................. 12-19
Service Information......................................................................................... 20

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IT188B and is the answer not in the manual?

Questions and answers

Related Manuals for iLive IT188B

Summary of Contents for iLive IT188B

  • Page 1: Table Of Contents

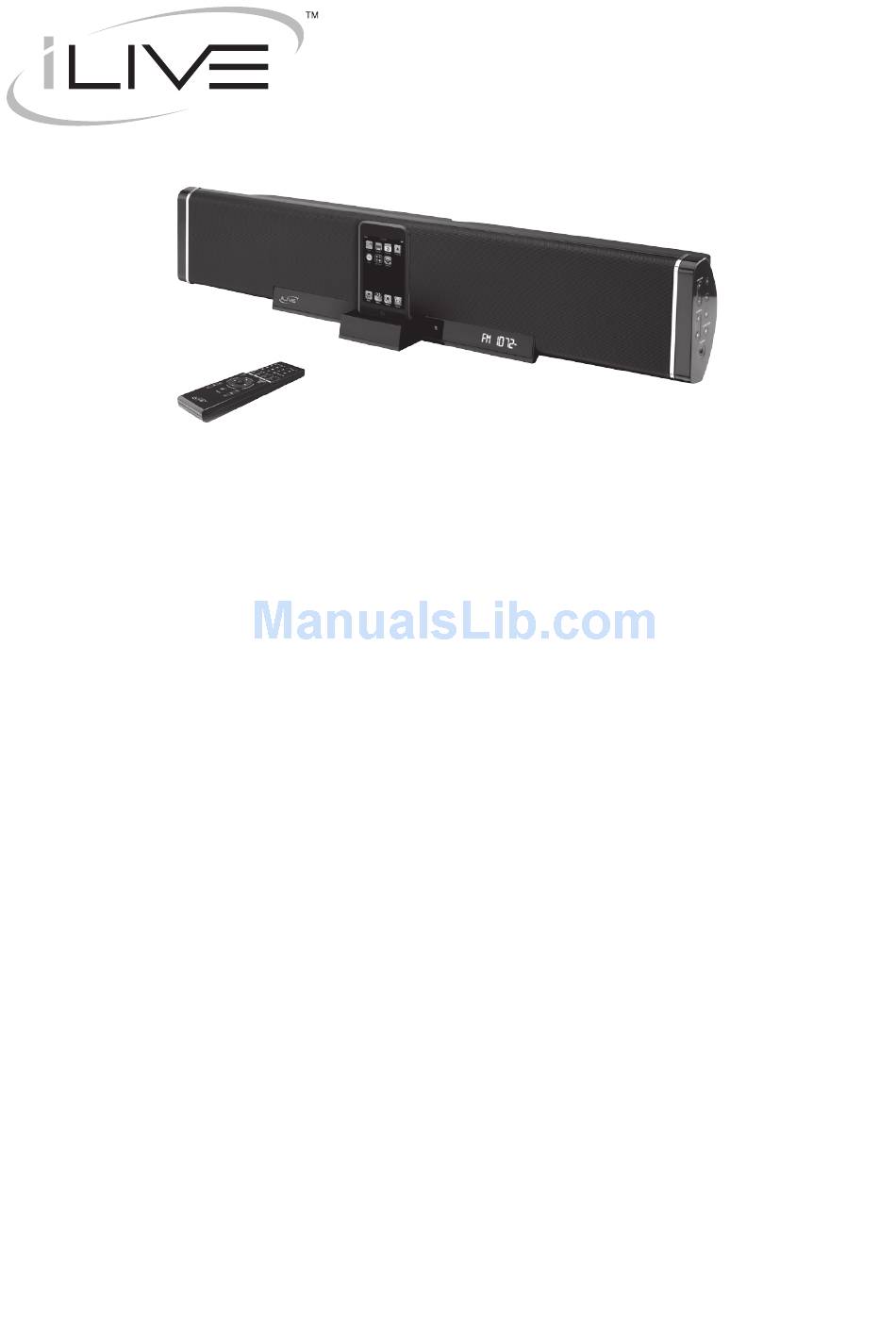

    IT188B INSTRUCTION MANUAL Contents Warnings and Precautions ... 2 Important Safety Instructions ... 3 In the Box & Features ... 4 Powering the Unit & Changing the Remote Battery ... 5 Setting the Clock ... 6 Docking and Playing an iPod... 7 Tuning the AM/FM Radio &...

  • Page 2: Warnings And Precautions

    Warnings and Precautions TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. This symbol, located on back or bottom of the unit, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

  • Page 3: Important Safety Instructions

    Important Safety Instructions 1. Read these Instructions. . Keep these Instructions. . Heed all Warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with a damp cloth. 7. Do not block any of the ventilation openings. Install in accordance with the manufacturers instructions. 8.

  • Page 4: In The Box & Features

    In the Box Remote Control Brackets for iPod AM and FM Antennas Remote Control, Remote Batteries, included Wall-Mount Hardware and Instructions Features • Docking Station for iPod® • Certified iPod Connector installed for iPod docking. • Recharge Circuit for iPod/mini/nano/ photo/video •...

  • Page 5: Powering The Unit & Changing The Remote Battery

    Powering the Unit Changing the Remote Battery WARNING: Danger of explosion if the remote control’s batteries are incorrectly installed. Replace only with the same or equivalent battery. To access the battery, slide the battery cover off in the direction of the arrow above the word “Open”. Replace the old battery with an equivalent new battery (AAA Batteries).

  • Page 6: Setting The Clock

    Setting the Clock 1. With the unit powered off, press the Time Set Button on the remote. The hour will begin to blink, indicating that it can be adjusted. . Press the FWD and REV Buttons to adjust the hour. .

  • Page 7: Docking And Playing An Ipod

    Docking an iPod 1. Locate the numbered Bracket that fits the iPod that will be docked. Each included Bracket has a number on it, indicating which iPod model that bracket is compatible with. See the separate bracket chart page to identify which bracket is needed.

  • Page 8: Tuning The Am/Fm Radio & Saving Radio Stations To The Units Memory

    Tuning the AM/FM Radio 1. Turn the unit on by pressing the Power Button. . Press the Function Button to switch the unit to radio mode. An AM or FM will appear on the LCD Display to indicate radio mode. .

  • Page 9: Composite Video Output & Stereo Rca Output

    Composite Video Output & Stereo RCA Output When connecting two products using an RCA Cable, match the colored ports with the same colored connection. (Red to Red, White to White, and Yellow to Yellow) 1. Connect the RCA Cable to the Stereo RCA Outputs and RCA Composite Video Output on the unit, and to the audio/video inputs on the Television.

  • Page 10: Using The Stereo Rca Inputs

    Using the Stereo RCA Inputs When connecting two products using an RCA Cable, match the colored ports with the same colored connection. (Red to Red, White to White, and Yellow to Yellow) 1. Connect a stereo RCA cable (not included) to the Stereo RCA Inputs on the unit and the stereo RCA outputs on a television or sound system.

  • Page 11: Mounting The Unit To A Wall

    Mounting the Unit to a Wall 1. Decide whether or not to use spacers behind the wall mount brackets. The included spacers can be used in combination to adjust unit’s distance from the wall in order to match a mounted Flat-Panel TV. The spacers are 1/4”, 1/2”, 3/4”, 1”.

  • Page 12: Location Of Controls & Control Definitions

    Location of Controls...
  • Page 13 Control Definitions 1 Motorized Dock for iPod The Motorized Dock for iPod automatically opens and closes when the Eject Button is pressed. 2 Volume Buttons Press the Volume Buttons to adjust the volume of the audio output from the unit 3 Tuning Buttons Press the Tuning Buttons to adjust the AM or FM radio frequency.
  • Page 14 Location of Controls RESET...
  • Page 15 Control Definitions 10 AM Antenna Connection Connect an AM antenna to the AM Antenna Connection to receive AM radio reception on the unit. 11 Composite Video Output Use the Composite Video Output to connect the unit to a television, and view videos or photos from a docked iPod on the connected television.

  • Page 16: Location Of Controls

    Location of Controls MUTE FUNCTION REPEAT/ST MENU VOLUME CLOCK VIEW/ SLEEP DIMMER TREBLE BASS TIME SET...
  • Page 17 Control Definitions 17 Mute Button Press the Mute Button to decrease the audio output volume on the unit entirely. 18 Power Button Press the Power Button to turn the unit off and on. 19 Number Keypad Use the Number Keypad to tune the AM or FM radio to a specific station. 20 Album Buttons Press the Album Buttons to cycle through albums on a docked iPod.

  • Page 18: Location Of Controls

    Location of Controls MUTE FUNCTION REPEAT/ST MENU VOLUME CLOCK VIEW/ SLEEP DIMMER TREBLE BASS TIME SET...
  • Page 19 Control Definitions 30 Playlist Button Press the Playlist Buttons to cycle through playlists on a docked iPod. 31 Clock View/Dimmer/Random Button Press the Clock View Button to view the clock when in radio mode. • Press and hold the Dimmer Button to dim the LCD Display. •...

  • Page 20: Service Information

    SRS Labs, Inc. All other trademarks appearing herein are the property of their respective owners. Para descargar este manual de instrucción en inglés, español, o francés visite la sección de la ayu- da en www.ilive.net. Pour télécharger manuel d’instruction en anglais, espagnol,...
